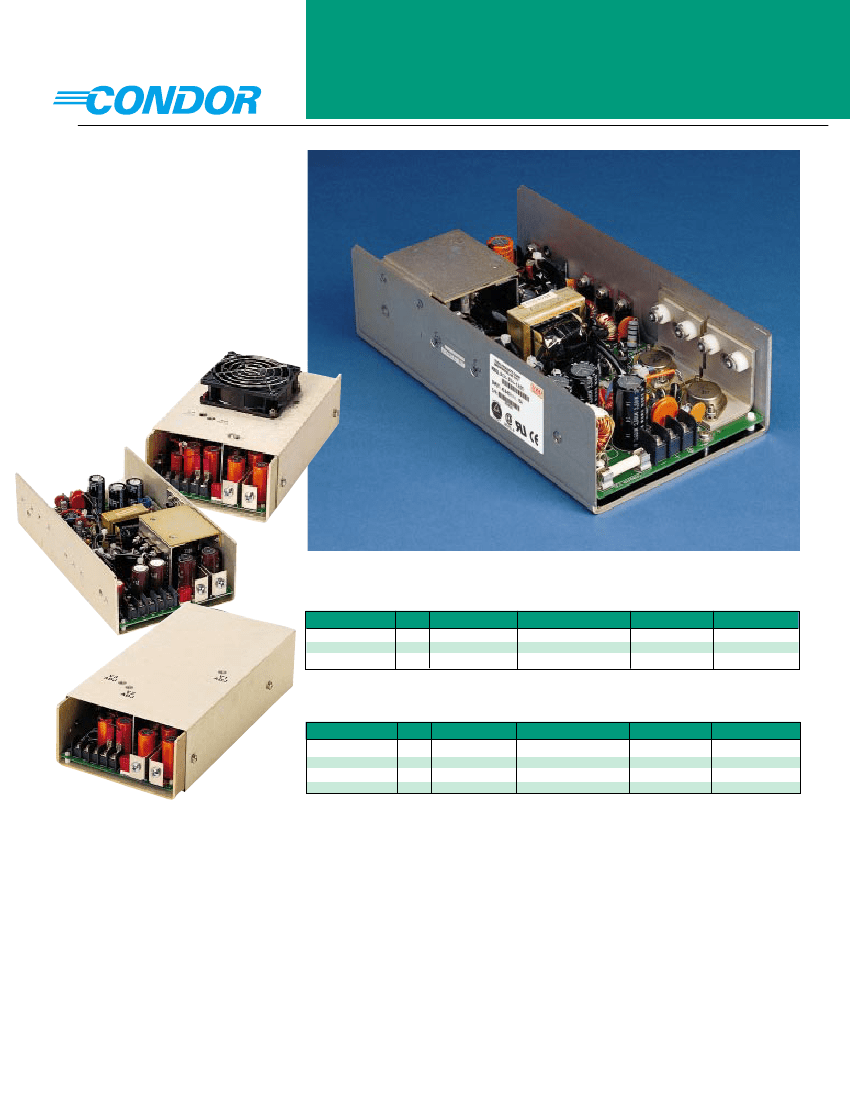

250, 275, 350 WATTS
MULTIPLE OUTPUT
24/28 AND 48 VDC INPUT
DCT-250
DBX-275
DCT-350
DCX-350
Option F
STANDARD DBX SERIES
24/28 VDC INPUT – MULTIPLE OUTPUT
MODEL
DBX-273-0512
DBX-274-1205
DBX-274-1224
PWR
275
275
275
OUTPUT #1
+5V @ 50A
+5V @ 50A
+5V @ 50A
OUTPUT #2
+12V @ 8/12A pk
+12V @ 8/12A pk
+12V @ 8/12A pk
OUTPUT #3
-12V @ 4A
-12V @ 4A
-12V @ 4A
OUTPUT #4
5.2V @ 2 A
24V @ 1.5A
STANDARD DCT, DCX SERIES
48 VDC INPUT – MULTIPLE OUTPUT
MODEL
DCT-253-0512
DCT-353-0512
DCX-353-0512
DCX-354-1205
PWR
250
350
350
350
OUTPUT #1
+5V
+5V
+5V
+5V
@
@
@
@
30A
45A
50A
50A
OUTPUT #2
+12V
+12V
+12V
+12V
@
@
@
@
5A
6A
8/12A pk
8/12A pk
OUTPUT #3
-12V
-12V
-12V
-12V
@
@
@
@
5A
6A
4A
4A
OUTPUT #4
Option C
5.2V @ 2A
Featuring:
•
Over 3 watts/in
3
power density
•
Meets international safety
requirements
•
All outputs regulated ±1%
•
High peak currents for motor
starting
•
System air and self-cooling options
•
Available in dual AC input range
These series are particularly suitable for
critical, “can’t fail”; mobile; or transportable
systems. All models share the same foot-
print and can include current sharing for
redundancy (consult factory for details).
Optional DC power fail, covers, and
fan/cover assemblies are available.
These series are form-fit compatible with
the 9” SC, MAX, MTC, and MPS Series
Condor D.C. Power Supplies, Inc., A subsidiary of SL Industries, Inc. 805-486-4565 • (800) 235-5929 Fax: (805) 487-8911 http://www.condorpower.com
250, 275, 350 WATTS
9”x 5”x 2.5”
DCT-250,350, DBX-275, DCX-350
DBX, DCT, DCX
3.2 lbs - 1.5 kgs
DBX, DCT, DCX
with Option F
3.8 lbs - 1.7 kgs

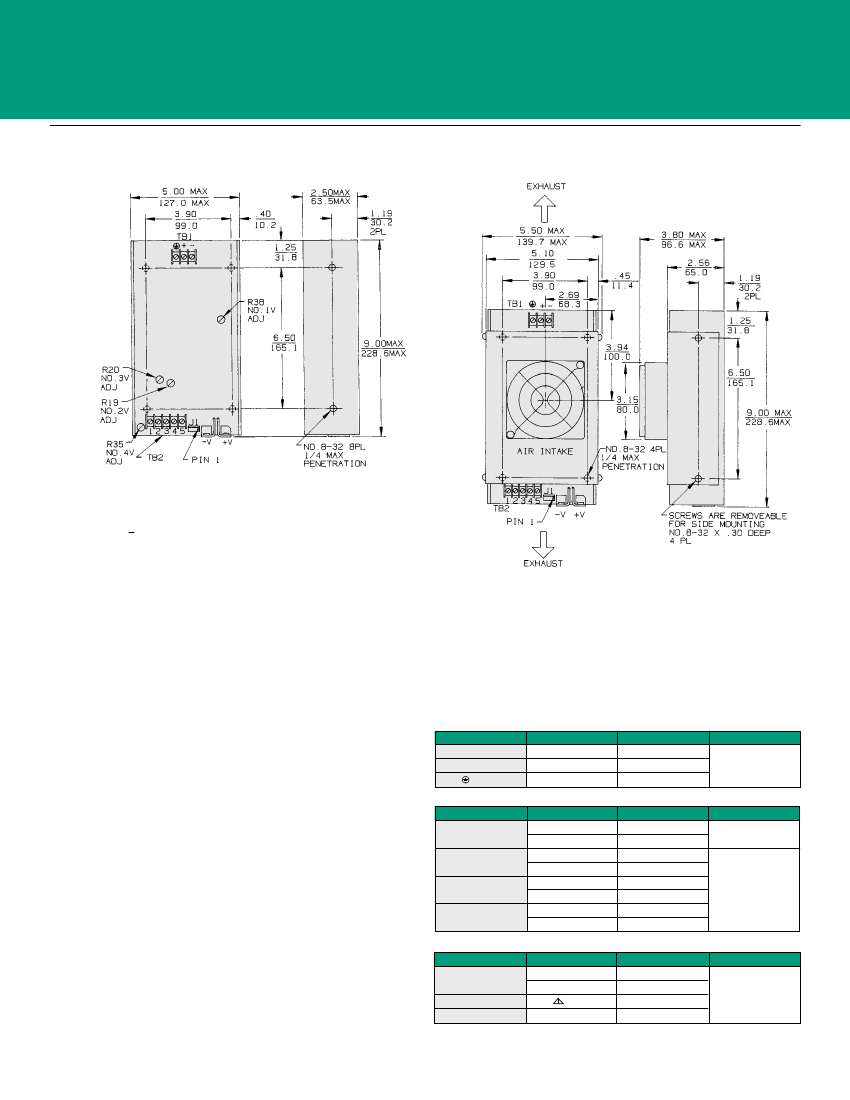

Dimensions:
Inches
Millimeters
SPECIFICATIONS: ALL MODELS
INPUT
DC Input:
DB, DBT, and DBX models 20-32 Vdc range, internally fused for 20 A. DC, DCT,
DCX, and DPS models 40.8-60 Vdc range, internally fused for 15 A.
Efficiency:
70 to 75% typical.
OUTPUT
Adjustability:
All outputs user adjustable ±5% minimum.
Line & Load Reg:
±1% over DC input range and 0 to 100% load change, except DPS models
hold ±3% on +5 V output (preprogrammed slope). Multiple output units require a
minimum load of 10% on the +5 V output when drawing full load on the auxiliary outputs.
Ripple & Noise:
Less than 1% p-p or 100 mV, whichever is greater.
Remote Sense
(Output #1): Compensates for 250 mV total line drop. Open sense lead
protection. (See Redundancy, below.)
Temperature Coefficient:
0.02% per degree C.
Stability:
0.1% over 8 hours after 30 minutes warm-up.
Transient Response:
Output voltage returns to within 1% in less than 500 µs for a 50% load
change. Peak transient does not exceed 5%.
Overload Protection:
All outputs are protected against overload and short circuit. Automatic
recovery upon removal of fault.
Overvoltage Protection
(Output #1): Protects load against power supply induced overvoltage.
Trip point is factory set so that output voltage cannot exceed 136% of nominal.
Peak Output Current:
Dual current ratings define continuous and peak currents. The peak
current shown can be delivered for a maximum period of 30 seconds.
Remote Inhibit:
Contact closure to the negative sense line drops output power to nominal
zero.
Redundancy (DPS only):
External OR-ing diodes and slope program current sharing on
output #1 provide “N+1” capability. Remote sense (+S) compensates for additional 0.6 V
diode voltage drop. Current sharing remains within 10% of the unit’s full output current
rating.
Reverse Voltage:
Protected against reverse voltage up to supply current rating.
ENVIRONMENTAL
Thermal Protection:
Shuts down power supply if overheated. Automatic recovery.
Temperature Range:
0° to 50°C at full ratings.
Safety Agencies:
Most models are approved to UL1950; CSA 22.2 #234; IEC 950 and TÜV
EN60950, Class 1 SELV., CE 72/23/EEC/93/68EEC (low voltage directive).
Conducted RFI:
Meets FCC Part 15, Subpart J, Class A; EN55022 Class B; CISPR 22 Class B.
Cooling:
30 CFM required to achieve full ratings.
Output Isolation:
Isolated from ground 50 Vdc, except 100 Vdc for models rated 48 Vdc
output.
OPTIONS:
Option “C”, Cover:
Limits contact with power supply interior.
Option “F”, Fan/Cover Assembly:
Cover with integral ball-bearing fan provides proper cooling
to achieve full ratings at 50°C ambient temperature.
Option “G”, DC Power Good:
Provides a TTL “1” open collector when output #1 is above
4.6 V nominal.
Option “V”, Fan/Cover Assembly:
Low profile, end venting cover with integral
ball-bearing fan.
Consult factory for other available options.
DC INPUT
FUNCTION
TB1- (– )
TB1- ( + )
TB1- ( )
–48
Vdc
–48 Vdc Input
–48 Vdc Return
Safety Ground
+24
Vdc
+24 Vdc Return
+24 Vdc Input
Safety Ground
CONNECTOR
Barrier strip
#6-32 screws
3/8” centers
DC OUTPUT
FUNCTION
Output #1
Output #2
(If provided)
Output #3
(If provided)
Output #4
(If provided))
LOCATION
Terminal marked +V
Terminal marked -V
TB2-3
TB2-4
TB2-5
TB2-4
TB2-1
TB2-2
NOTES
Main Output
Rtn (Common)
Rtn (Common)
Rtn (Common)
(+) Floating Output
(–) Floating Output
CONNECTOR
Bus bars
#10-32 screws
Barrier strip
#6-32 screws
3/8” centers
STATUS AND CONTROL
FUNCTION
Remote Sense
DC Power Good*
Inhibit
*Optional function
LOCATION
J1-1(+ S)
J1-2 (– S)
J1-3
J1-4 (IH)
NOTES
Output #1 Sense
Output #1 Sense Rtn
Reference to J1-2
Short to J1-2
CONNECTOR
AMP MTA type
#640456-4 pin
header (locking)
