DFM400XXM65-F000
Fast Recovery Dual Diode Module
DS5952-1 November 2009 (LN26928)
FEATURES
Low Reverse Recovery Charge
High Switching Speed
Low Forward Volt Drop
Isolated AlSiC Base with AlN Substrates
Dual Diodes can be paralleled for 800A Rating
Lead Free Construction
10.2kV Isolation Package
KEY PARAMETERS
V
RRM
V
F
I
F
I
FM
(typ)
(max)
(max)
6500V
3.6V
400A
800A
7(K)
5(K)
APPLICATIONS
Brake Chopper Diodes
Boost and Buck Circuits
Free-wheel Circuits
Motor Drives
Resonant Converters
Induction Heating
Multi-level Switch Inverters
The DFM400XXM65-F000 is a dual 6500V, fast
recovery diode (FRD) module. Designed for low
power loss, the module is suitable for a variety of high
voltage applications in motor drives and power
conversion.
Fast switching times and low reverse recovery losses
allow high frequency operation, making the device
suitable for the latest drive designs employing PWM
and high frequency switching.
The module incorporates an electrically isolated base
plate and low inductance construction enabling circuit
designers to optimise circuit layouts and utilise
grounded heat sinks for safety
.
6(A)
4(A)
External connection required for a single 800A diode
Fig. 1 Circuit configuration
Outline type code: X
(See Fig. 7 for further information)

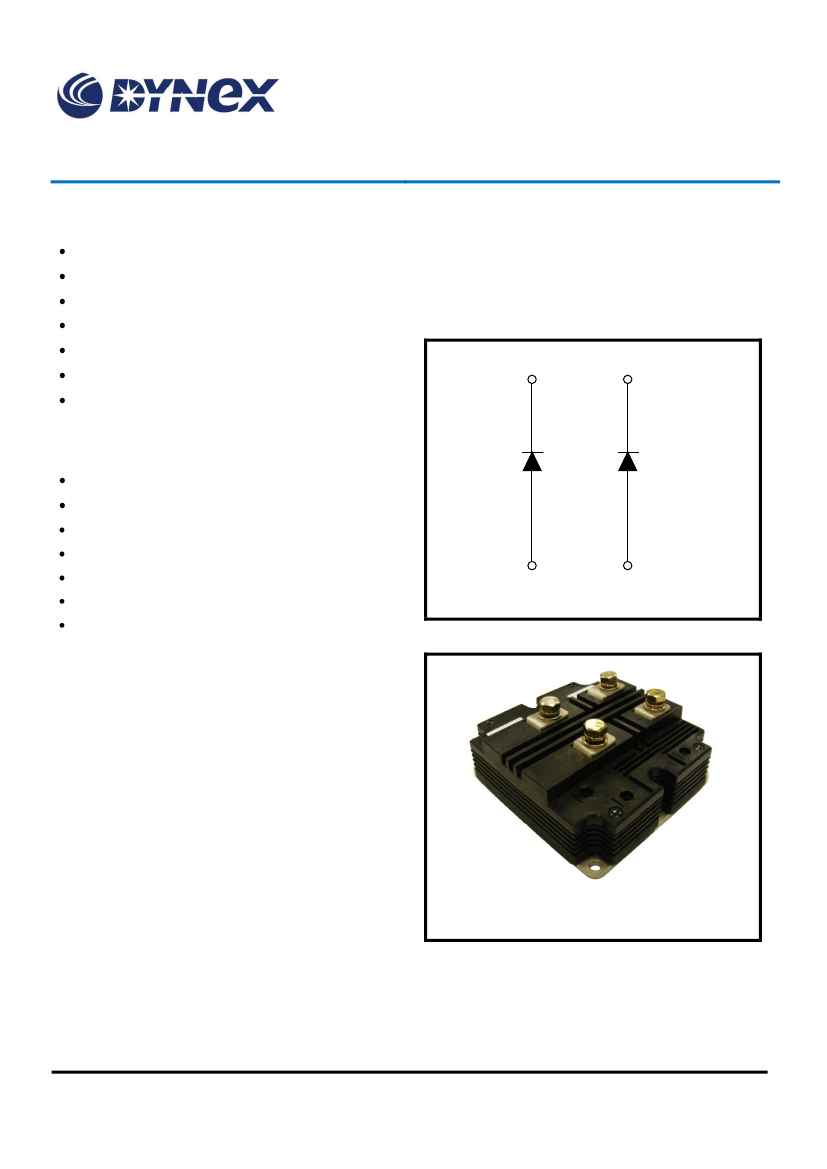

Fig. 2 Package
ORDERING INFORMATION
Order As:
DFM400XXM65-F000
Note: When ordering, please use the complete part
number
1
/
6
www.dynexsemi.com
DFM400XXM65-F000
ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under ‘Absolute Maximum Ratings’ may cause permanent damage to the device. In
extreme conditions, as with all semiconductors, this may include potentially hazardous rupture of the package.
Appropriate safety precautions should always be followed. Exposure to Absolute Maximum Ratings may affect
device reliability.
T
case
= 25°C unless stated otherwise
Symbol
Parameter
T
j
= 125°C
V
RRM
Repetitive peak reverse voltage
T
j
= 25°C
T
j
= -40°C
I
F
I
FM
It
P
max
V
isol
Q
PD
2
Test Conditions
Max.
6500
6300
5800
400
800
97
3300
10200
10
Units
V
V
V
A
A
kA s
W
V
pC
2
Forward current (per arm)
Max. forward current
I t value fuse current rating
Max. power dissipation
Isolation voltage – per module
Partial discharge – per module
2
DC, T
case
= 75°C, T
j
= 125°C
T
case
= 115°C, t
p
= 1ms
V
R
= 0, t
p
= 10ms, T
j
= 125°C
T
case
= 25°C, T
j
= 125°C
Commoned terminals to base plate.
AC RMS, 1 min, 50Hz
IEC1287, V
1
= 6900V, V
2
= 5100V, 50Hz RMS
THERMAL AND MECHANICAL RATINGS
Internal insulation material:
Baseplate material:
Creepage distance:
Clearance:
CTI (Comparative Tracking Index):
Symbol
R
th(j-c)
R
th(c-h)
T
j
T
stg
Parameter
Thermal resistance (per arm)
Thermal resistance –
case to heatsink (per module)
Junction temperature
Storage temperature range
Mounting – M6
Screw Torque
Electrical connections – M8
AlN
AlSiC
56mm
26mm
> 600
Test Conditions
Continuous dissipation –
junction to case
Mounting torque 5Nm
(with mounting grease)
Min
-
-
-40
-40
-
-
Typ.
-
-
-
-
-
-
Max
30
8
125
125
5
10
Units
°C/kW
°C/kW
°C
°C
Nm
Nm
2/6
www.dynexsemi.com
DFM400XXM65-F000
STATIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise.
Symbol
I
RM
V
F
L
M
Parameter
Peak reverse current
Forward voltage
I
F
= 400A, T
j
= 125°C
Inductance
-
4.1
40
V
nH
Test Conditions
V
R
= 6500V, T
j
= 125°C
I
F
= 400A
3.6
Min
Typ
Max
40
Units
mA
V
STATIC ELECTRICAL CHARACTERISTICS
T
case
= 25°C unless stated otherwise.
Symbol
L
M
R
INT
Parameter
Module inductance
(externally connected in parallel)
Internal resistance (per arm)
Test Conditions
-
-
Min
Typ
20
370
Max
Units
nH
μΩ
DYNAMIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise
Symbol
Q
rr
I
rr
E
rec
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 400A
V
R
= 3600V
dI
F
/dt = 1300A/μs
Min
Typ.
700
300
1300
Max
Units
μC
A
mJ
T
case
= 125°C unless stated otherwise
Symbol
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 400A
V
R
= 3600V
dI
F
/dt = 1600A/μs
Min
Typ.
1000
370
2000
Max
Units
μC
A
mJ
Q
rr
I
rr
E
rec
3
/
6
www.dynexsemi.com
DFM400XXM65-F000

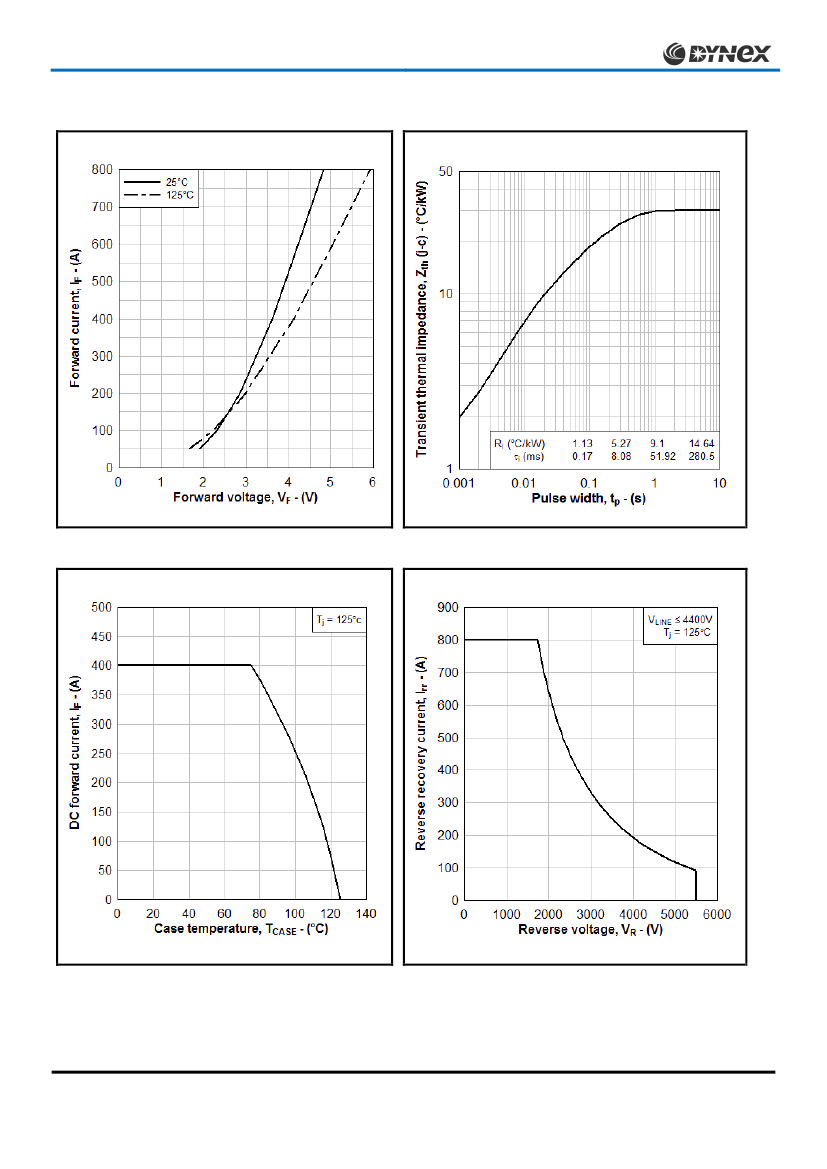

Fig. 3 Diode typical forward characteristics
Fig. 4 Transient thermal impedance
Fig. 5 DC current rating vs case temperature
Fig. 6 Reverse Bias Safe Operating Area (RBSOA)
4/6
www.dynexsemi.com
DFM400XXM65-F000
PACKAGE DETAILS
For further package information, please visit our website or contact Customer Services.
All dimensions in mm, unless stated otherwise.
DO NOT SCALE.
130±0.5
4 x M8
57 ±0.25
57 ±0.25
screwing depth
max. 16
7
140 ±0.5
124 ±0.25
44 ±0.2
18 ±0.1
36.5±0.2
6 xØ 7
61.2 ±0.3
16.5 ±0.2
external connection
7(C)
+1.5
-0.0
5(C)
48
5 ±0.2
6(A)
external connection
4(A)
Nominal Weight: 1100g
Module Outline Type Code:
X

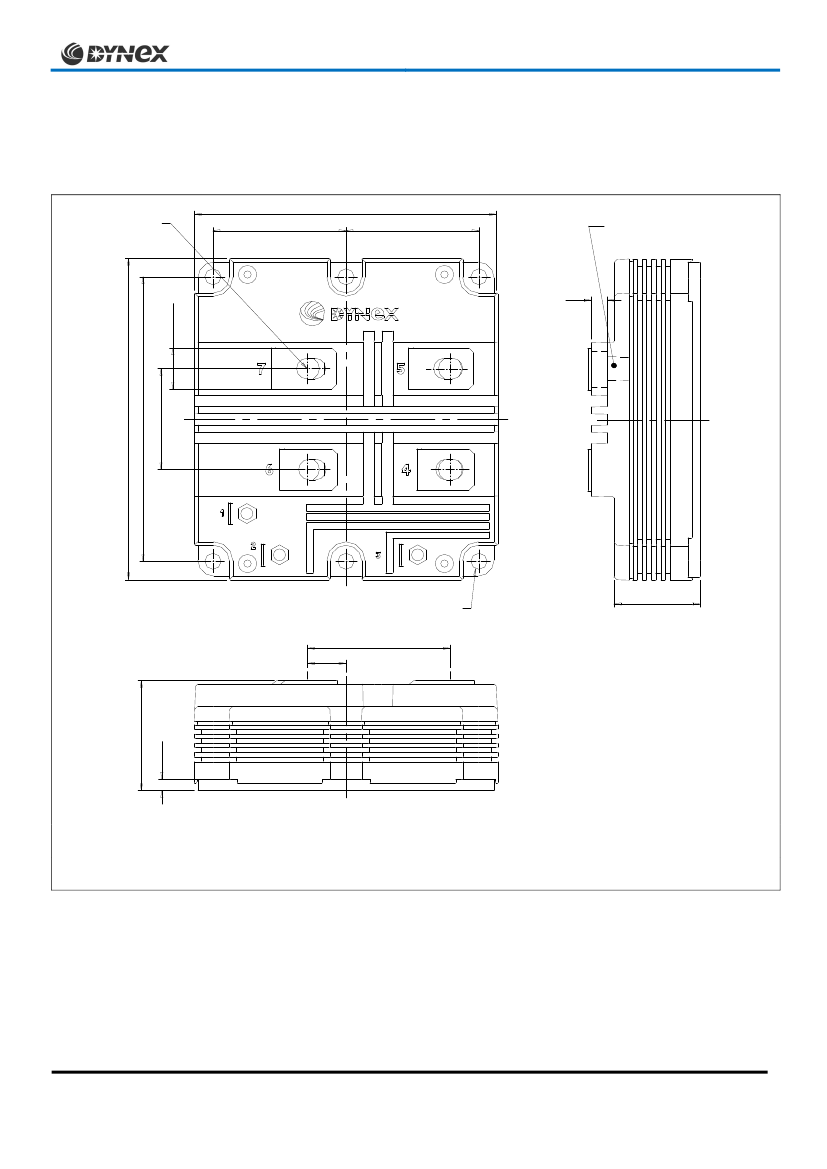

Fig. 7 Module outline drawing
5
/
6
www.dynexsemi.com
