DFM600FXM12-A000
Fast Recovery Diode Module
Replaces DS5478-1.3
DS5478-2 April 2010 (LN26759)
FEATURES
Low Reverse Recovery Charge
High Switching Speed
Low Forward Volt Drop
Isolated AlSiC Base with AlN Substrates
Dual Diodes can be paralleled for 1200A Rating
Lead Free Construction
1(K)
2(K)
KEY PARAMETERS
V
RRM
V
F
I
F
I
FM
(typ)
(max)
(max)
1200V
1.9V
600A
1200A
APPLICATIONS
Chopper Diodes
Boost and Buck Circuits
Free-wheel Circuits
Multi-level Switch Inverters
The DFM600FXM12-A000 is a dual 1200V, fast
recovery diode (FRD) module. Designed for low
power loss, the module is suitable for a variety of high
voltage applications in motor drives and power
conversion.
Fast switching times and low reverse recovery losses
allow high frequency operation, making the device
suitable for the latest drive designs employing PWM
and high frequency switching.
The module incorporates an electrically isolated base
plate and low inductance construction enabling circuit
designers to optimise circuit layouts and utilise
grounded heat sinks for safety
.
3(A)
4(A)
External connection required for a single 1200A diode

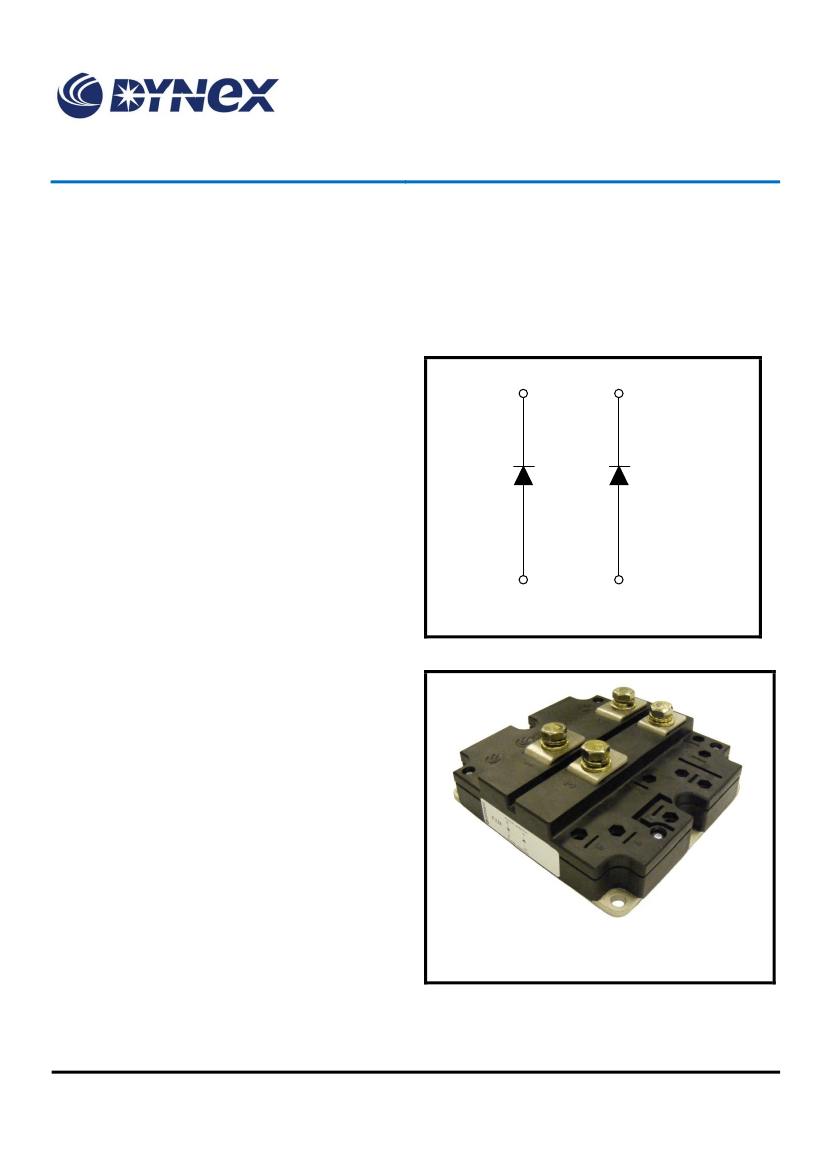

Fig. 1 Circuit configuration
ORDERING INFORMATION
Order As:
DFM600FXM12-A000
Note: When ordering, please use the complete part
number
Outline type code: F
(See Fig. 7 for further information)
Fig. 2 Package
1
/
6
www.dynexsemi.com
DFM600FXM12-A000
ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under ‘Absolute Maximum Ratings’ may cause permanent damage to the device. In
extreme conditions, as with all semiconductors, this may include potentially hazardous rupture of the package.
Appropriate safety precautions should always be followed. Exposure to Absolute Maximum Ratings may affect
device reliability.
T
case
= 25°C unless stated otherwise
Symbol
V
RRM
I
F
I
FM
It
P
max
V
isol
Q
PD
2
Parameter
Repetitive peak reverse voltage
Forward current (per arm)
Max. forward current
I t value fuse current rating
Max. transistor power dissipation
Isolation voltage – per module
Partial discharge – per module
2
Test Conditions
T
j
= 125°C
DC, T
case
= 75°C, T
j
= 125°C
T
case
= 110°C, t
p
= 1ms
V
R
= 0, t
p
= 10ms, T
j
= 125°C
T
case
= 25°C, T
j
= 125°C
Commoned terminals to base plate.
AC RMS, 1 min, 50Hz
IEC1287, V
1
= 1300V, V
2
= 1000V, 50Hz RMS
Max.
1200
600
1200
100
2500
2500
10
Units
V
A
A
kA s
W
V
pC
2
THERMAL AND MECHANICAL RATINGS
Internal insulation material:
Baseplate material:
Creepage distance:
Clearance:
CTI (Comparative Tracking Index):
Symbol
R
th(j-c)
R
th(c-h)
T
j
T
stg
Parameter
Thermal resistance (per arm)
Thermal resistance –
case to heatsink (per module)
Junction temperature
Storage temperature range
Mounting – M6
Screw Torque
Electrical connections – M8
AlN
AlSiC
20mm
10mm
350
Test Conditions
Continuous dissipation –
junction to case
Mounting torque 5Nm
(with mounting grease)
Min
-
-
-
-40
-
-
Typ.
-
-
-
-
-
-
Max
40
8
125
125
5
10
Units
°C/kW
°C/kW
°C
°C
Nm
Nm
2/6
www.dynexsemi.com
DFM600FXM12-A000
STATIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise.
Symbol
I
RM
V
F
L
M
Parameter
Peak reverse current
Forward voltage
I
F
= 600A, T
j
= 125°C
Inductance
2.1
20
2.4
V
nH
Test Conditions
V
R
= 1200V, T
j
= 125°C
I
F
= 600A
1.9
Min
Typ
Max
15
2.2
Units
mA
V
STATIC ELECTRICAL CHARACTERISTICS
T
case
= 25°C unless stated otherwise.
Symbol
L
M
Parameter
Module inductance
(externally connected in parallel)
Test Conditions
Min
Typ
15
Max
Units
nH
DYNAMIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise
Symbol
Q
rr
I
rr
E
rec
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 600A
V
R
= 600V
dI
F
/dt = 4500A/μs
Min
Typ.
100
400
40
Max
Units
μC
A
mJ
T
case
= 125°C unless stated otherwise
Symbol
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 600A
V
R
= 600V
dI
F
/dt = 4200A/μs
Min
Typ.
150
475
70
Max
Units
μC
A
mJ
Q
rr
I
rr
E
rec
3
/
6
www.dynexsemi.com
DFM600FXM12-A000

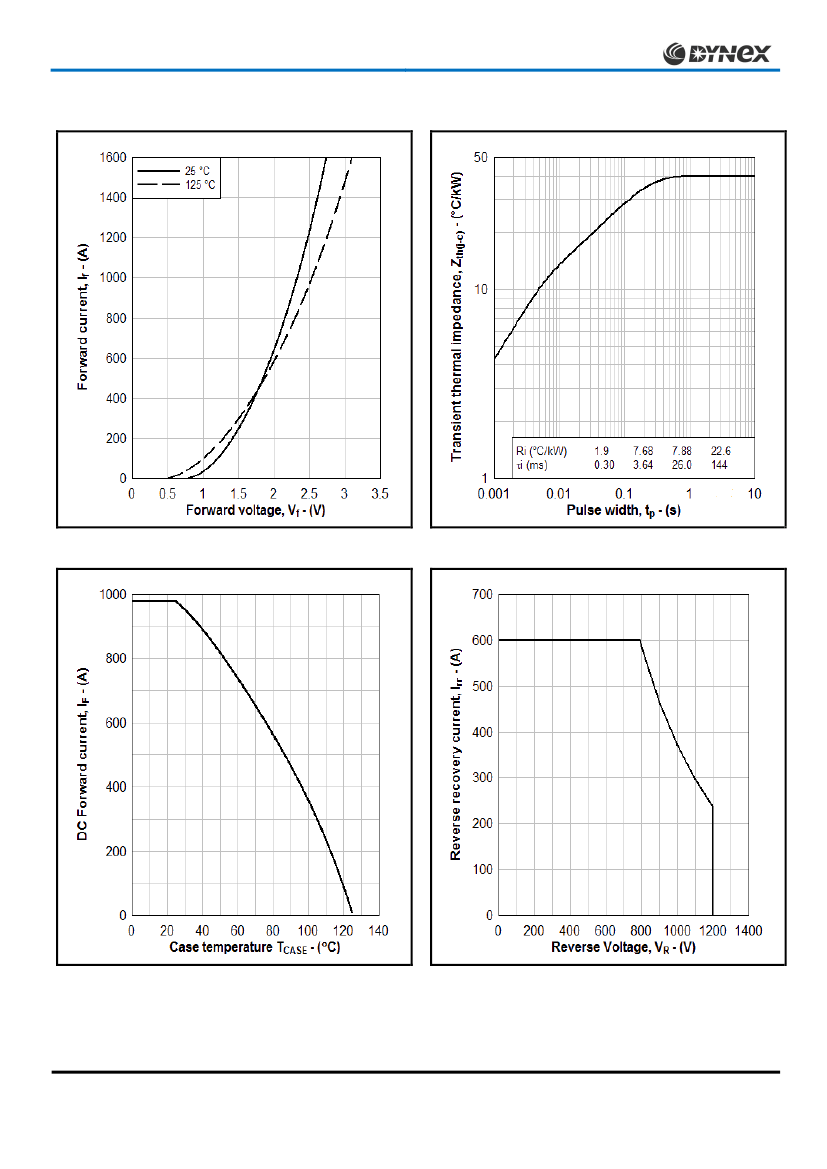

Fig. 3 Diode typical forward characteristics
Fig. 4 Transient thermal impedance
Fig. 5 DC Current rating vs case temperature
Fig. 6 RBSOA
4/6
www.dynexsemi.com
DFM600FXM12-A000
PACKAGE DETAILS
For further package information, please visit our website or contact Customer Services.
All dimensions in mm, unless stated otherwise.
DO NOT SCALE.
130±0.5
114 ±0.1
4 x M8
57 ±0.25
57 ±0.25
29.2 ±0.5
screwing depth
max 16
140 ±0.5
124 ±0.25
30 ±0.2
11 ±0.2
2.5 ±0.2
3 x M4
16 ±0.2 18.5 ±0.2
6x
7
35 ±0.2
14.5±0.2
5.25±0.3
28 ±0.5
screwing depth
max 8
61.4 ±0.3
18 ±0.2
external connection
1(C)
2(C)
38
+1.5
-0.0
3(A)
external connection
4(A)
Nominal Weight: 900g
Module Outline Type Code:
F

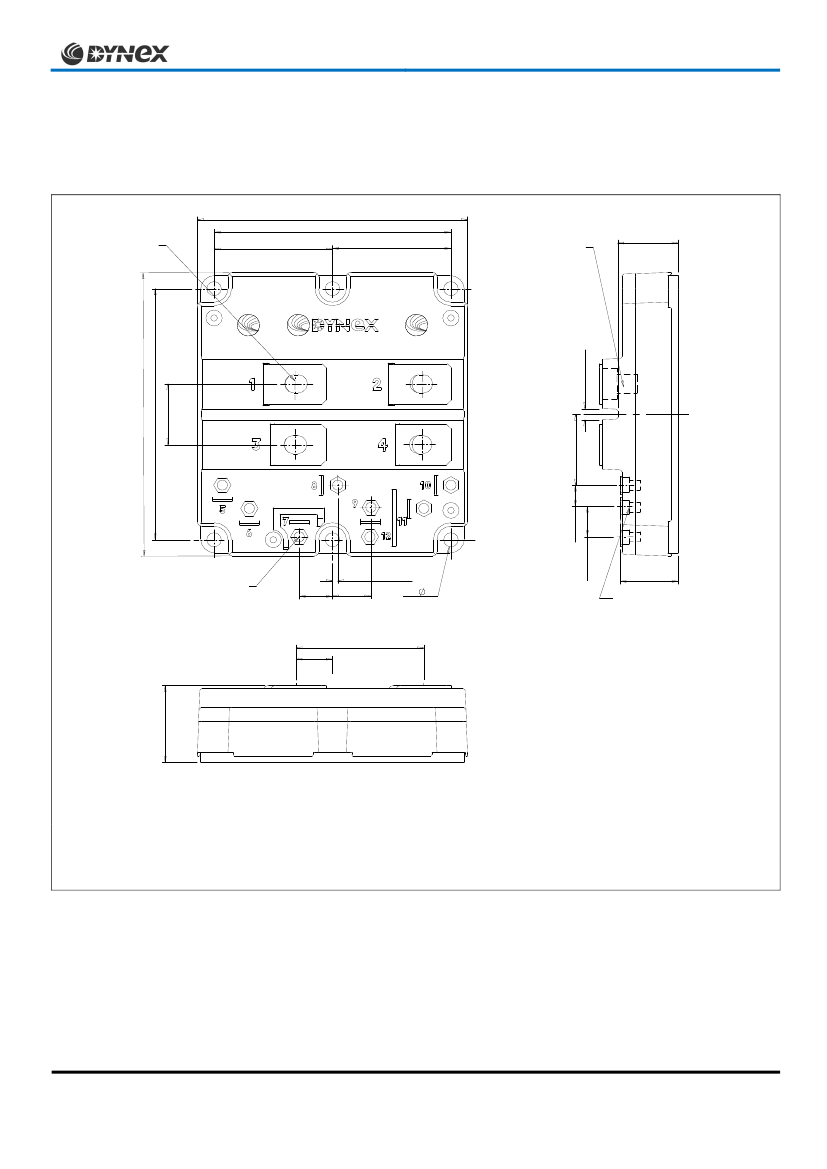

Fig. 7 Module outline drawing
5
/
6
www.dynexsemi.com
