DFM600NXM45-F000
Fast Recovery Diode Module
Replaces DS5882-1.0
DS5882-2 April 2011 (LN28309)
FEATURES
Low Reverse Recovery Charge
High Switching Speed
Low Forward Volt Drop
Isolated AlSiC Base With AlN Substrates
Dual Diodes Can Be Paralleled For 1200A Rating
Lead Free Construction
KEY PARAMETERS
V
RRM
V
F
I
F
I
FM
(typ)
(max)
(max)
4500V
3.0V
600A
1200A
4(K)
2(K)
APPLICATIONS
Chopper Diodes
Boost and Buck Converters
Free-wheel Circuits
Motor Drives
Resonant Converters
Induction Heating
Multi-level Switch Inverters
External connection required for a single 1200A diode
3(A)
1(A)
The DFM600NXM45-F000 is a dual 4500V, fast
recovery diode (FRD) module. Designed for low
power loss, the module is suitable for a variety of high
voltage applications in motor drives and power
conversion.
Fast switching times and low reverse recovery losses
allow high frequency operation, making the device
suitable for the latest drive designs employing PWM
and high frequency switching.
The module incorporates an electrically isolated base
plate and low inductance construction enabling circuit
designers to optimise circuit layouts and utilise
grounded heat sinks for safety
.
Fig. 1 Circuit configuration
ORDERING INFORMATION
Order As:
Outline type code: N
(See Fig. 7 for further information)
Fig. 2 Package
DFM600NXM45-F000
Note: When ordering, please use the complete part
number
1
/
6
www.dynexsemi.com
DFM600NXM45-F000
ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under ‘Absolute Maximum Ratings’ may cause permanent damage to the device. In
extreme conditions, as with all semiconductors, this may include potentially hazardous rupture of the package.
Appropriate safety precautions should always be followed. Exposure to Absolute Maximum Ratings may affect
device reliability.
T
case
= 25°C unless stated otherwise
Symbol
V
RRM
I
F
I
FM
It
P
max
V
isol
Q
PD
2
Parameter
Repetitive peak reverse voltage
Forward current (per arm)
Max. forward current
I t value fuse current rating
Max. power dissipation
Isolation voltage – per module
Partial discharge – per module
2
Test Conditions
T
j
= 125°C
DC, T
case
= 80°C
T
case
= 115°C, t
p
= 1ms
V
R
= 0, t
p
= 10ms, T
j
= 125°C
T
case
= 25°C, T
j
= 125°C
Commoned terminals to base plate.
AC RMS, 1 min, 50Hz
IEC1287, V
1
= 3500V, V
2
= 2600V, 50Hz RMS
Max.
4500
600
1200
192
4160
6000
10
Units
V
A
A
kA s
W
V
pC
2
THERMAL AND MECHANICAL RATINGS
Internal insulation material:
Baseplate material:
Creepage distance:
Clearance:
CTI (Comparative Tracking Index):
Symbol
R
th(j-c)
R
th(c-h)
T
j
T
stg
Parameter
Thermal resistance (per arm)
Thermal resistance –
case to heatsink (per module)
Junction temperature
Storage temperature range
Mounting – M6
Screw Torque
Electrical connections – M8
AlN
AlSiC
33mm
20mm
350
Test Conditions
Continuous dissipation –
junction to case
Mounting torque 5Nm
(with mounting grease)
Min
-
-
-40
-40
-
-
Typ.
-
-
-
-
-
-
Max
24
8
125
125
5
10
Units
°C/kW
°C/kW
°C
°C
Nm
Nm
2/6
www.dynexsemi.com
DFM600NXM45-F000
STATIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise.
Symbol
I
RM
V
F
L
M
Parameter
Peak reverse current
Forward voltage
I
F
= 600A, T
j
= 125°C
Inductance
-
3.1
30
V
nH
Test Conditions
V
R
= 4500V, T
j
= 125°C
I
F
= 600A
3.0
Min
Typ
Max
60
Units
mA
V
DYNAMIC ELECTRICAL CHARACTERISTICS – PER ARM
T
case
= 25°C unless stated otherwise
Symbol
Q
rr
I
rr
E
rec
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 600A
V
R
=2250V
dI
F
/dt = 3000A/μs
Min
Typ.
475
700
600
Max
Units
μC
A
mJ
T
case
= 125°C unless stated otherwise
Symbol
Parameter
Reverse recovery charge
Peak reverse recovery current
Reverse recovery energy
Test Conditions
I
F
= 600A
V
R
= 2250V
dI
F
/dt = 3000A/μs
Min
Typ.
850
810
1050
Max
Units
μC
A
mJ
Q
rr
I
rr
E
rec
3
/
6
www.dynexsemi.com
DFM600NXM45-F000

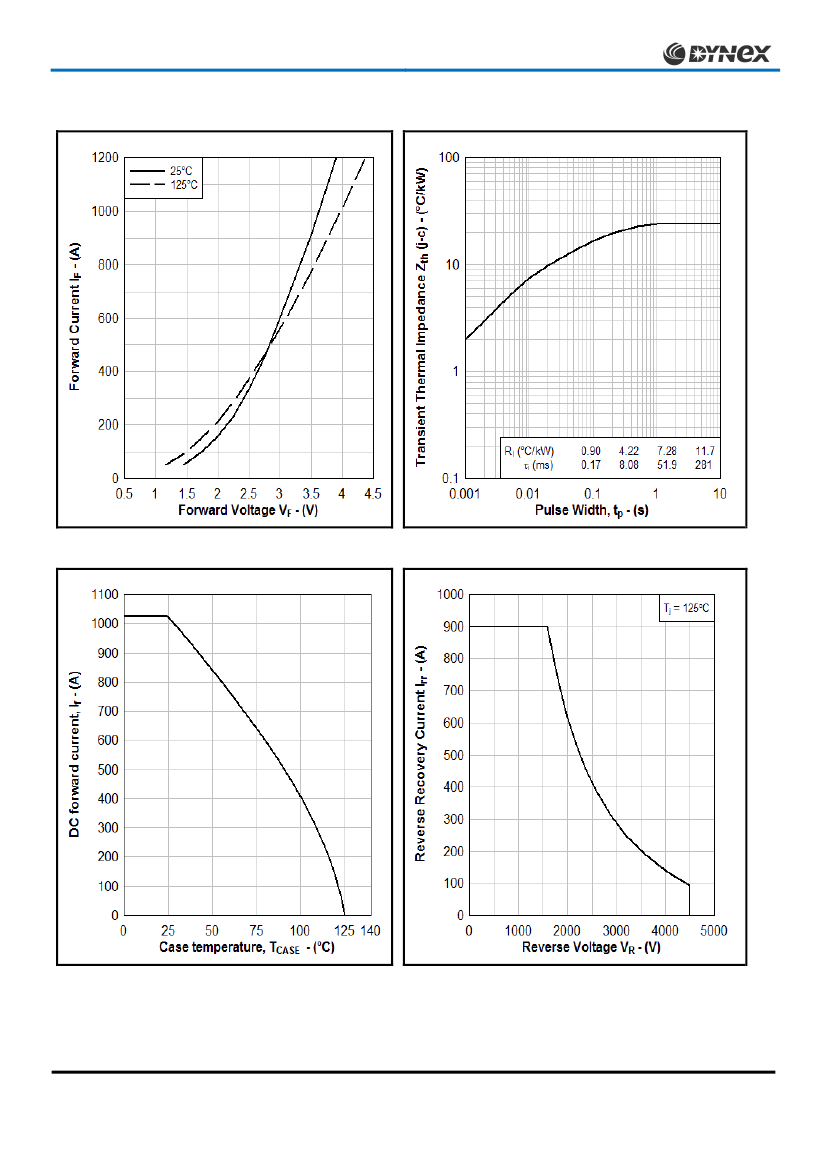

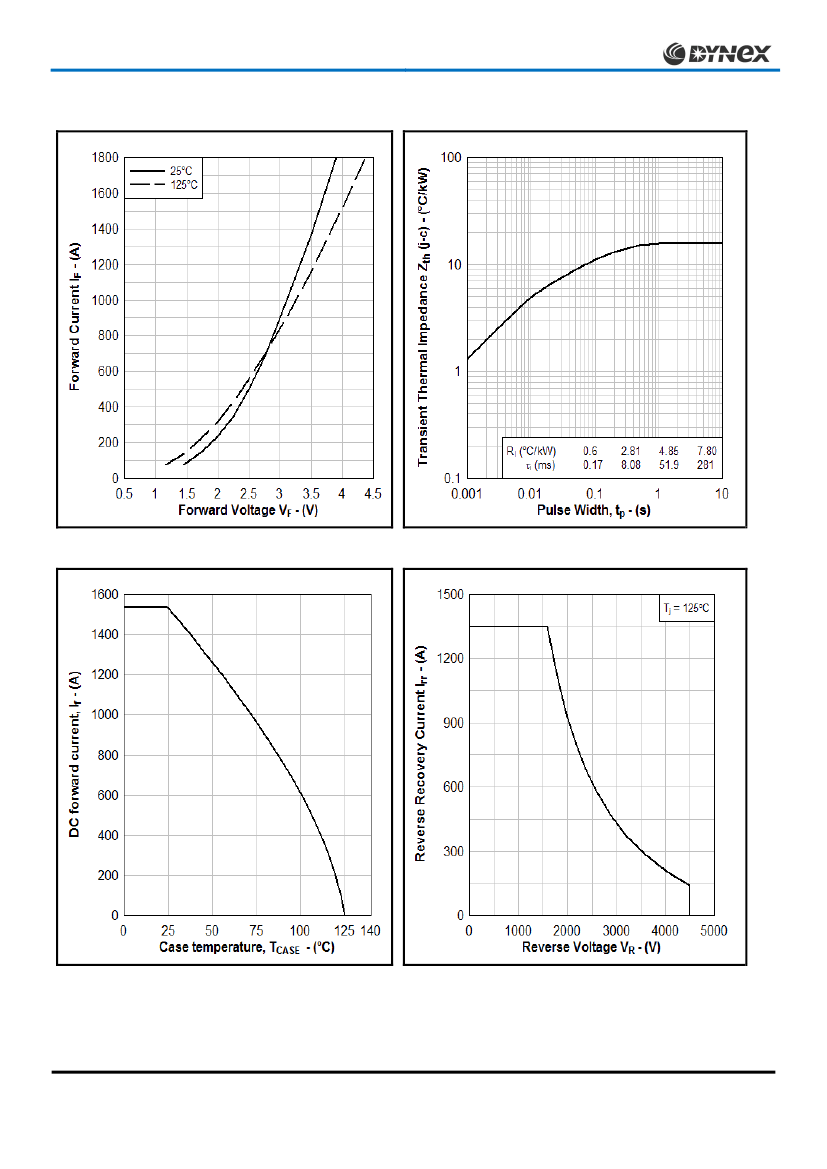

Fig. 3 Diode typical forward characteristics
Fig. 4 Transient thermal impedance
Fig. 5 DC current rating vs case temperature
Fig. 6 Reverse Bias Safe Operating Area (RBSOA)
4/6
www.dynexsemi.com
DFM600NXM45-F000
PACKAGE DETAILS
For further package information, please visit our website or contact Customer Services.
All dimensions in mm, unless stated otherwise.
DO NOT SCALE.
Nominal Weight: 900g
Module Outline Type Code:
N

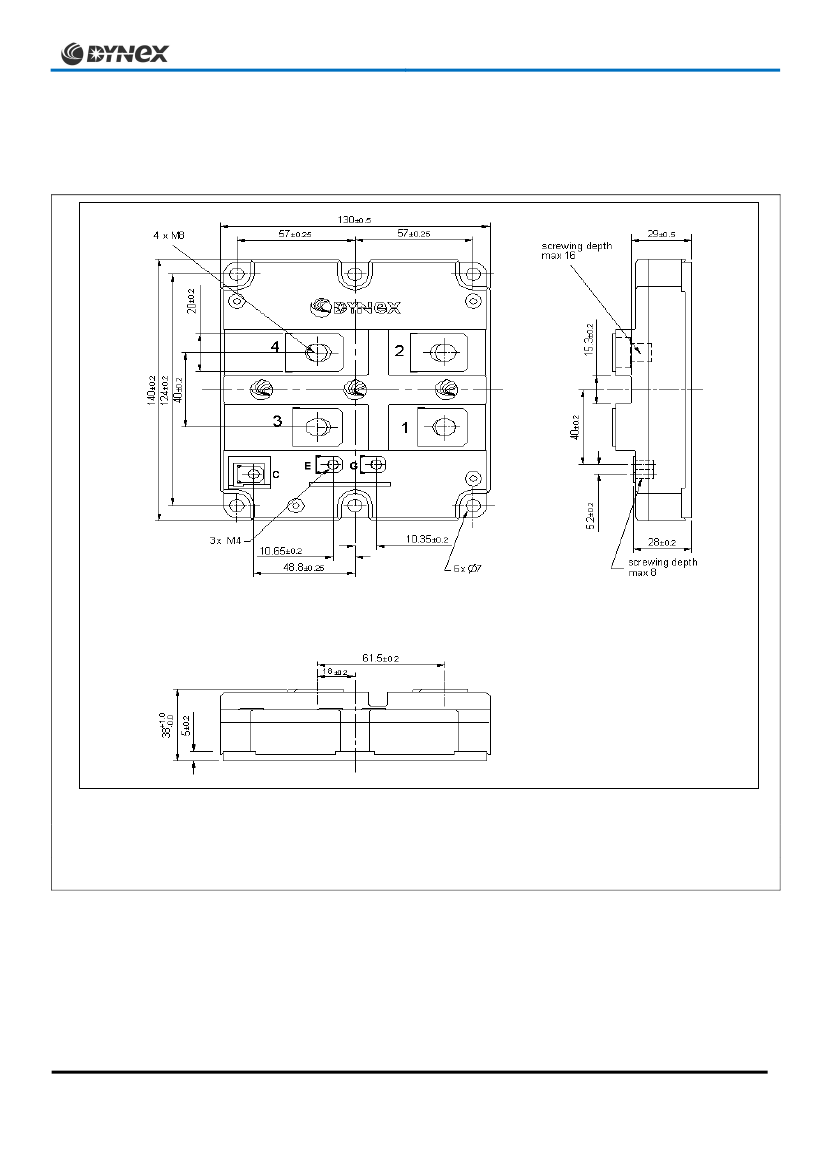

Fig. 7 Module outline drawing
5
/
6
www.dynexsemi.com
