CPCI Series / DPCI Series 200 Watts

CompactPCI

System Power Supplies

CPCI SERIES

200 Watts, Ac Input with PFC

DPCI SERIES

200 Watts, 48 Vdc Input

FEATURES:

EXECUTIVE MEMBER

INPUT FAULT

• 200 W in 3U x 8HP,

• Fully compliant with PICMG CompactPCI

specifications

• Current sharing and internal OR-ing diodes for N+1

redundancy

• High current 5 V and 3.3 V outputs

• CompactPCI

package requires only 15 cfm of external

cooling air

• Universal ac input versions with power factor correction

• 48 Vdc input versions

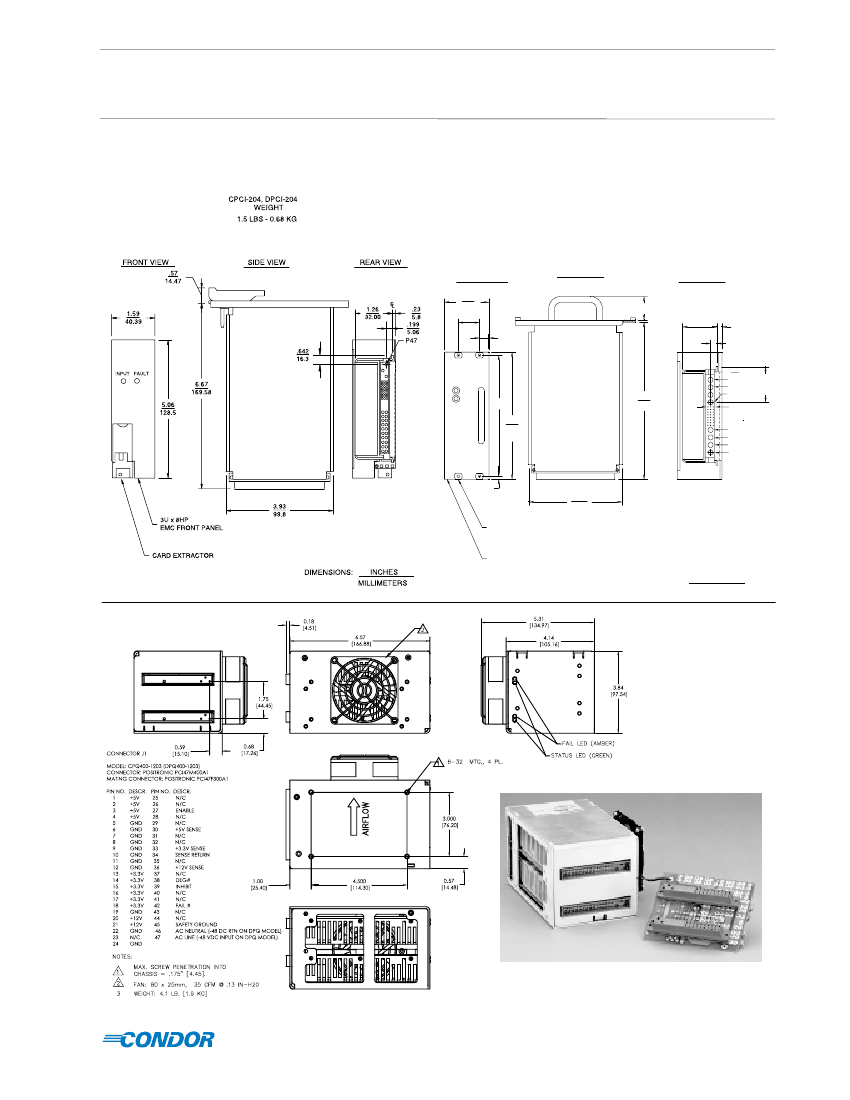

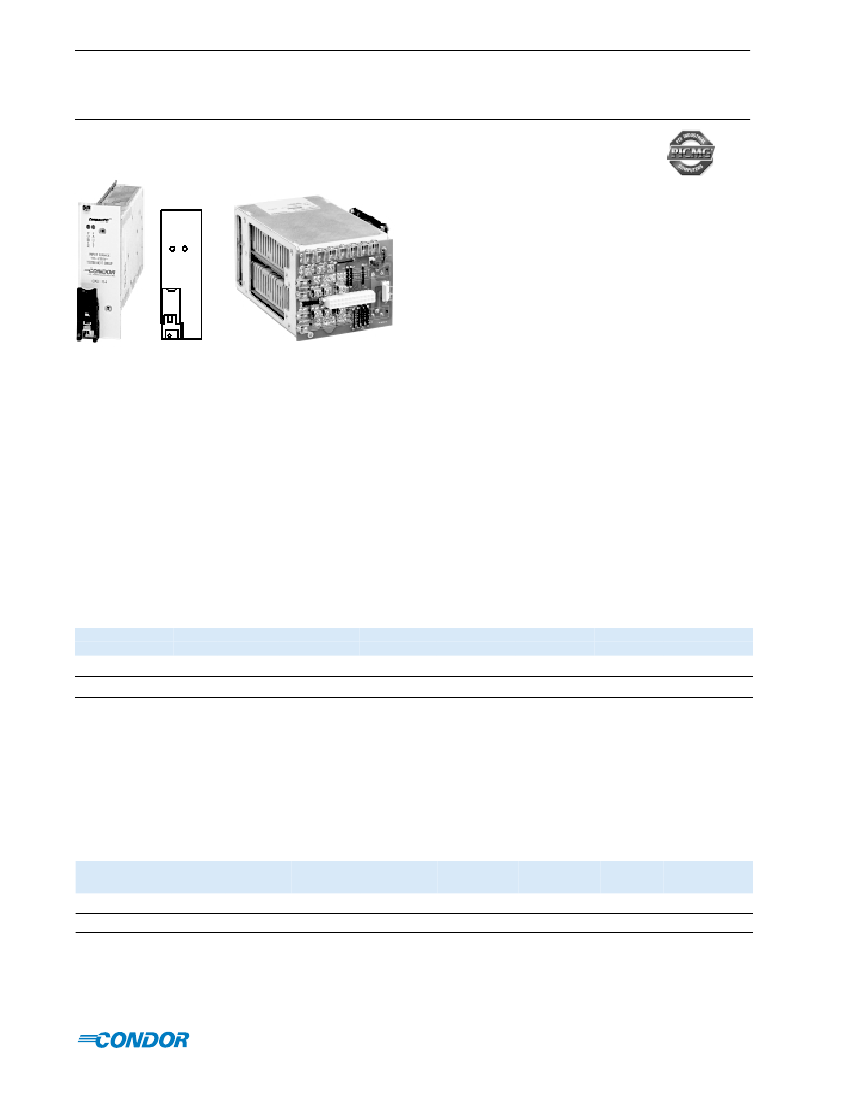

CPQ400

(shown with optional interface board)

CPCI200

3U x 8 HP

The CPCI series (ac input) and DPCI series (dc input) are highly reliable power supplies for CompactPCI systems, which are

increasingly used in communications, industrial, military/aerospace, and other applications. These power supplies offer high power

density in plug-in modules that meet the requirements of the PICMG

power interface specification for CompactPCI systems.

These units may be used as a single power supply for a CompactPCI system, or multiple units may be used in parallel for higher

power capability as needed. In addition, all units include current sharing, internal OR-ing diodes, and a hot plug input/output connector

to offer full hot swap capability and N+1 redundancy. Also, compatible ac and dc input units offer standardization on a single power

supply series for a system mechanical configuration.

The CPQ400 is a power supply assembly that is made up of two CPCI/DCPI 204s. Two supplies are enclosed with a fan to provide an

alternative mounting configuration to the Compact PCI format. This is used for maximizing the number of a customers revenue slots by

relocating the power supply while still keeping the CPCI/DCPI electrical characteristics. These supplies can be used in parallel to

provide 400 watts of output power or as a 200 watt N +1 redundant power supply system. An optional interface board brings the input

and output connectors to convenient screw terminals and Molex type connectors. The individual model ratings depend on the specific

units chosen and you should refer to the standard CPCI/DCPI data sheets. When used as a single 400 watt unit, you can simply

double the single unit specifications.

AC INPUT

Model

CPCI-204-1203

CPCI-204-1203 M

Power

200 W

Connector

47 Pin

DIN "M'

Output 1

5.0 V @ 25 A

Output 2

3.3 V @ 30A

Output 3

Output 4

Min. Load

on V1*

3.0 A

Max. Output

From V1 & V2

35 A

12 V @ 5.5 A -12 V @ 0.5 A

5.0 V @ 25 A 3.3 V @ 25 A

CPCI SERIES SPECIFICATIONS

AC INPUT:

90-264 Vac continuous range, 47 to 63 Hz.

POWER FACTOR:

0.99 typical at full load.

Meets EN61000-3-2 Class A.

INRUSH:

CPCI :

Cold start ac current is less than 27 A at 115 Vac, and 50

A at 230 Vac. Limited by thermistor.

BROWNOUT PROTECTION:

Holds regulation to 85 Vac

(30 seconds maximum)

HOLDUP TIME:

10 ms minimum after removal of power at full load.

EFFICIENCY:

70% typical.

EMI: CONDUCTED RFI

Meets FCC Part 15, Class A; EN55022 Class A.

FAIL# SIGNAL:

TTL compatible signal. Signal goes low under

the following conditions: Outputs #1 or #2 fail; an overcurrent

condition on outputs #1, #2, or #3; an overtemperature shutdown;

an overvoltage shutdown; or an ac input failure (5 ms warning

before outputs shutdown).

DC INPUT

Model

DPCI-204-1203

DPCI-204-1203M

Power

200 W

Connector

47 Pin

DIN "M"

Output 1

Output 2

Output 3

12 V @ 5.5 A

Output 4

-12 V @ 0.5 A

-12 @ 0.5 A

Min. Load

on V1*

3.0 A

Max. Output

From V1 & V2

35 A

5 V @ 25 A 3.3 V @ 30 A

5 V @ 25 A 3.3 V @ 25 A

DPCI SERIES SPECIFICATIONS

DC INPUT:

36-72 Vdc

EFFICIENCY:

75% typical

FAIL# SIGNAL:

TTL compatible signal. Signal goes low under

the following conditions: Any of 4 outputs fail; an overtemperature

shutdown; or an overvoltage shutdown.

100

Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033

800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
