50 Ohm 2 Watts Precision Brass N Male RF Load Up To 18 GHz
TECHNICAL DATA SHEET
50 Ohm 2 Watts Precision Brass N Male RF Load Up To 18 GHz
Configuration
RF Load Design
Connector
Body Style
Precision
N Male
Straight
PE6009
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
DC to 18
50
1.3:1
2
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +125
0.98 [24.89]
0.69 [17.53]
0.08 [36.29]
Weight, lbs [g]
Connector
Type
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
N Male
Beryllium Copper, Gold
Brass, Nickel
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/2-watts-n-male-rf-load-up-to-18-ghz-precision-pe6009-p.aspx
50 Ohm 2 Watts Precision Brass N Male RF Load Up To 18 GHz from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
PE6009 REV
1
PE6009

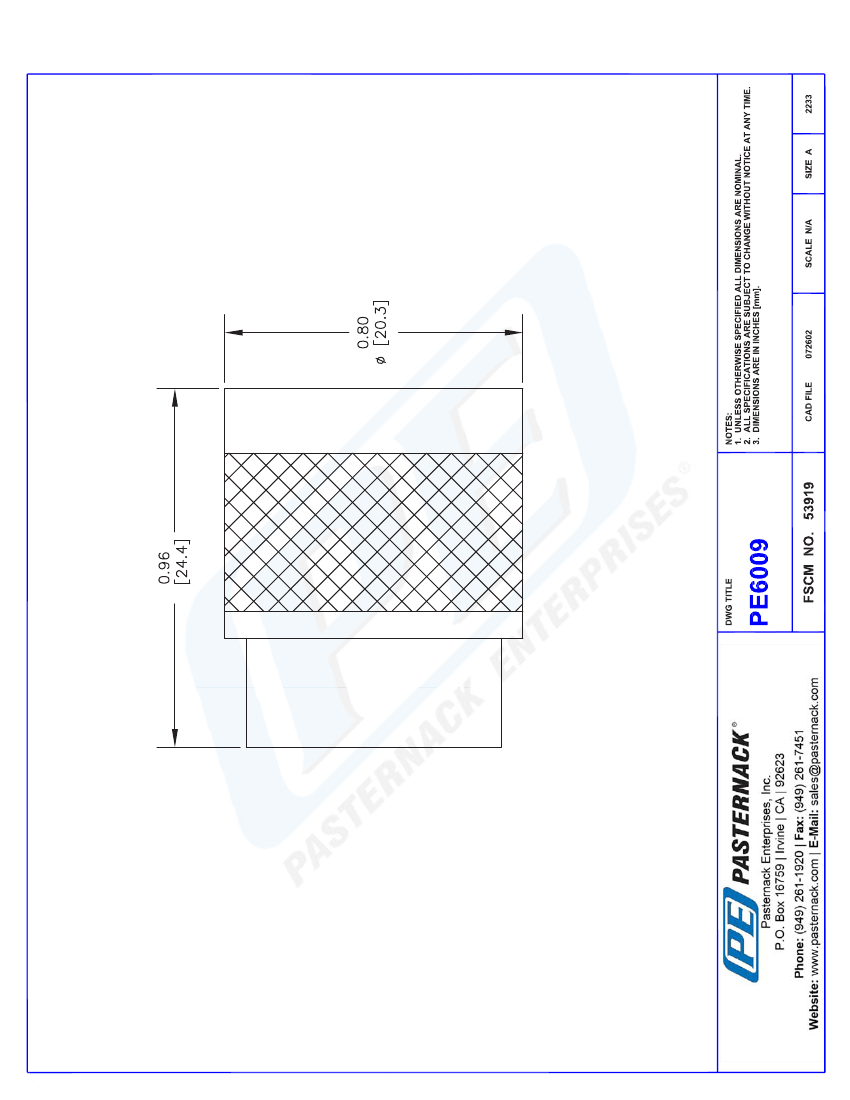

CAD Drawing
50 Ohm 2 Watts Precision Brass N Male RF Load Up To 18 GHz
© 2012 Pasternack Enterprises All Rights Reserved
PE6009 REV
2
