50 Ohm 25 Watts Aluminum Heatsink N
Female RF Load Up To 18 GHz
TECHNICAL DATA SHEET
50 Ohm 25 Watts Aluminum Heatsink N Female RF Load Up To 18 GHz
Configuration
Connector
Connector Specification
N Female
MIL-STD-348
PE6037
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
Peak Power, Watts
Frequency 1
Frequency, GHz
VSWR
Frequency 2
Frequency, GHz
VSWR
Frequency 3
Frequency, GHz
VSWR
DC to 18
50
1.4:1
25
500
DC to 6
1.2:1
6 to 12.4
1.3:1
12.4 to 18
1.4:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +125
3.83 [97.28]
2.65 [67.31]
2.65 [67.31]
Connector
Type
Inner Conductor Material and Plating
Body Material and Plating
N Female
Beryllium Copper, Gold
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 25 Watts Aluminum Heatsink N Female RF Load Up To 18 GHz PE6037
PE6037 REV
1
50 Ohm 25 Watts Aluminum Heatsink N
Female RF Load Up To 18 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE6037
50 Ohm 25 Watts Aluminum Heatsink N Female RF Load Up To 18 GHz from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 25 Watts Aluminum Heatsink N Female RF Load Up To 18 GHz PE6037
URL:
http://www.pasternack.com/25-watts-n-female-rf-load-up-to-18-ghz-pe6037-p.aspx
PE6037 REV
2
PE6037

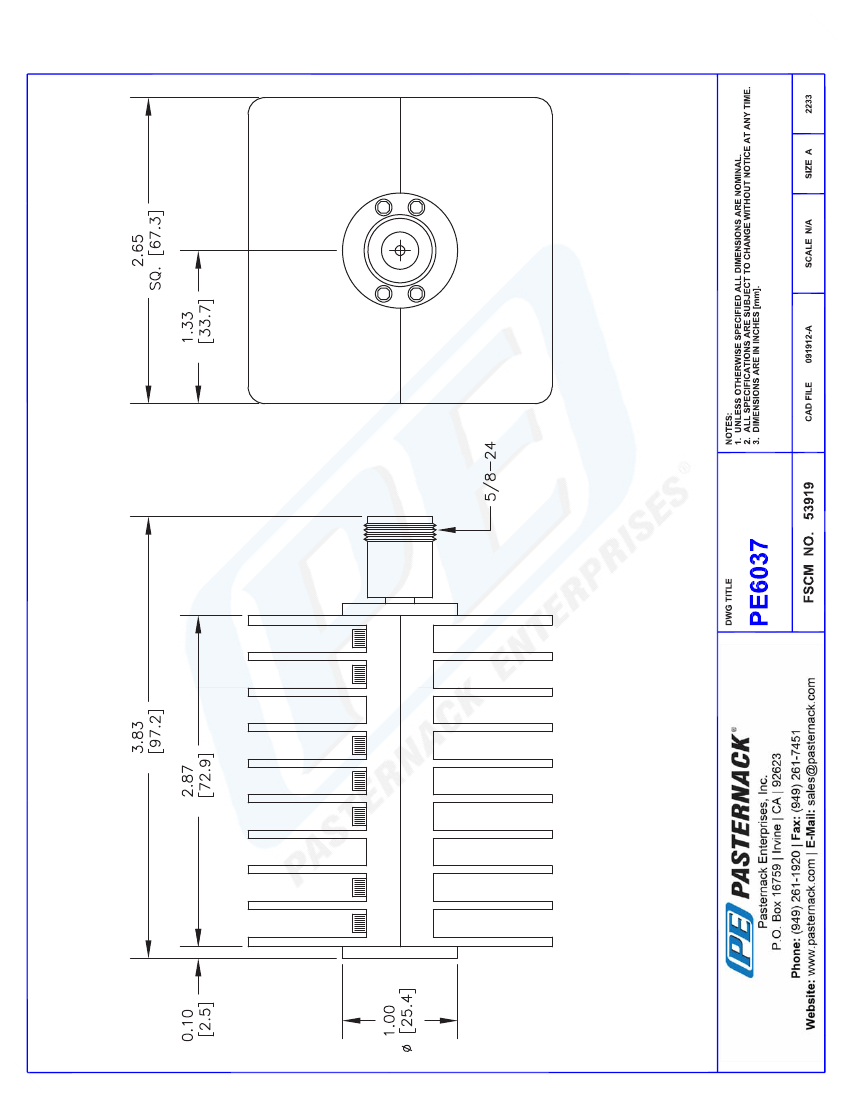

CAD Drawing
50 Ohm 25 Watts Aluminum Heatsink N Female RF Load Up To 18 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE6037 REV
3
