PE6075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PE6075

PE6075: Description50 Ohm 2 Watts Precision Nickel Plated Brass N Male RF Load With Chain Up To 18 GHz; CategoryThe connector The connector; File Size240KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE6075 Overview

50 Ohm 2 Watts Precision Nickel Plated Brass N Male RF Load With Chain Up To 18 GHz

PE6075 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Total number of contacts	1
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

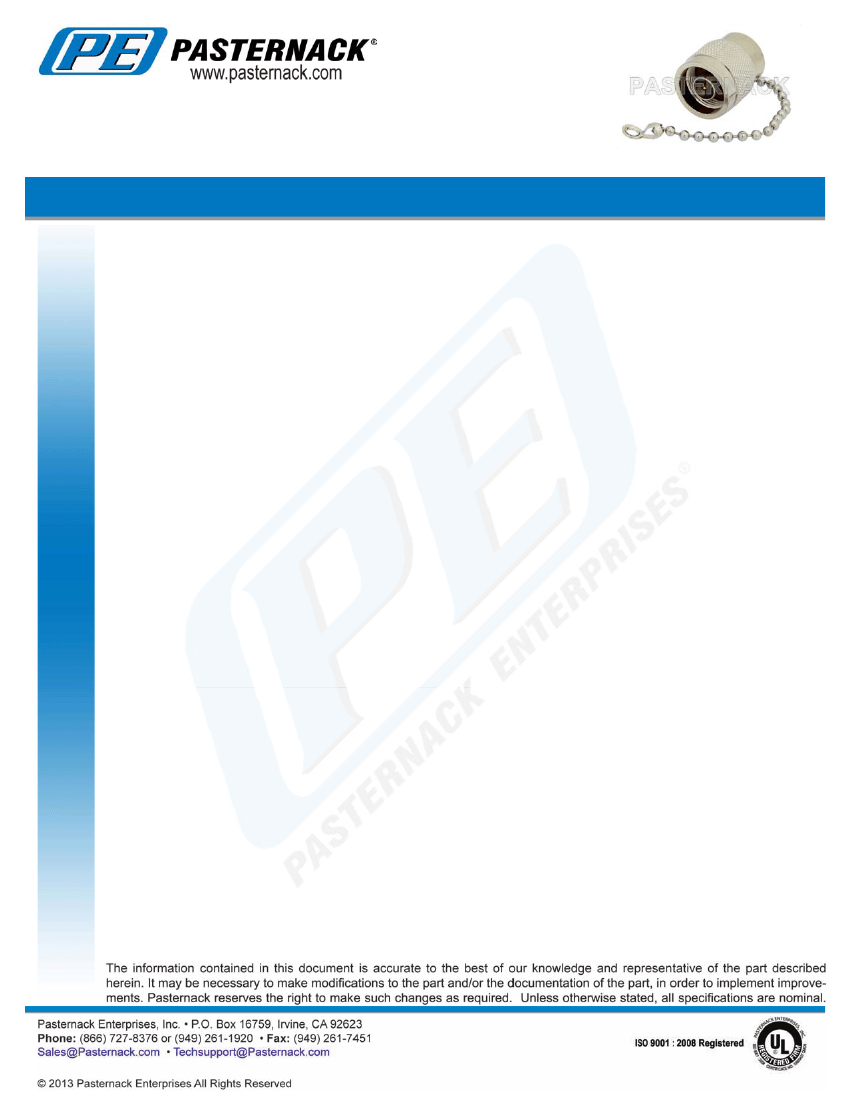

50 Ohm 2 Watts Precision Brass N Male RF

Load With Chain Up To 18 GHz

TECHNICAL DATA SHEET

50 Ohm 2 Watts Precision Brass N Male RF Load With Chain Up To 18 GHz

Configuration

RF Load Design

Connector

Connector Specification

Connection Method

Body Style

Precision

N Male

MIL-STD-348

Standard

Straight

PE6075

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

Maximum Input Power, Watts

DC to 18

1.3:1

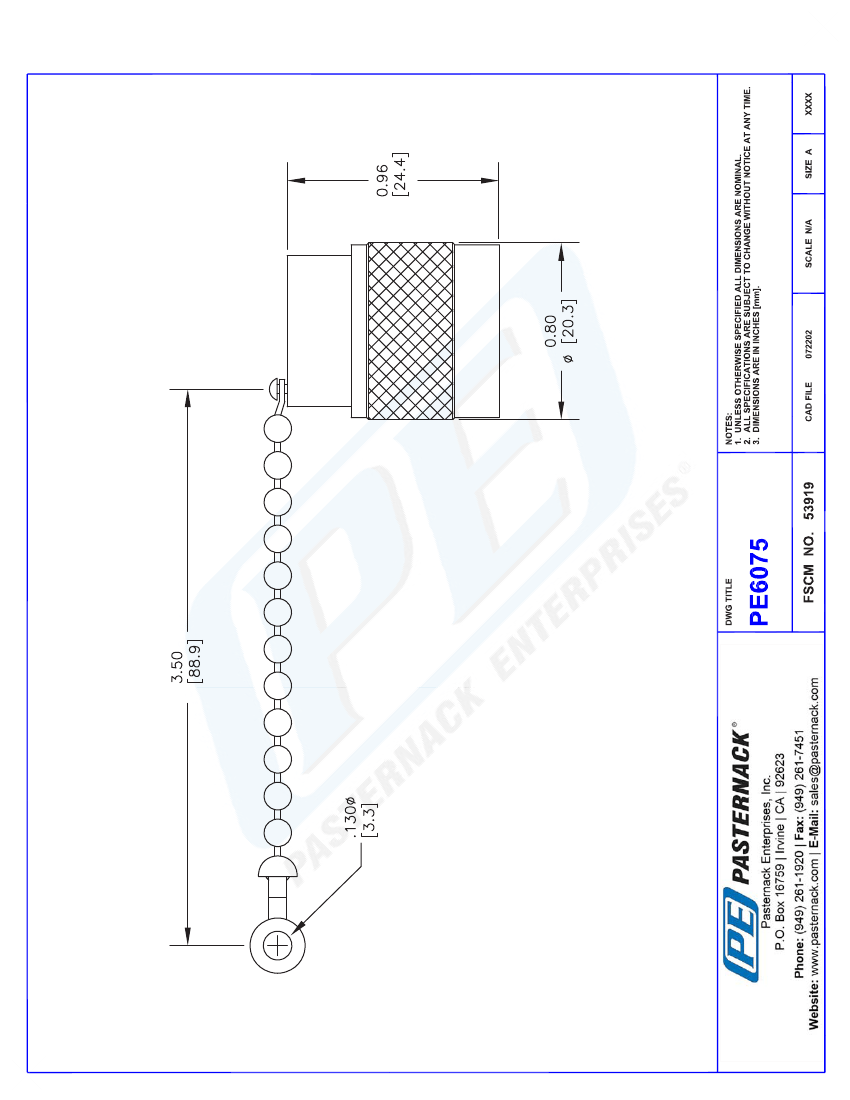

Mechanical Specifications

Temperature

Size

Length, in [mm]

Width/Dia., in [mm]

0.96 [24.38]

0.8 [20.32]

Connector

Type

N Male

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/2-watts-n-male-rf-load-up-to-18-ghz-precision-pe6075-p.aspx

50 Ohm 2 Watts Precision Brass N Male RF Load With Chain Up To 18 GHz

from Pasternack Enterprises has same day

shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and

are part of the broadest selection in the industry.

PE6075 REV
