PE6096 Overview

50 Ohm 5 Watts Black Anodized Aluminum Heatsink SMA Female RF Load Up To 18 GHz

50 Ohm 5 Watts Passivated Stainless Steel
SMA Female RF Load Up To 18 GHz
TECHNICAL DATA SHEET
50 Ohm 5 Watts Passivated Stainless Steel SMA Female RF Load Up To 18 GHz
Configuration
Connector
Connector Specification
Heat Sink
SMA Female
MIL-STD-348
Aluminum Heatsink, Black Anodized
PE6096
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
Frequency 1
Frequency, GHz
VSWR
Frequency 2
Frequency, GHz
VSWR
Frequency 3
Frequency, GHz
VSWR
Frequency 4
Frequency, GHz
VSWR
DC to 18
50
1.25:1
5
DC to 4
1.1:1
4 to 8
1.15:1
8 to 12.4
1.2:1
12.4 to 18
1.25:1
Mechanical Specifications
Temperature
Operating Range, deg C

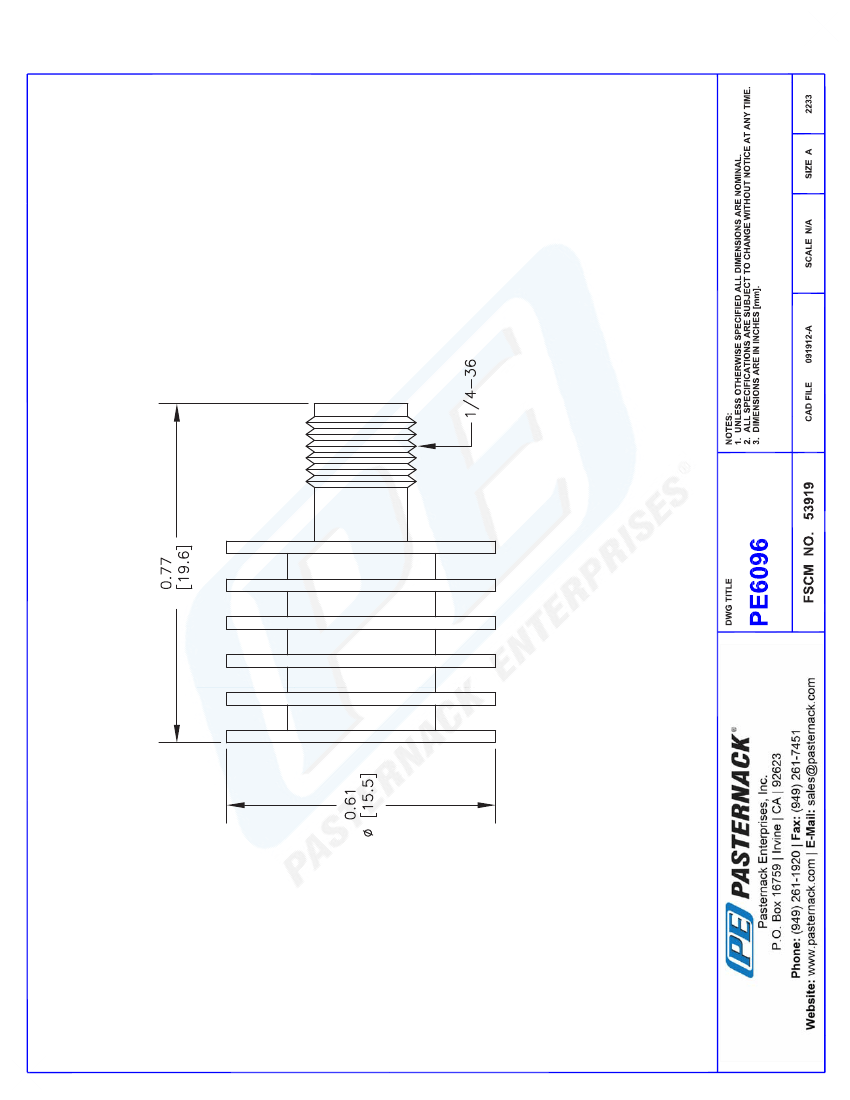

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +125
0.77 [19.56]
0.61 [15.49]
Connector
Type
Inner Conductor Material and Plating
Body Material and Plating
SMA Female
Beryllium Copper, Gold
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 5 Watts Passivated Stainless Steel SMA Female RF Load Up To 18 GHz PE6096
PE6096 REV
1
