50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz
TECHNICAL DATA SHEET
50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz
PE6173
Pasternack Enterprises line of 2.92mm Terminations are available in 0.5 Watt, 1 Watt and 2 Watt versions and operate
from DC to 40 GHz. Our 2.92mm Terminations are manufactured for durability with Passivated Stainless Steel bodies
and Gold Plated BeCu (Beryllium Copper) contacts and are with a Chain or No Chain. Pasternack’s Male and Female
2.92mm Terminations will mate with 2.92mm, 3.5mm and SMA connectors.
• DC to 40 GHz
• 0.5W, 1W and 2W versions
• Passivated Stainless Steel bodies
• Gold plated BeCu contacts
• Chain and No Chain options
Configuration
Design Type
Connector
Connection Method
Connector Design
Body Style
RF Load
2.92mm Male
Standard
Precision
Straight
Electrical Specifications
Frequency Range (GHz)
Impedance (Ohm)
VSWR, Max
Power, Max (Watt)
Frequency 1
Frequency (GHz)
VSWR
Power Handling (Watt)
DC to 40
50
1.25:1
1
DC to 40
1.25:1
1
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz PE6173
The information contained in this document is accurate to the best of our knowledge and representative of the part described
herein. It may be necessary to make modifications to the part and/or the documentation of the part, in order to implement improve-
ments. Pasternack reserves the right to make such changes as required. Unless otherwise stated, all specifications are nominal.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
© 2012 Pasternack Enterprises All Rights Reserved
PE6173 REV NC
1
50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz
TECHNICAL DATA SHEET
Mechanical Specifications
Temperature Operating Range (deg C)
Weight (Lbs)
Length (in)
Width/Dia. (in)
Height (in)
Dielectric Type
Body Material and Plating
Connector
Hex Size (inch)
Torque (In-Lbs)
Mating Cycles
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
-50 to +125
0.013
0.594
0.313
0.313
Plastic Bead
Stainless Steel, Gold
2.92mm Male
5/16
8
500
Beryllium Copper, Gold
Stainless Steel, Gold
Stainless Steel, Gold
PE6173
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Other Data
URL:
http://www.pasternack.com/1-watt-2.92mm-male-rf-load-up-to-40-ghz-precision-pe6173-p.aspx
50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz
from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
The information contained in this document is accurate to the best of our knowledge and representative of the part described
herein. It may be necessary to make modifications to the part and/or the documentation of the part, in order to implement improve-
ments. Pasternack reserves the right to make such changes as required. Unless otherwise stated, all specifications are nominal.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
© 2012 Pasternack Enterprises All Rights Reserved
PE6173 REV NC
2
50 Ohm 1 Watt Precision 2.92mm Male RF Load Up To 40 GHz
PE6173

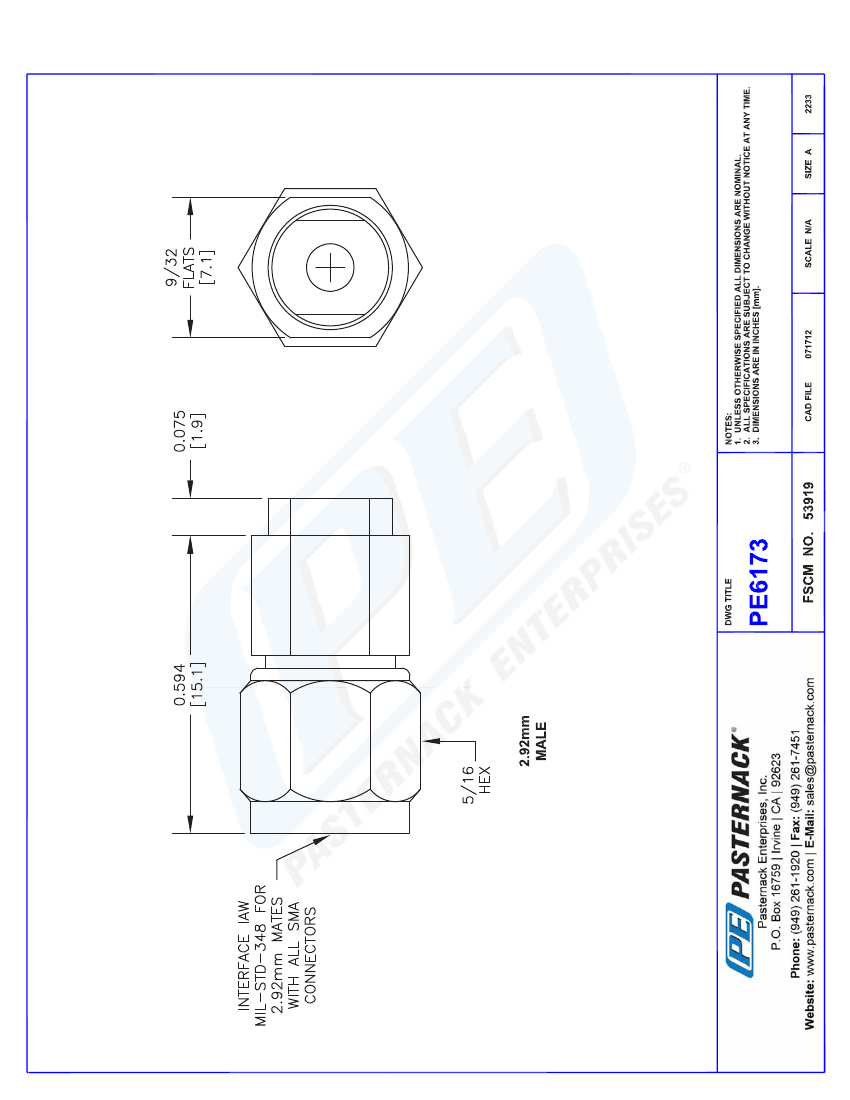

CAD Drawing
© 2012 Pasternack Enterprises All Rights Reserved
PE6173 REV NC
3
