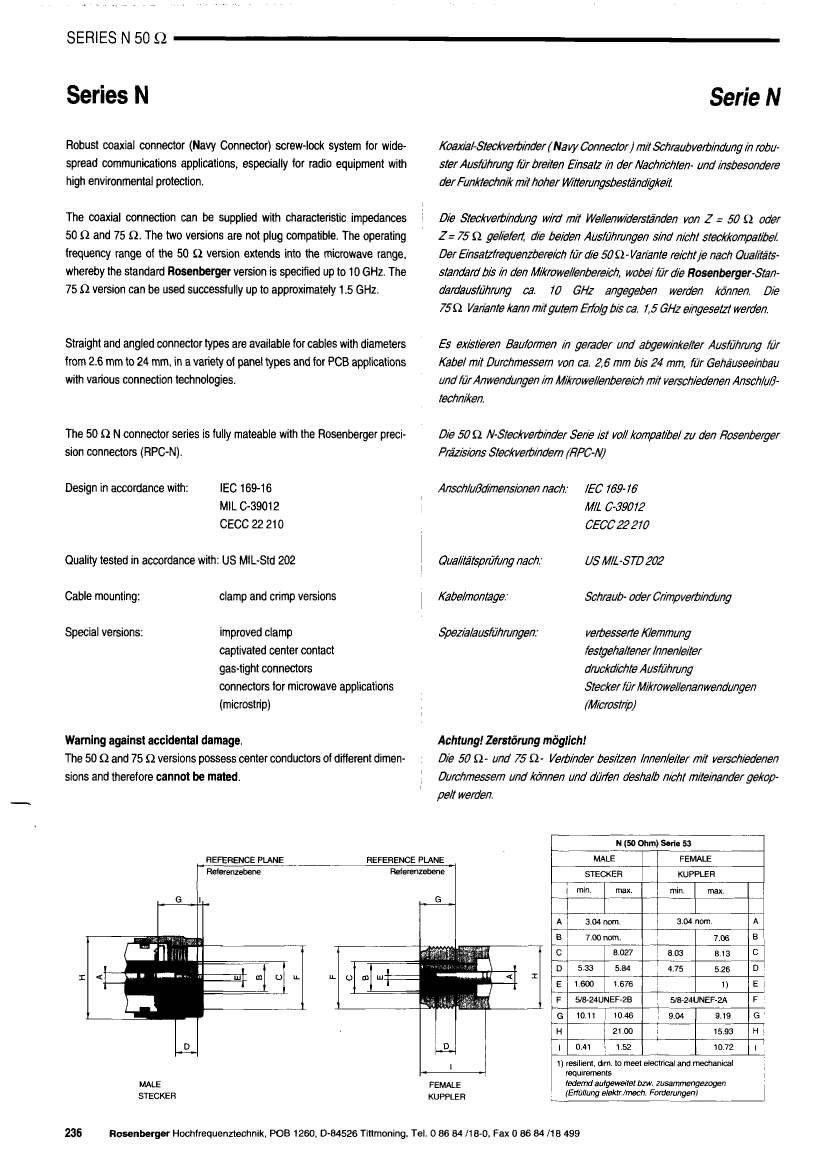

53Z101-006A Overview

RF N Connector, Male, Cable Mount

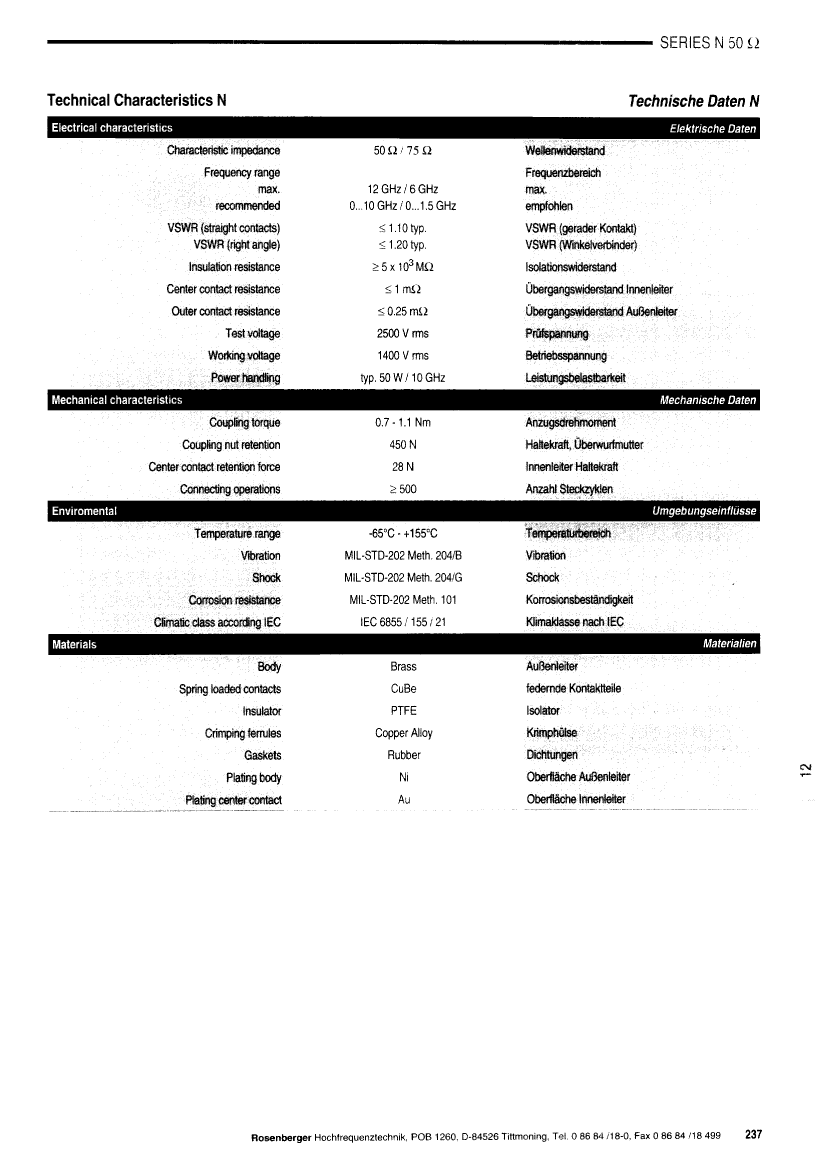

53Z101-006A Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES:RG 58; RG 141; RG 142; RG 223; RG 400
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	N
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12 GHz
Panel mounting	NO
voltage standing wave ratio	1.1

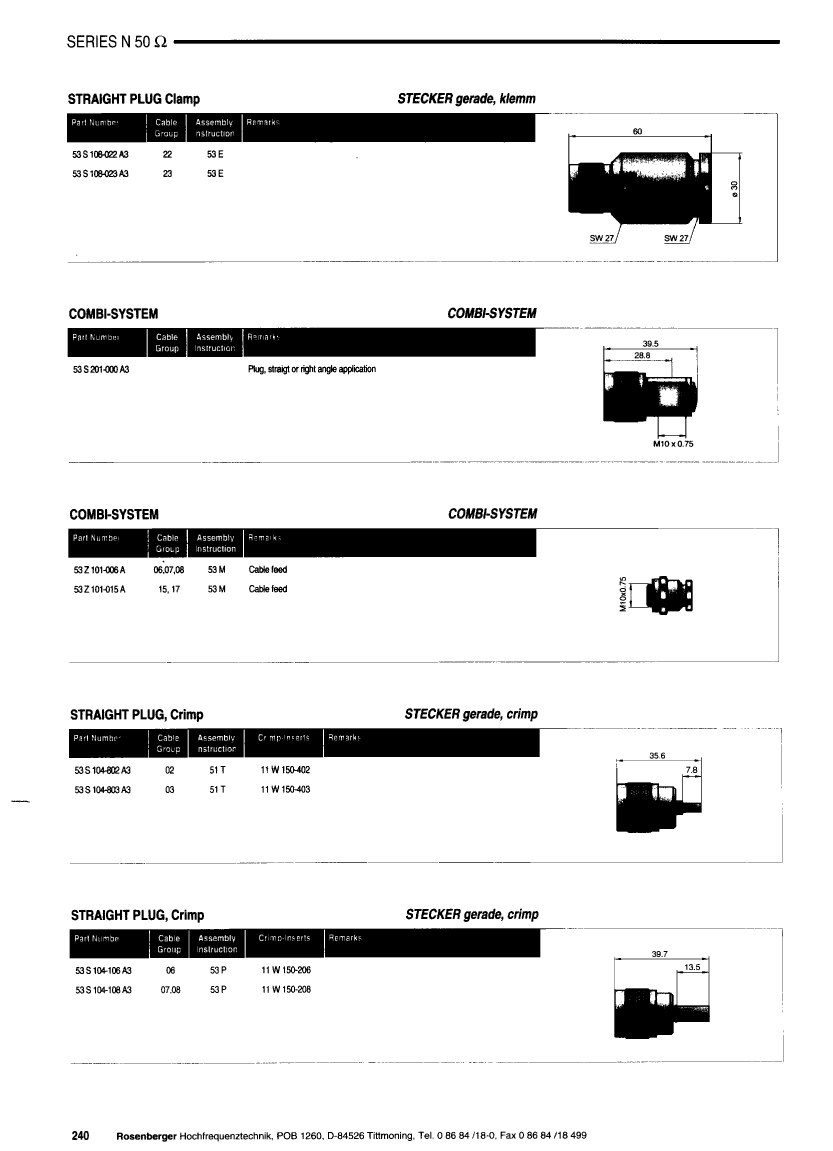

Preview

Download Datasheet

View All

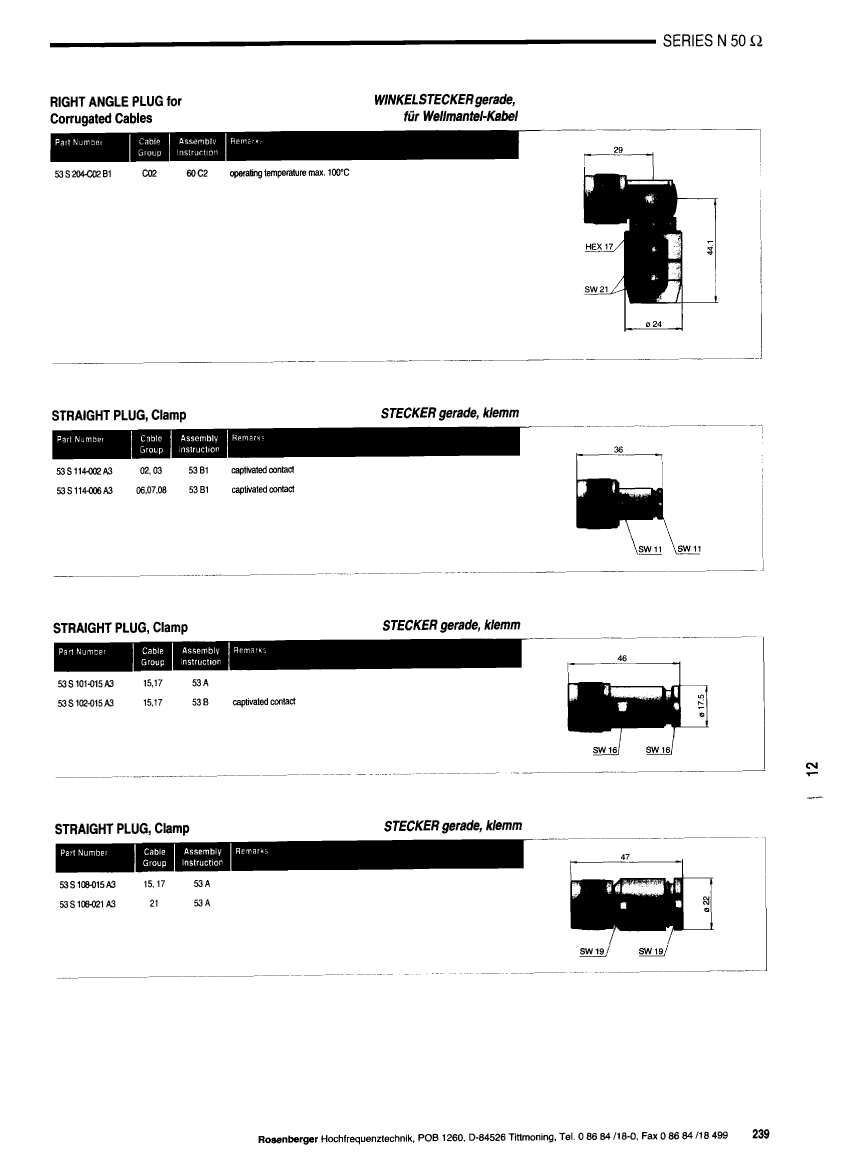

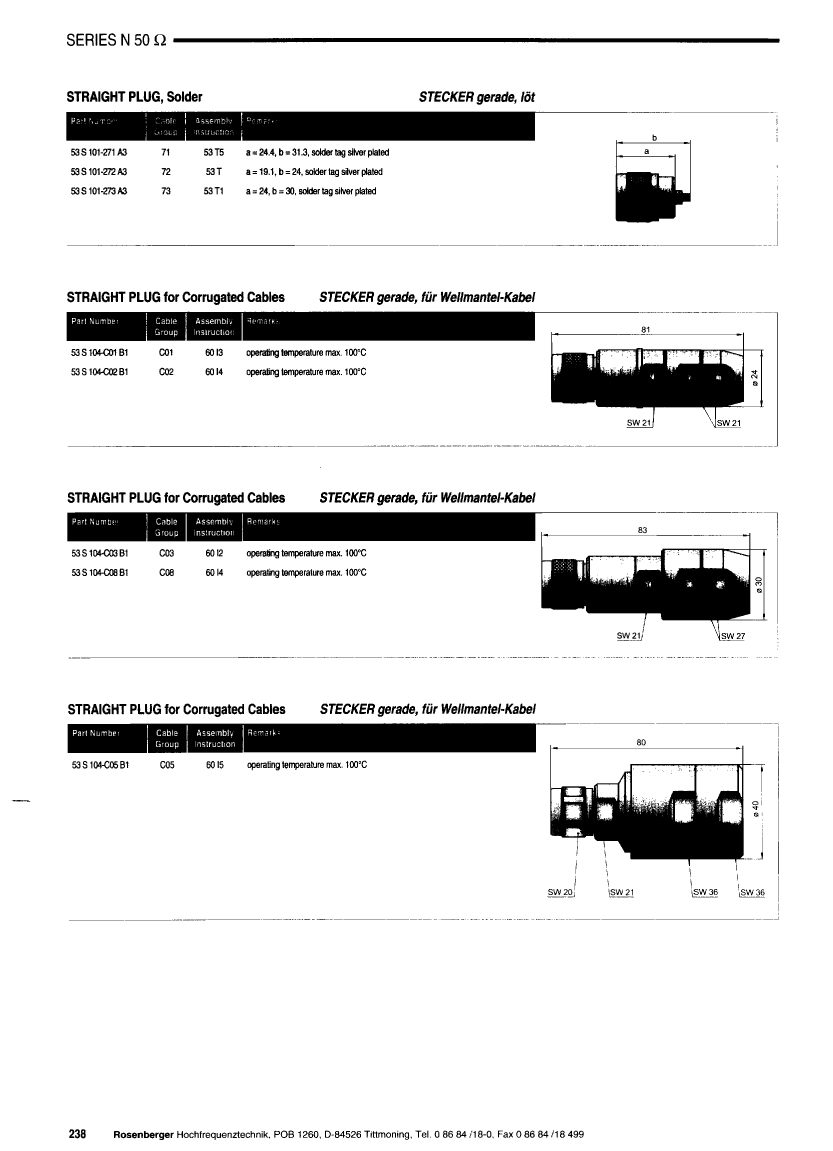

53Z101-006A Related Products

	53Z101-006A	53K402-500A3	53Z101-015A	53S202-115A3	53S202-117A3	53S201-317A3	53S201-315A3	53K401-272A3	53K401-273A3	53K401-500A3
Description	RF N Connector, Male, Cable Mount	RF N Connector, Female, Panel Mount, Solder Terminal, Jack	RF N Connector, Male, Cable Mount	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF N Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack	RF N Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Jack	RF N Connector, Female, Panel Mount, Solder Terminal, Jack
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	MALE	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	N	N	N	N	N	N	N	N	N	N
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz
Panel mounting	NO	YES	NO	NO	NO	NO	NO	YES	YES	YES
voltage standing wave ratio	1.1	1.1	1.1	1.2	1.2	1.2	1.2	1.1	1.1	1.1
Maker	Rosenberger	-	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
Other features	APPLICABLE CABLES:RG 58; RG 141; RG 142; RG 223; RG 400	-	APPLICABLE CABLES:RG 213; RG 214	APPLICABLE CABLES:RG 213	APPLICABLE CABLES:RG 214	APPLICABLE CABLES:RG 142; RG 223; RG 400	APPLICABLE CABLES:RG 58; RG 141	APPLICABLE CABLES:UT 141; RG 402	APPLICABLE CABLES:UT 250; RG 401	-
Installation type	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	-
Body/casing type	-	JACK	-	PLUG	PLUG	PLUG	PLUG	JACK	JACK	JACK
Termination type	-	SOLDER	-	CRIMP	CRIMP	CRIMP SOLDER	CRIMP SOLDER	SOLDER	SOLDER	SOLDER
