SMC Plug to BNC Male Adapter
TECHNICAL DATA SHEET
SMC Plug to BNC Male Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMC Plug
50 Ohms
MIL-STD-348A
BNC Male
50 Ohms
Standard
Straight
PE9139
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.

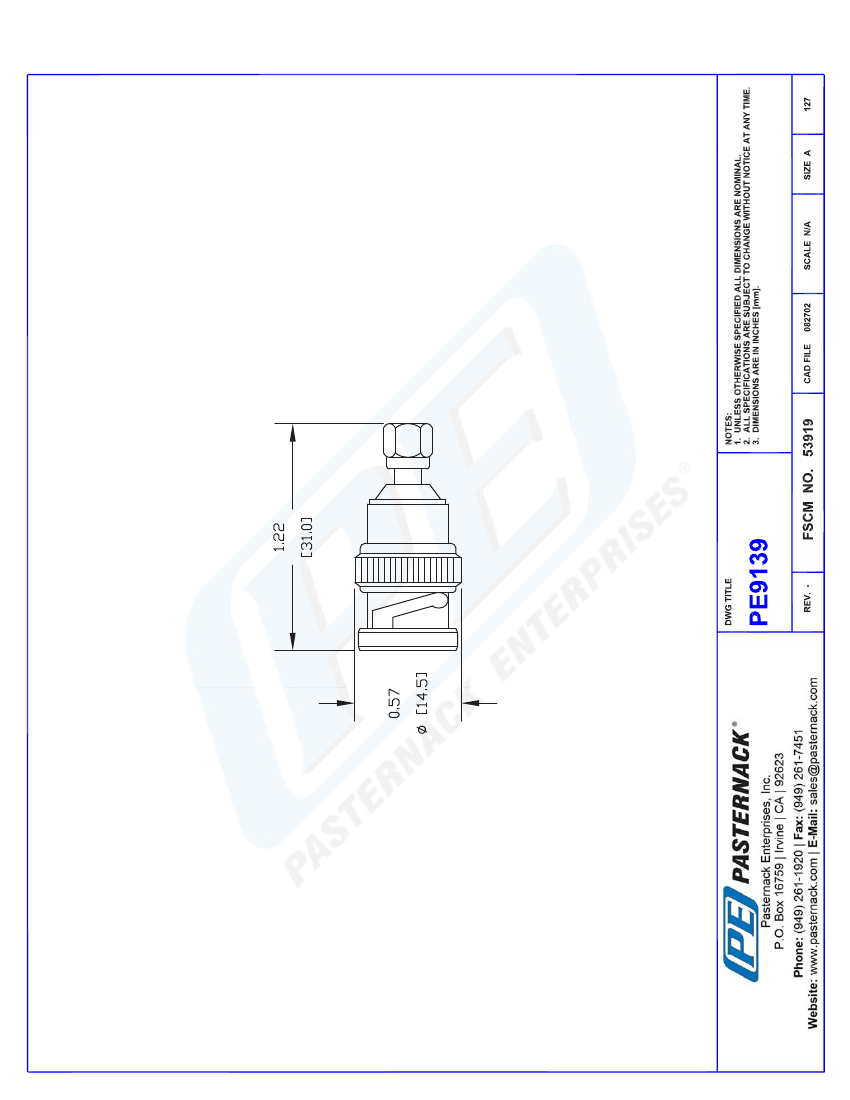

1.22 [30.99]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMC Plug
Beryllium Copper, Gold
Brass, Nickel
100µ in. minimum
1/4
5 [0.57]
Brass, Nickel
100µ in. minimum
Teflon
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMC Plug to BNC Male Adapter PE9139
PE9139 REV
1
SMC Plug to BNC Male Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9139
URL:
http://www.pasternack.com/smc-plug-bnc-male-straight-adapter-pe9139-p.aspx
SMC Plug to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9139 REV
2
