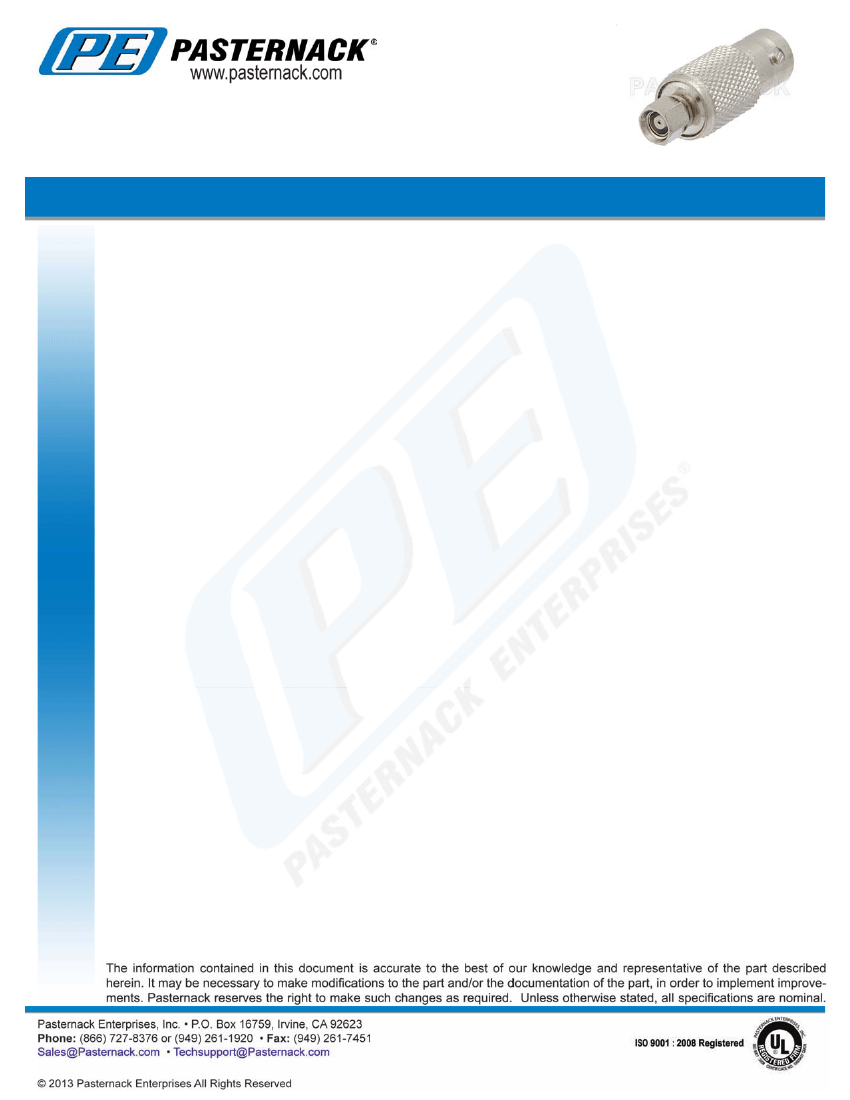

SMC Plug to BNC Female Adapter

TECHNICAL DATA SHEET

SMC Plug to BNC Female Adapter

Configuration

Connector 1

Impedance 1

Connector Specification 1

Connector 2

Impedance 2

Adapter Design

Body Style

SMC Plug

50 Ohms

MIL-STD-348A

BNC Female

50 Ohms

Standard

Straight

PE9141

Electrical Specifications

Frequency Range, GHz

Maximum VSWR

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

DC to 4

1.3:1

335

1,000

Mechanical Specifications

Temperature

Operating Range,deg C

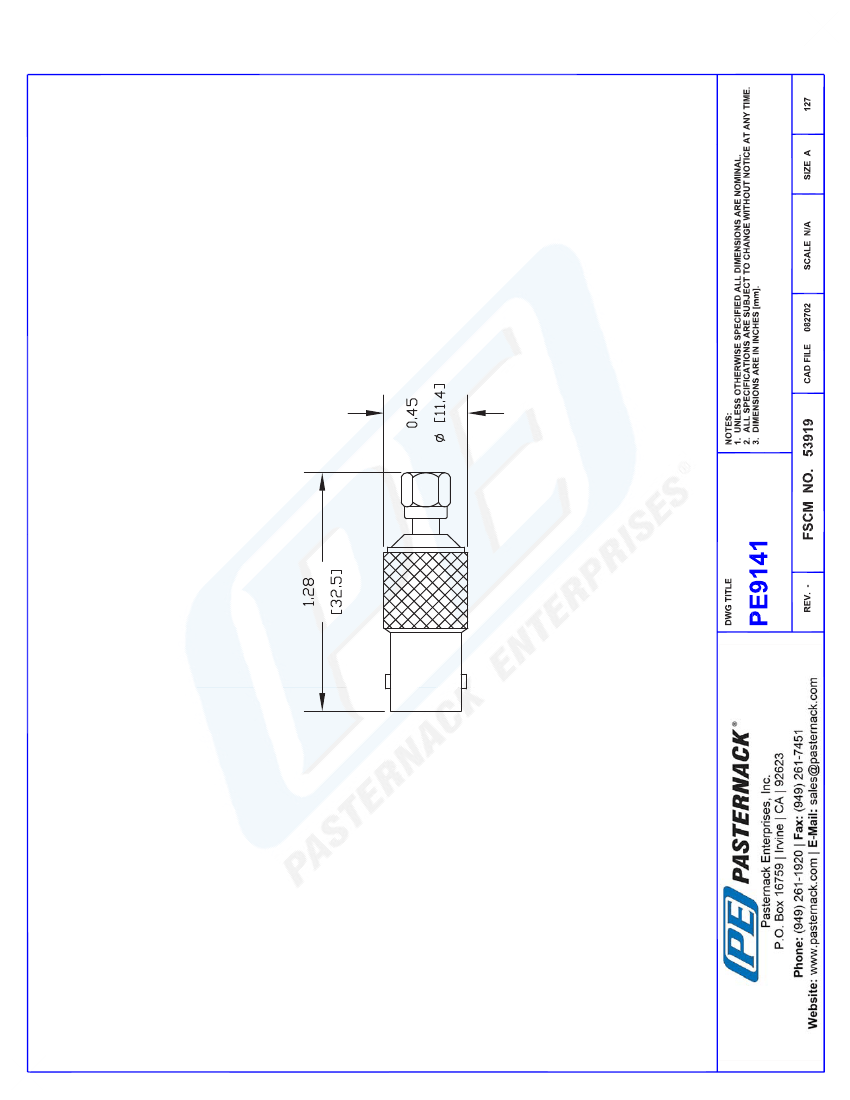

Size

Length, in [mm]

Width/Dia., in [mm]

-65 to +165

1.28 [32.51]

0.45 [11.43]

Connector 1

Type

Inner Conductor Material and Plating

Inner Conductor Plating Specification

Coupling Nut Material and Plating

Coupling Nut Plating Specification

Hex Size, in

Torque, in-lbs [Nm]

Body Material and Plating

Body Plating Specification

Dielectric Type

Connector 2

Type

Inner Conductor Material and Plating

Inner Conductor Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

SMC Plug

Beryllium Copper, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

1/4

3 [0.34]

Brass, Nickel

100µ in. minimum

Teflon

BNC Female

Beryllium Copper, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMC Plug to BNC Female Adapter PE9141

PE9141 REV
