SMA Female to SMB Plug Adapter
TECHNICAL DATA SHEET
SMA Female to SMB Plug Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
SMA Female
MIL-STD-348A
SMB Plug
MIL-STD-348A
Standard
Straight
PE9142
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
335
1,000
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.642 [16.31]
0.25 [6.35]
Teflon
SMA Female
Beryllium Copper, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
SMB Plug
Beryllium Copper, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female to SMB Plug Adapter PE9142
PE9142 REV
1
SMA Female to SMB Plug Adapter
TECHNICAL DATA SHEET

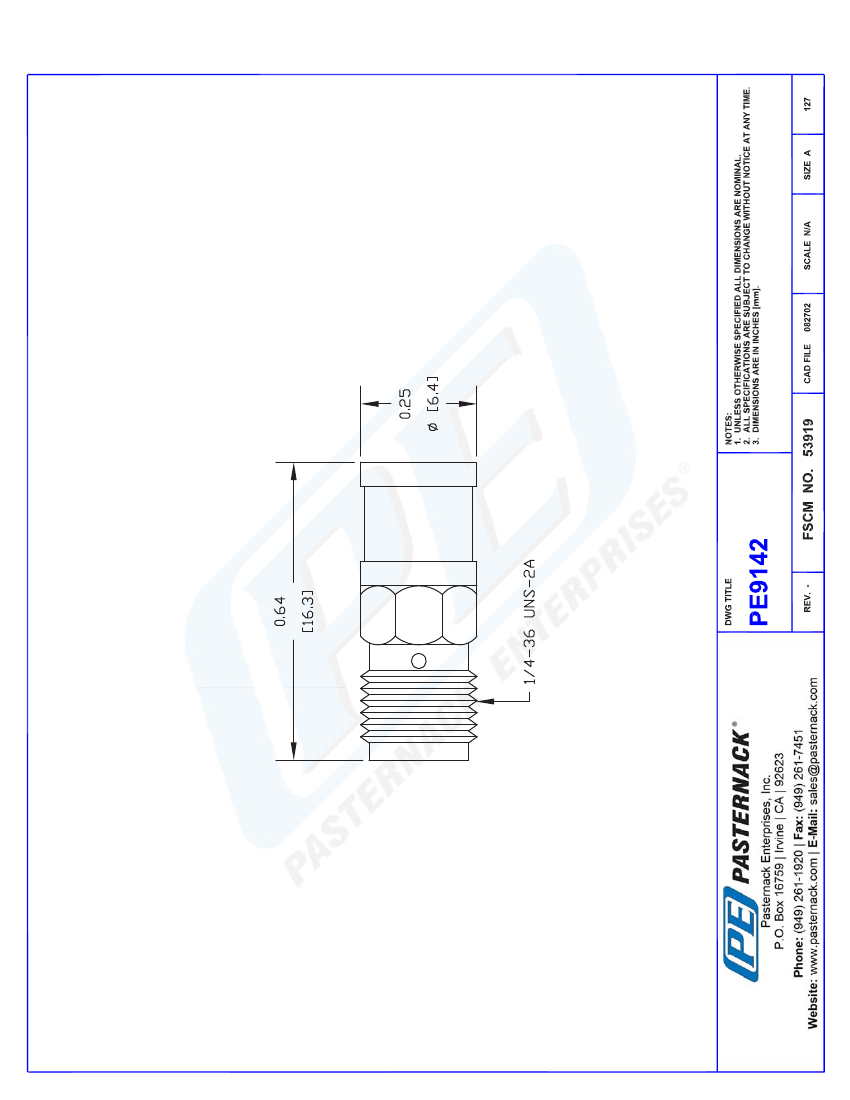

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9142
URL:
http://www.pasternack.com/sma-female-smb-plug-straight-adapter-pe9142-p.aspx
SMA Female to SMB Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9142 REV
2
