PE9146 Overview

SMA Female to SMC Plug Adapter

SMA Female to SMC Plug Adapter
TECHNICAL DATA SHEET
SMA Female to SMC Plug Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMA Female
50 Ohms
SMC Plug
50 Ohms
Standard
Straight
PE9146

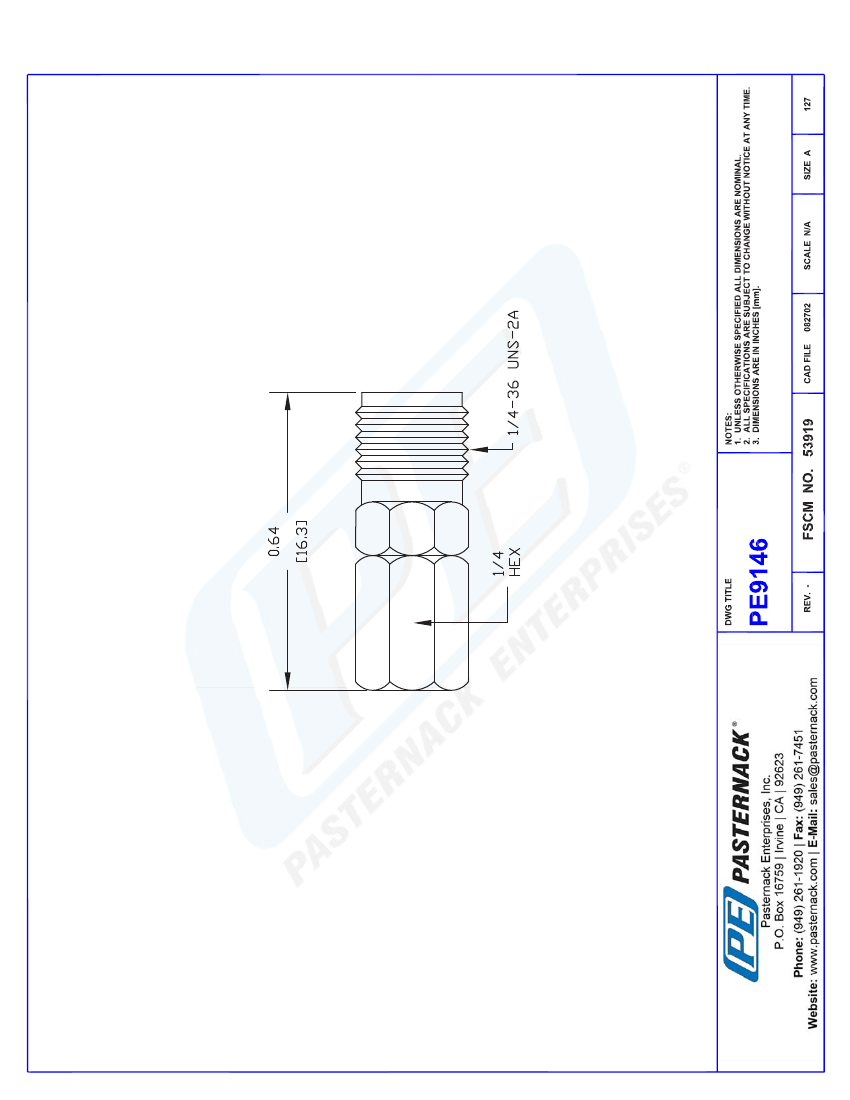

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.64 [16.26]
0.25 [6.35]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMA Female
Gold
Brass, Nickel
PTFE
SMC Plug
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-smc-plug-straight-adapter-pe9146-p.aspx
SMA Female to SMC Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9146 REV
1
