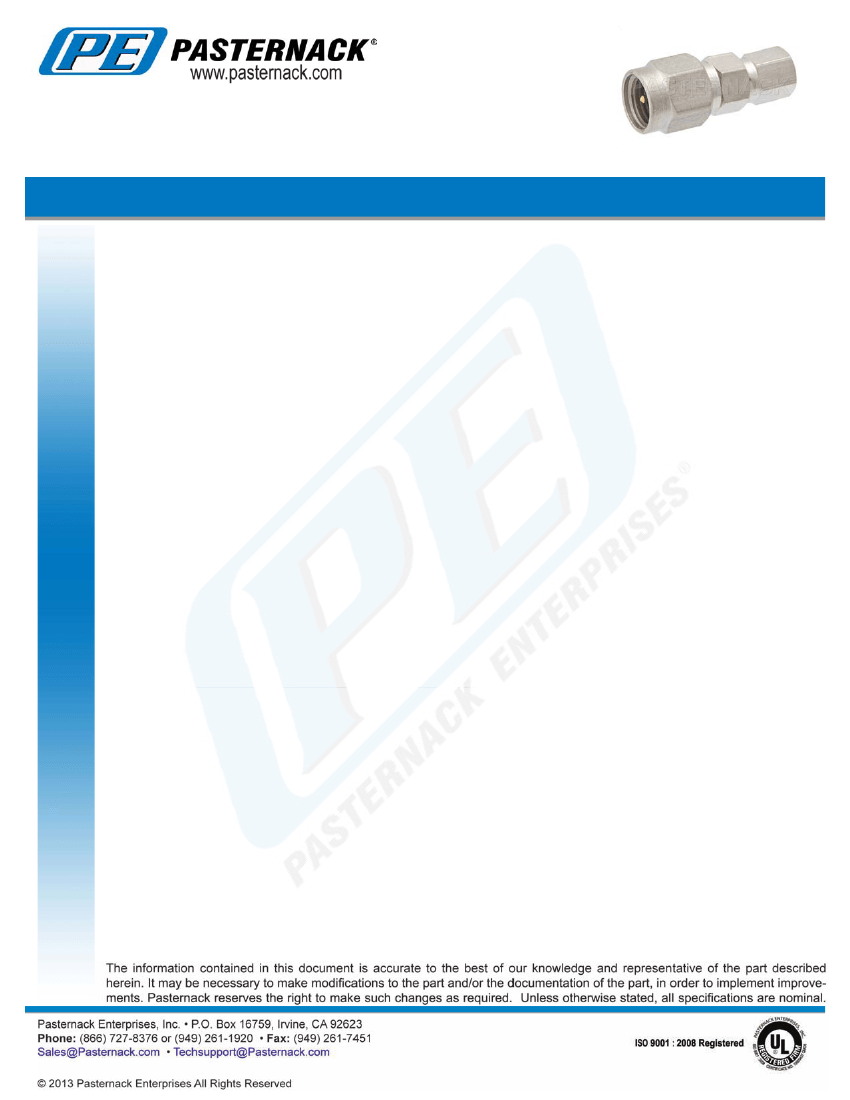

SMA Male to SMC Plug Adapter
TECHNICAL DATA SHEET
SMA Male to SMC Plug Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMA Male
50 Ohms
SMC Plug
50 Ohms
Standard
Straight
PE9148
Mechanical Specifications
Temperature
Operating Range,deg C

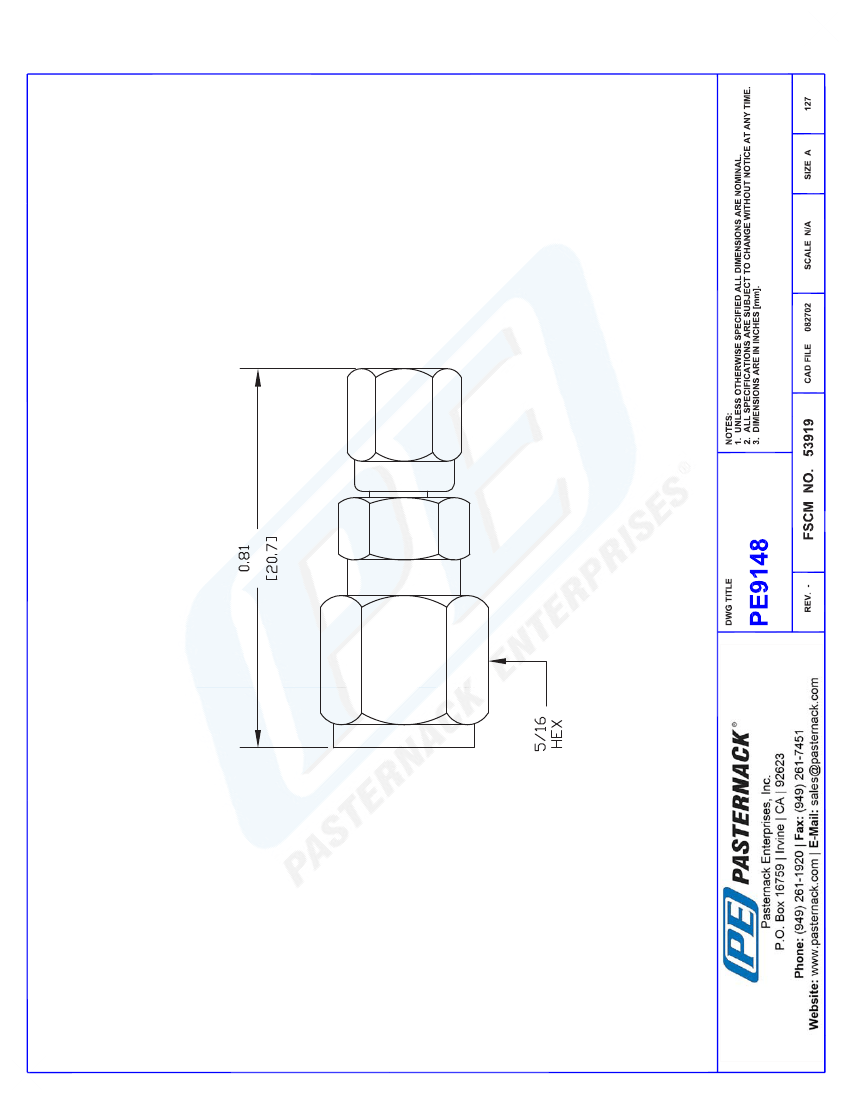

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.814 [20.68]
0.312 [7.92]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Gold
MIL-G-45204
Brass, Nickel
5/16
5 [0.57]
Brass, Nickel
Teflon
SMC Plug
Gold
MIL-G-45204
Brass, Nickel
1/4
3 [0.34]
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMC Plug Adapter PE9148
PE9148 REV
1
SMA Male to SMC Plug Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9148
URL:
http://www.pasternack.com/sma-male-smc-plug-straight-adapter-pe9148-p.aspx
SMA Male to SMC Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
