50 Ohm BNC Female to 75 Ohm F Male Adapter
TECHNICAL DATA SHEET
50 Ohm BNC Female to 75 Ohm F Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
BNC Female
50 Ohms
F Male
75 Ohms
Standard
Straight
PE9151
Electrical Specifications
Frequency Range, MHz
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, MHz
VSWR
DC to 1,000
500
1,500
DC to 500
1.3:1
Mechanical Specifications
Temperature
Operating Range,deg C

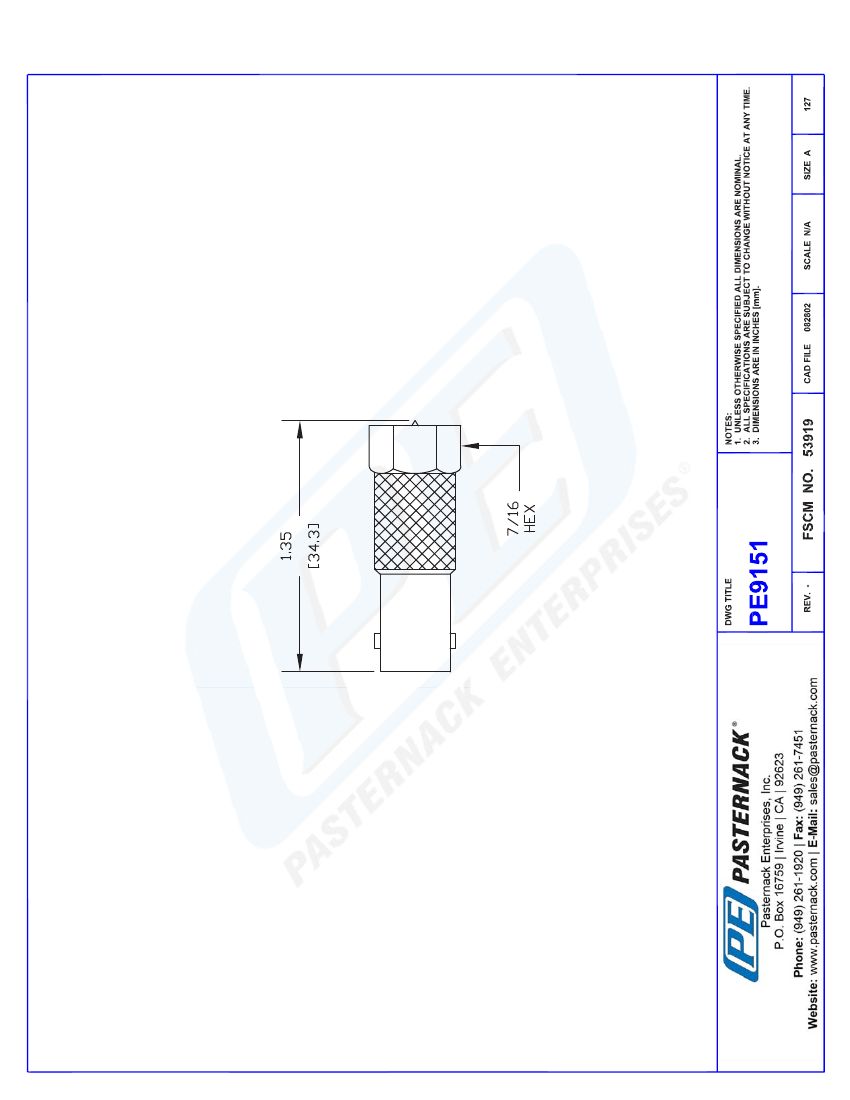

Size
Length, in [mm]
Width/Dia., in [mm]
.
-40 to +85
1.354 [34.39]
0.433 [11]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
BNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
F Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
7/16
15 [1.7]
Brass, Nickel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm BNC Female to 75 Ohm F Male Adapter PE9151
PE9151 REV
1
50 Ohm BNC Female to 75 Ohm F Male Adapter
TECHNICAL DATA SHEET
Body Plating Specification
Dielectric Type
100µ in. minimum
Teflon
PE9151
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/f-male-bnc-female-straight-adapter-pe9151-p.aspx
50 Ohm BNC Female to 75 Ohm F Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9151 REV
2
