50 Ohm BNC Female to 75 Ohm F Female Adapter
TECHNICAL DATA SHEET
50 Ohm BNC Female to 75 Ohm F Female Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
BNC Female
50 Ohms
F Female
75 Ohms
Standard
Straight
PE9153

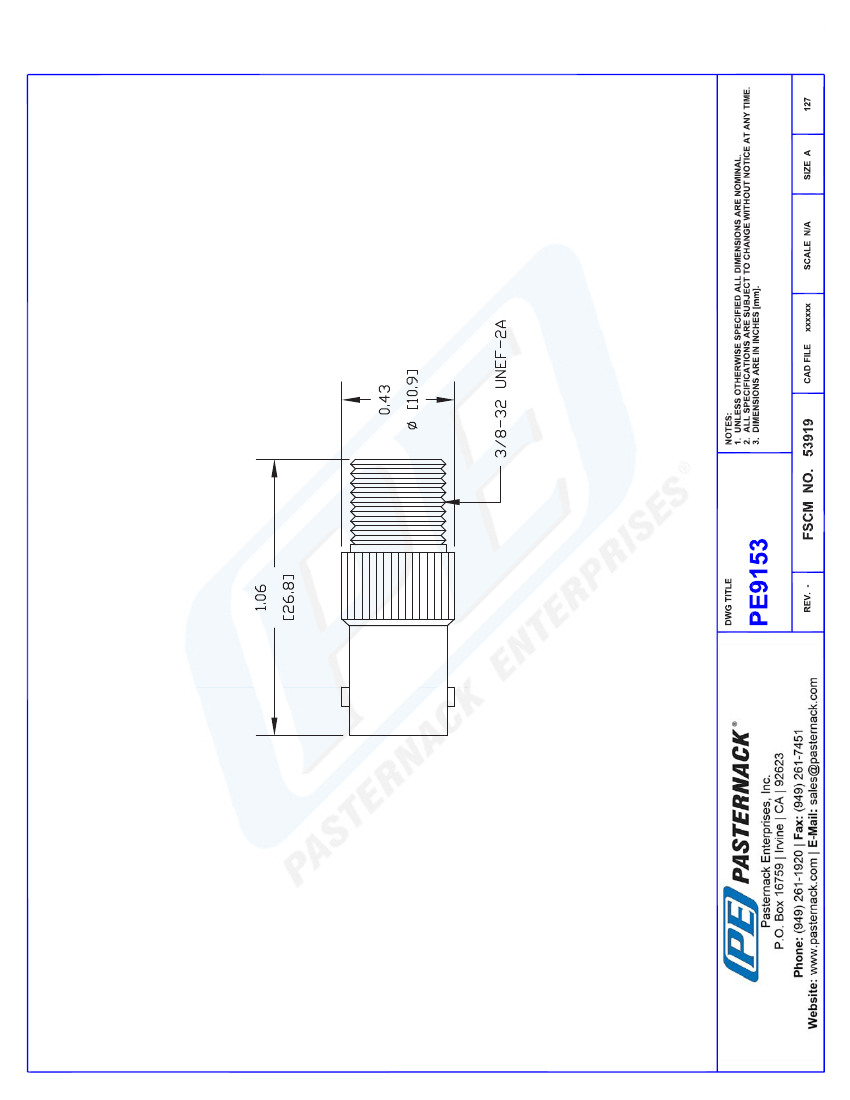

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.06 [26.92]
0.43 [10.92]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
BNC Female
Brass, Gold
Brass, Nickel
Teflon
F Female
Brass, Tin
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/f-female-bnc-female-straight-adapter-pe9153-p.aspx
50 Ohm BNC Female to 75 Ohm F Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9153 REV
1
