50 Ohm N Male to 75 Ohm F Female Adapter
TECHNICAL DATA SHEET
50 Ohm N Male to 75 Ohm F Female Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Male
50 Ohms
MIL-STD-348A
F Female
75 Ohms
Standard
Straight
PE9155
Electrical Specifications
Frequency Range, MHz
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 250
1.3:1
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C

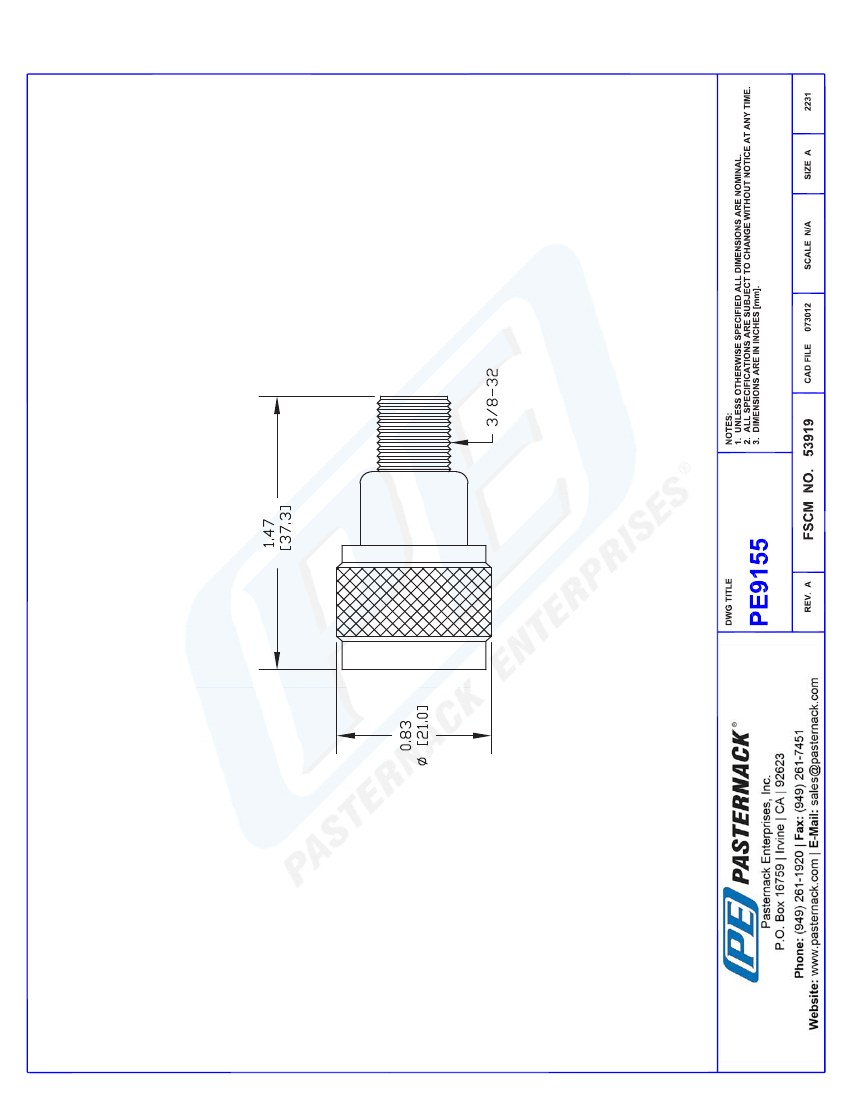

Size
Length, in [mm]
Width/Dia., in [mm]
.
-40 to +60
1.469 [37.31]
0.827 [21.01]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
N Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
F Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm N Male to 75 Ohm F Female Adapter PE9155
PE9155 REV
1
50 Ohm N Male to 75 Ohm F Female Adapter
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE9155
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-male-f-female-straight-adapter-pe9155-p.aspx
50 Ohm N Male to 75 Ohm F Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9155 REV
2
