50 Ohm BNC Female to 75 Ohm RCA Plug Adapter
TECHNICAL DATA SHEET
50 Ohm BNC Female to 75 Ohm RCA Plug Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
BNC Female
50 Ohms
RCA Plug
75 Ohms
Standard
Straight
PE9158
Electrical Specifications
Frequency Range, MHz
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 250
500
1,000
Mechanical Specifications
Temperature
Operating Range,deg C

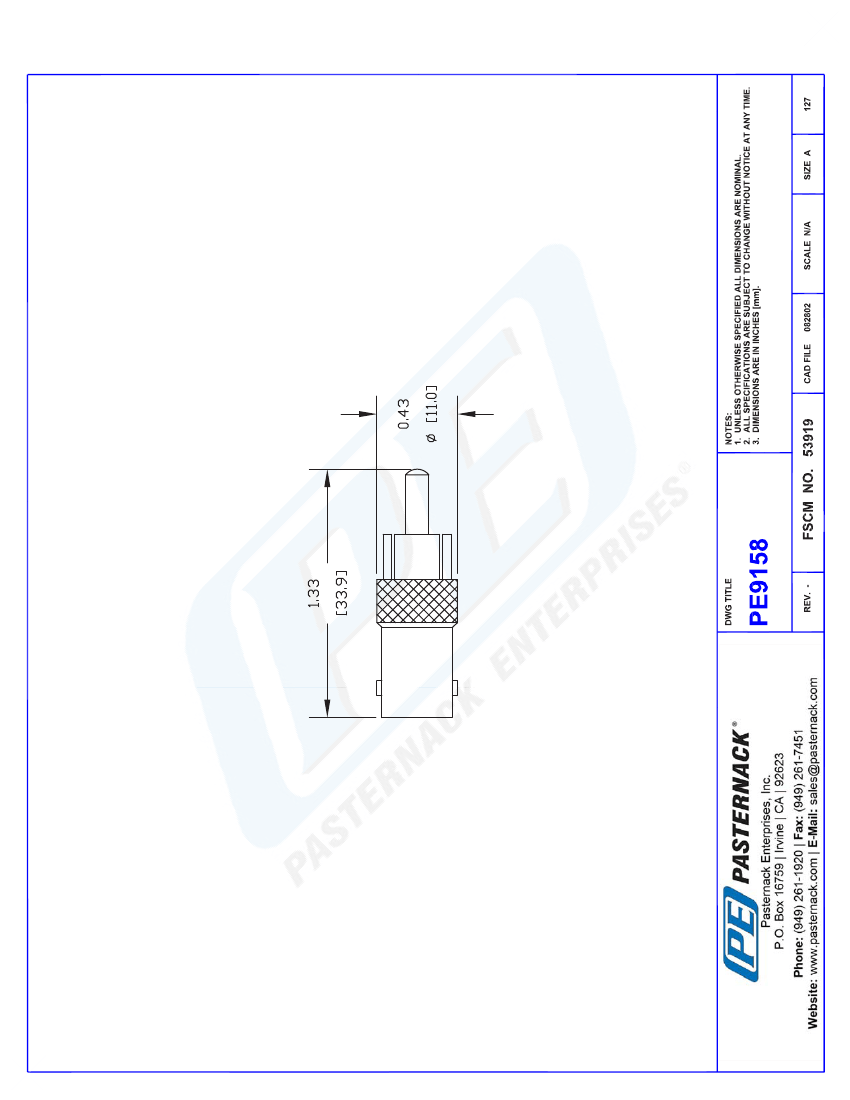

Size
Length, in [mm]
Width/Dia., in [mm]
.
-40 to +60
1.323 [33.6]
0.433 [11]
POM
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
BNC Female
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
RCA Plug
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm BNC Female to 75 Ohm RCA Plug Adapter PE9158
PE9158 REV
1
50 Ohm BNC Female to 75 Ohm RCA Plug Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9158
URL:
http://www.pasternack.com/bnc-female-rca-plug-straight-adapter-pe9158-p.aspx
50 Ohm BNC Female to 75 Ohm RCA Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9158 REV
2
