75 Ohm F Male to F Male Adapter
TECHNICAL DATA SHEET
75 Ohm F Male to F Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
F Male
75 Ohms
F Male
75 Ohms
Standard
Straight
PE9159

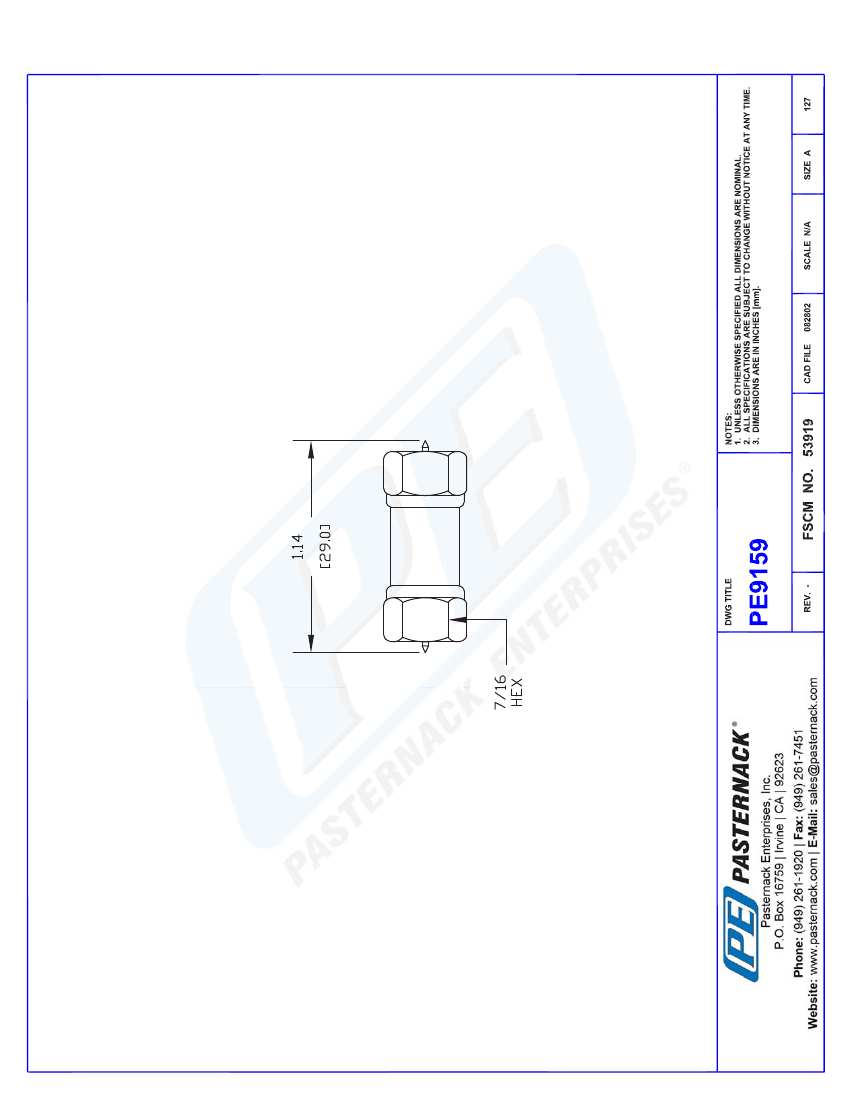

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.14 [28.96]
0.438 [11.13]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
F Male
Brass, Nickel
Brass, Nickel
7/16
15 [1.7]
Brass, Nickel
Delrin
F Male
Brass, Nickel
Brass, Nickel
7/16
15 [1.7]
Brass, Nickel
Delrin
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/f-male-f-male-straight-adapter-pe9159-p.aspx
75 Ohm F Male to F Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9159 REV
1
