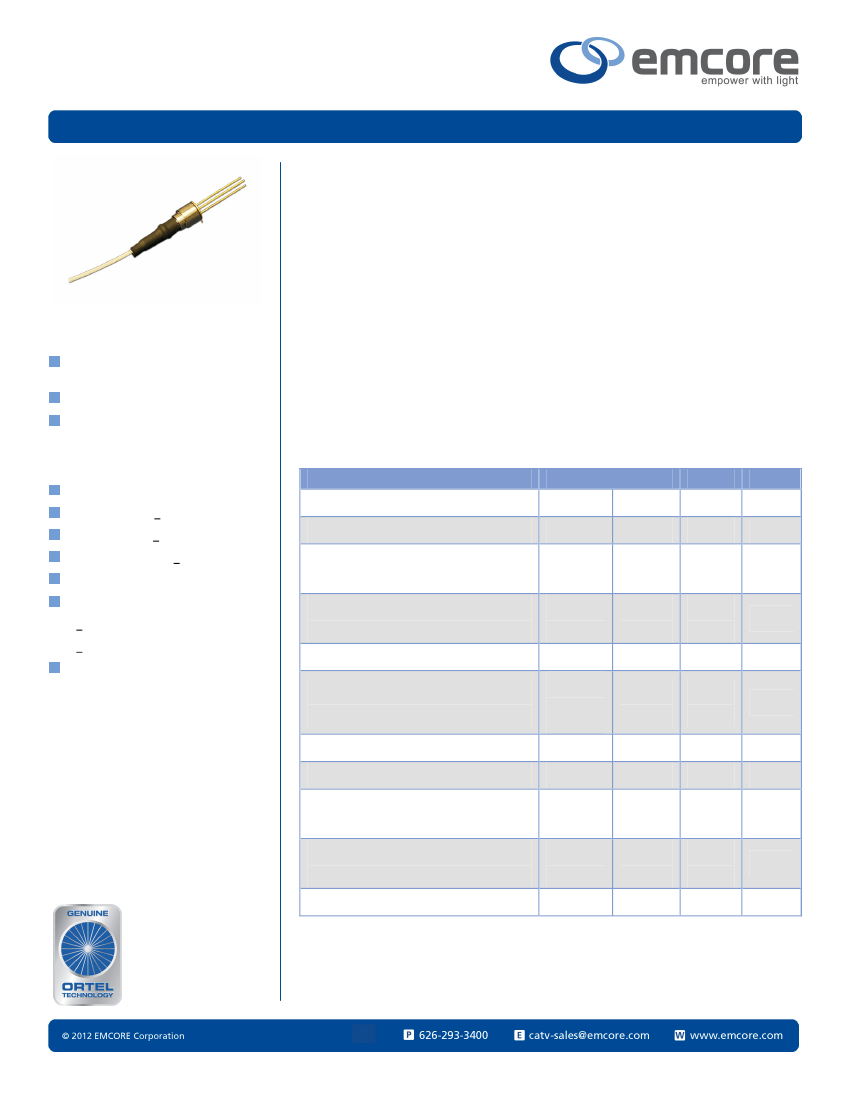

The 2651 provides the proven high performance of EMCORE’s photodiode
technology in a very practical, cost-effective package. The 2651A features high
linearity and low capacitance over a 1 GHz bandwidth. The extended bandwidth
2651E offers high linearity and low capacitance up to 3 GHz. These broadband
photodiodes are housed in a small, environmentally rugged coaxial package.
The 2651 broadband photodetector is designed to provide the performance and
flexibility needed to meet the expanding applications of two-way communications
networks. This photodiode is used today in forward-and return-path applications,
including AM-VSB CATV, QAM 64/256, PON, FTTC and FTTH receivers.
The 2651A and 2651E photodiodes are compliant with all criteria of the Restriction
of the Use of Hazardous Substances in Electrical and Electronic Equipment
(RoHS) guidelines 2002/95/EC
Applications
Forward-Path and Return-Path
Broadband Video Transport
FTTx Receivers
EDFA and Network Monitors
Features
Low Cost Package
Low Capacitance, < 0.4 pF
Low Dark Current < 50 nA at +85C
1 GHz Flat Response, + 0.5 dB
Extended Bandwidth Option
High Responsivity
- > 0.90 A/W at 1310 nm, typ.
- > 0.98 A/W at 1550 nm, typ.
RoHS Compliant
Performance Highlights
Min
Operating Case Temperature
Wavelength
Responsivity, 1310 nm
1550 nm
Dark Current, 25C
85C
Capacitance
Bandwidth, 2651A
2651E
Gain Flatness, < 1 GHz
Gain Up-Tilt, 2651E, 1 GHz to 3 GHz
DSO,
2651A/E,
< 1 GHz
-40
1100
-
-
-
-
-
-
-
Typ
25
-
0.90
0.98
-
-
0.35
-
-
-
-
-
-
-
-
12
Max
+85
1600
-
-
5
50
0.4
1000
3000
1.0
4
-75
-65
-85
-75
15
Units
C
nm
A/W
nA
pF
MHz
-
2
-
-
-
-
10
dB
p-p
dB
dBc
2651A/E,
1 GHz – 3 GHz
DTB, 2651A/E, < 1 GHz
2651E, 1 GHz – 3 GHz
Bias Voltage
dBc
V
| REV 2012.02
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2651A/2651E Broadband Photodiode
DATASHEET | FEBRUARY 2012
FIBER OPTICS
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress
ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the
operational sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect
device reliability.
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power Saturation
Reverse Voltage
Forward Current
Symbol
T
op
T
stg
P
IN
V
R
I
F
Min
-40
-40
-
-
-
Max
85
85
10
30
10
Unit
°C
°C
mW
V
mA
DC/Optical Characteristics
Parameter
Wavelength
Responsivity
Dark Current
Capacitance
Optical Return Loss
Bias Voltage
Fiber Buffer
Fiber Core / Cladding
-
-
-
Condition
-
1310 nm
1550 nm
25C
85C
-
Min
1100
0.85
0.95
-
-
-
-
10
-
-
Typ
-
0.90
0.98
-
-
0.35
-
12
900
9/125
Max
1600
-
-
5
50
0.4
-40
15
-
-
Unit
nm
A/W
nA
pF
dB
V
m
m
RF Characteristic
Parameter
Frequency Range
1
Condition
2651A
2651E
Min
-
-
-
2
-
-
-
-
Typ
-
-
-
-
-
-
-
-
Max
1000
3000
1
4
-75
-65
-85
-75
Unit
MHz
dB
dB
dBc
dBc
Frequency Response
Frequency Response
DSO
DTB
1,3
1
1
2651A/E, peak-to-valley, < 1 GHz
2651E up-tilt gain
2
2651A/E, 1310 nm, two tone test
4
2651E, 1310 nm, two tone test
2651A/E, 1310 nm, two tone test
4
2651E, 1310 nm, two tone test
1,3
1. Characterized with resistive load of 75.
2. 1 GHz to 3 GHz.
3. Each test laser has 40% OMI. Distortion products are measured at 81, 449, 600, 850. Optical P
in
= 0 dBm. V
pd
= 12V.
4. Additional test frequencies of 1500, 2000, and 2500 MHz
| REV 2012.02
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2651A/2651E Broadband Photodiode
DATASHEET | FEBRUARY 2012
FIBER OPTICS

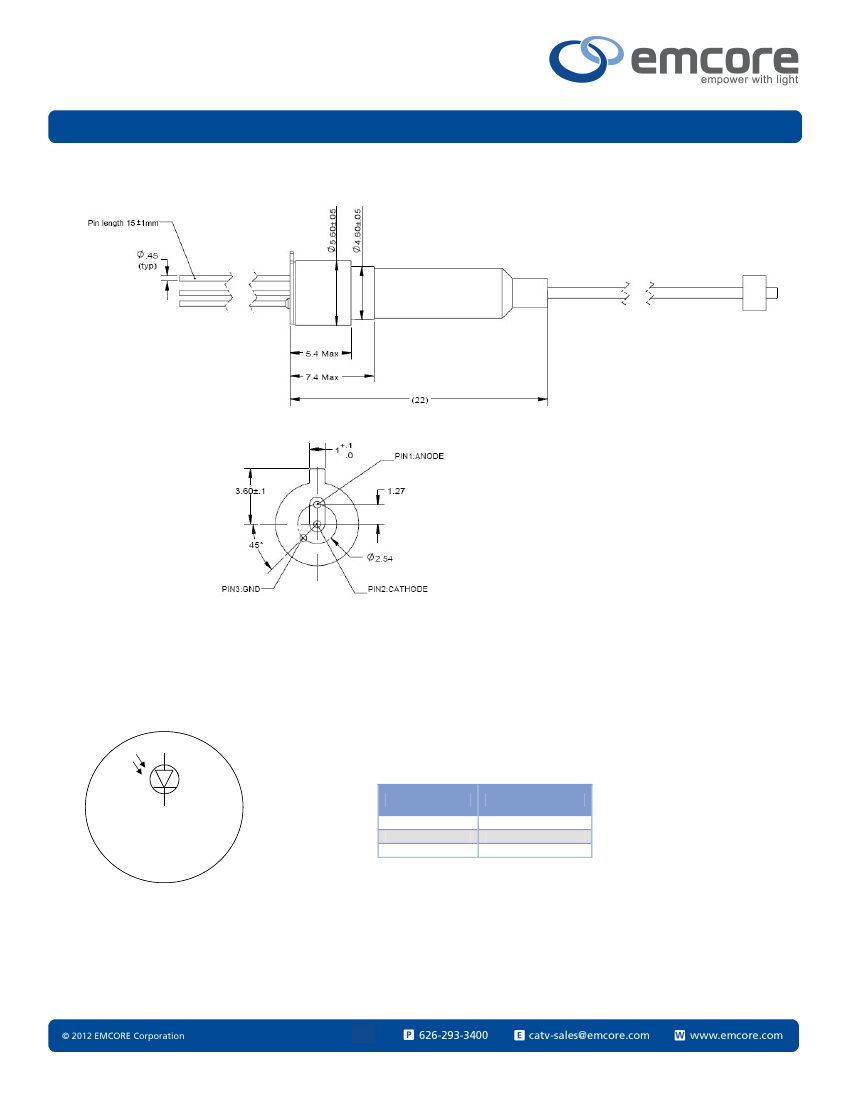

Outline Drawing (Dimensions are in mm)
Block Diagram and Pinout
.
.
.
Ground
Anode
Pin Definitions
Cathode
Pin
1
2
3
Description
Anode
Cathode
Ground
| REV 2012.02
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2651A/2651E Broadband Photodiode
DATASHEET | FEBRUARY 2012
FIBER OPTICS

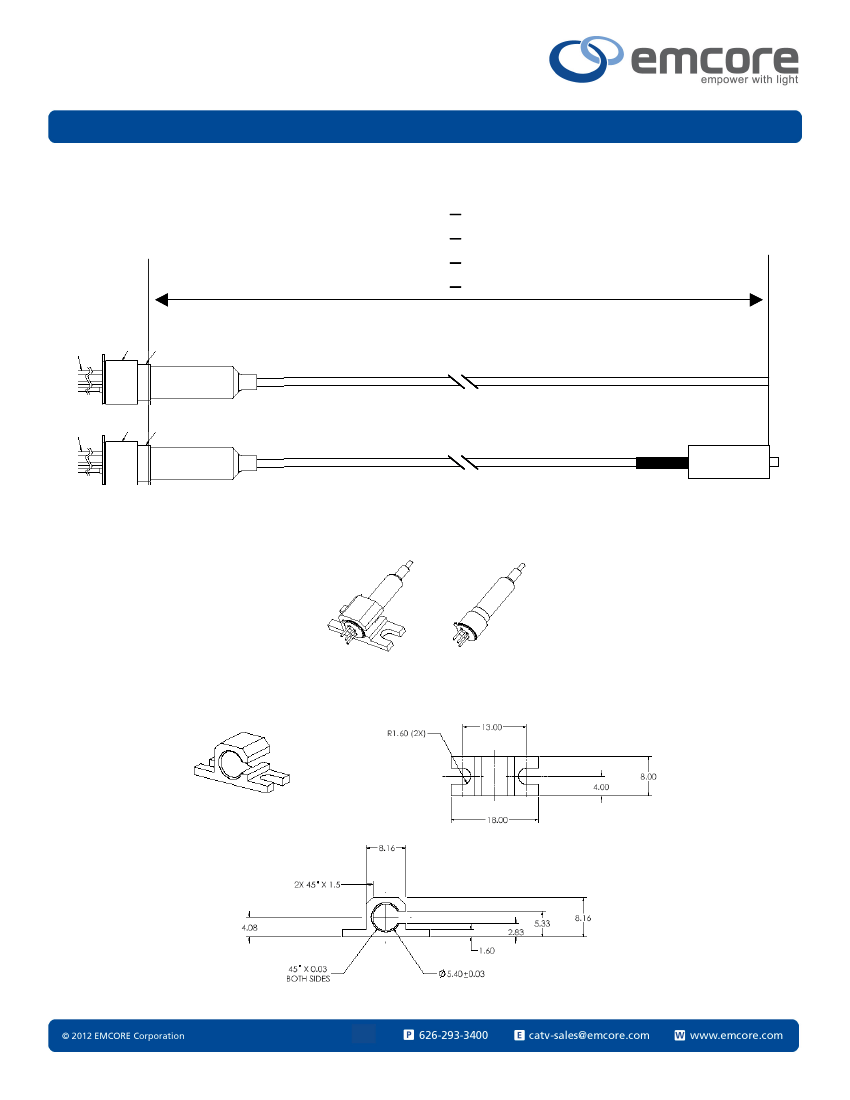

Fiber Length
115 + 15 cm
60 + 2 cm
47 + 2 cm
38 + 2 cm
Conn
Plastic Mounting Bracket
(Dimensions are in mm)
With Bracket
Without Bracket
| REV 2012.02
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2651A/2651E Broadband Photodiode
DATASHEET | FEBRUARY 2012
FIBER OPTICS

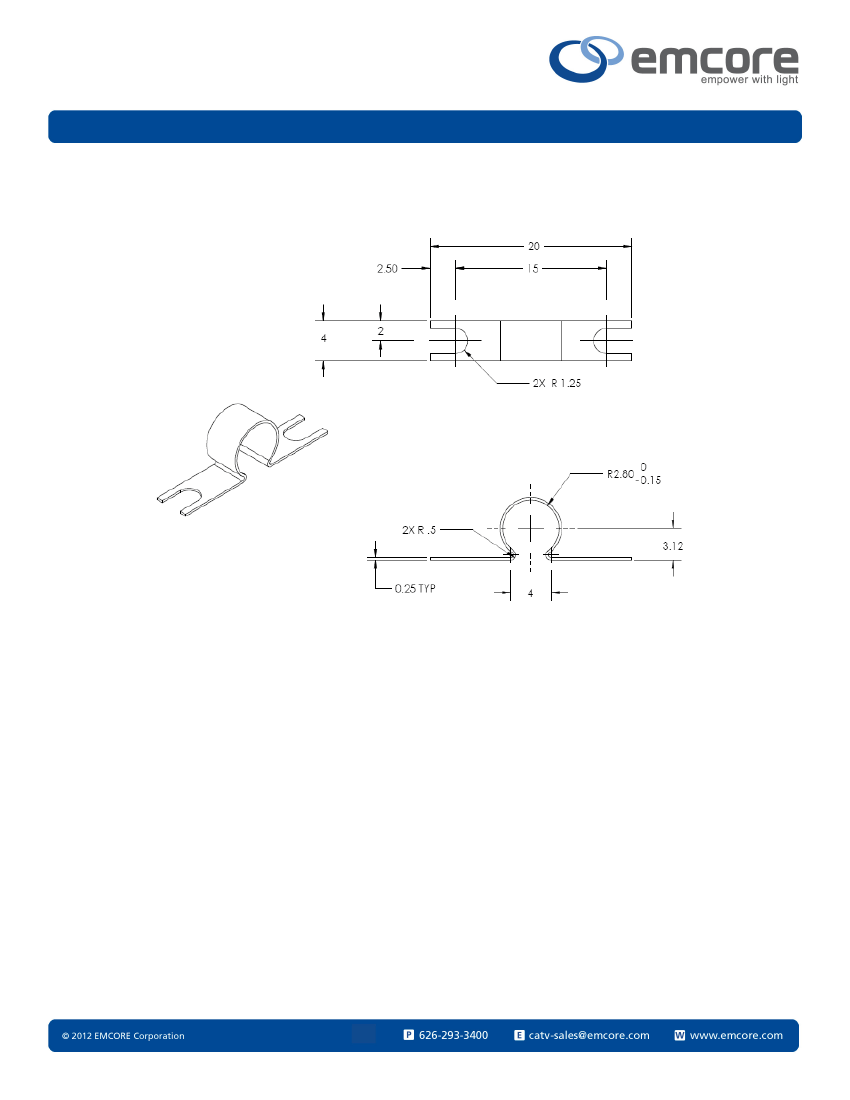

Metal Mounting Bracket
(Dimensions are in mm)
| REV 2012.02
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
