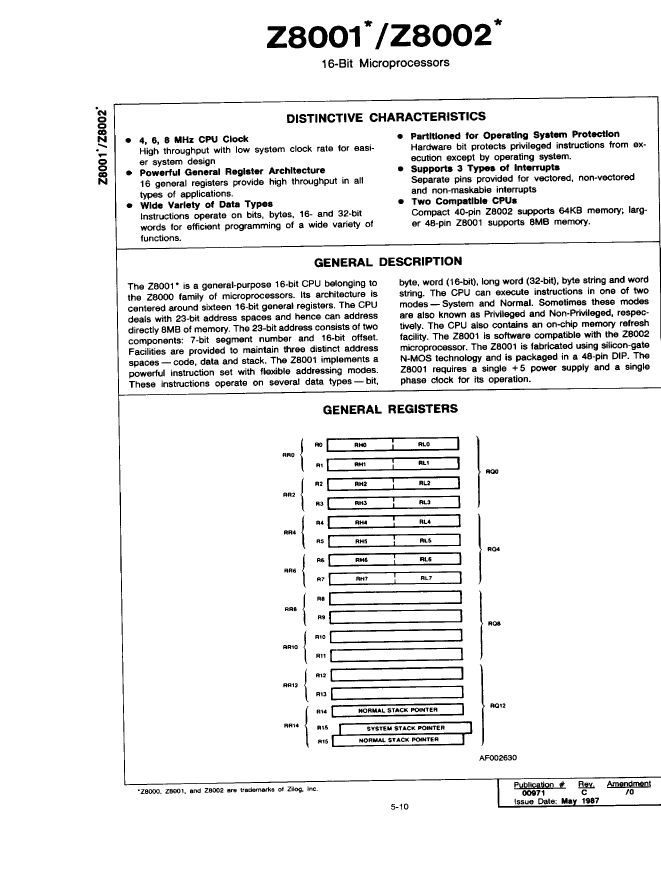

RISC Microprocessor, 16-Bit, 8MHz, MOS, CDIP48

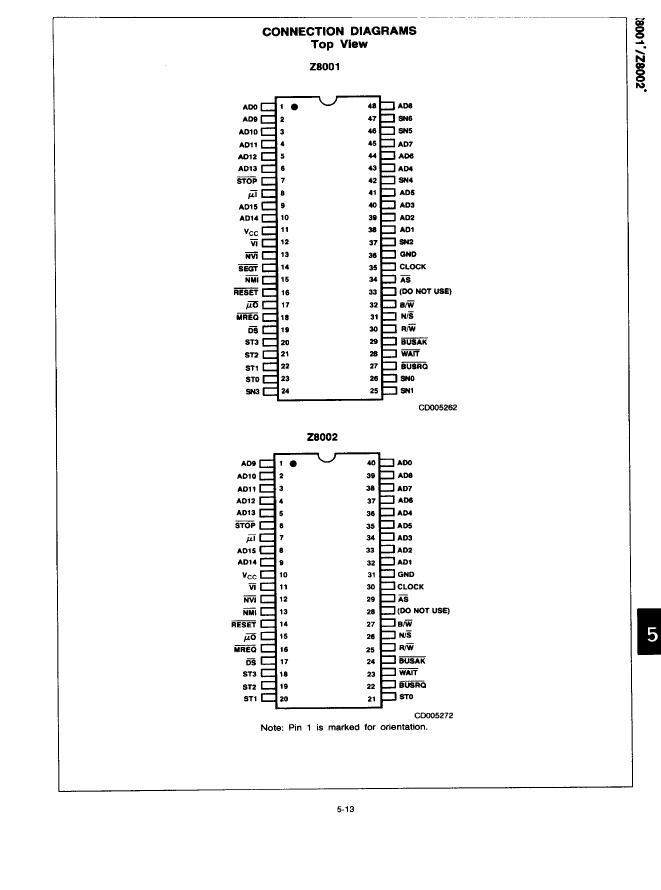

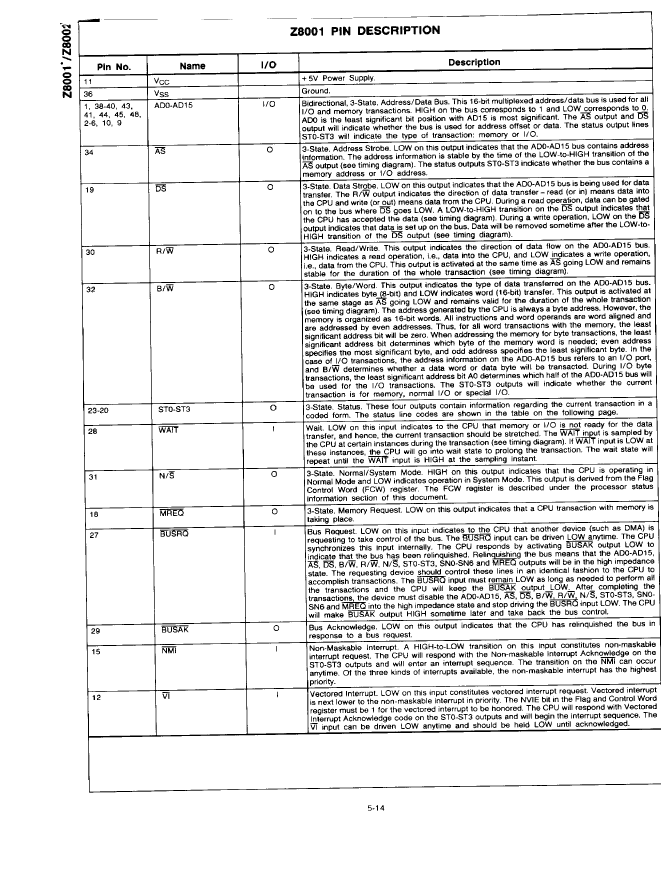

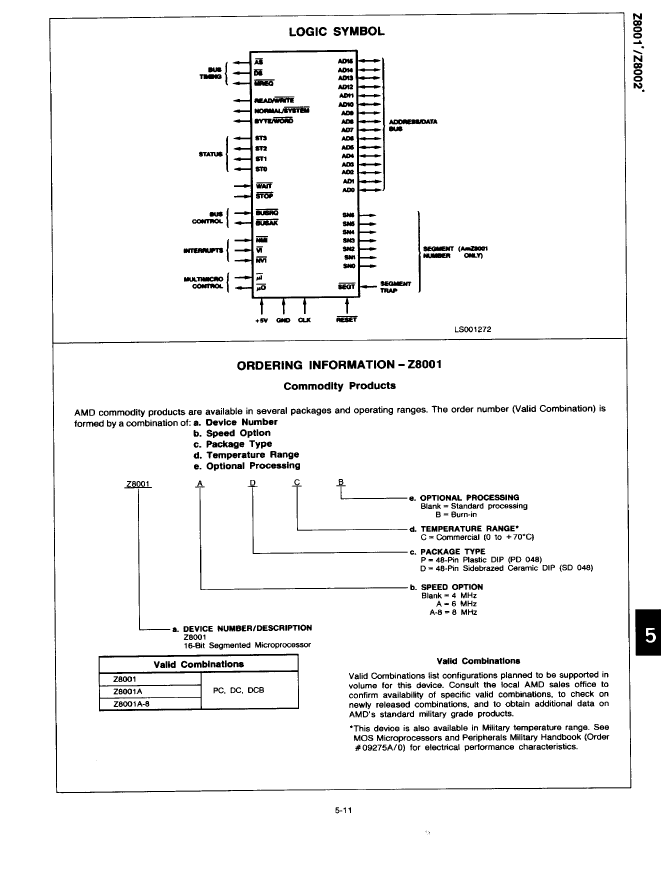

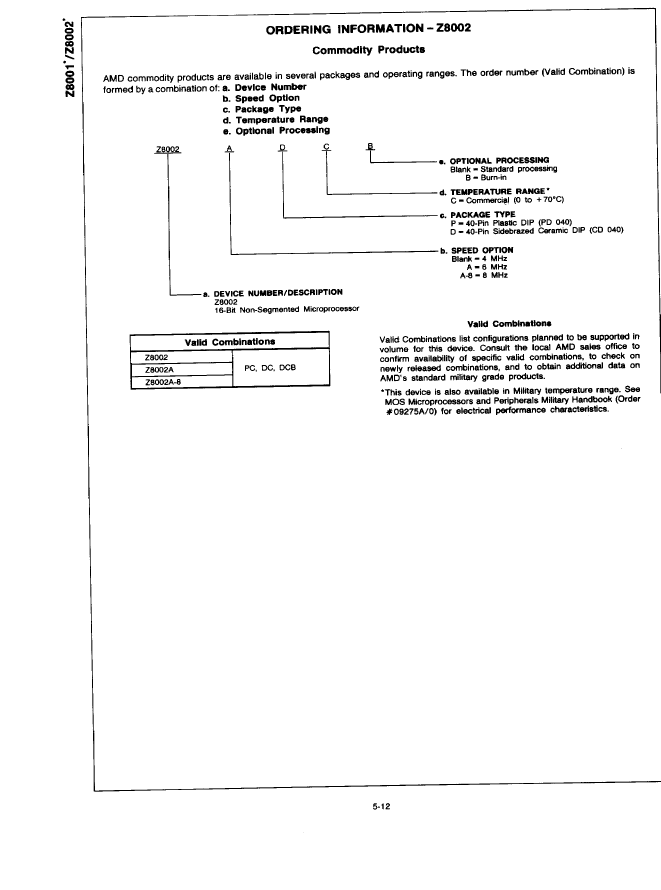

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| package instruction | DIP, DIP48,.6 |
| Reach Compliance Code | unknown |
| bit size | 16 |
| JESD-30 code | R-XDIP-T48 |
| JESD-609 code | e0 |
| Number of terminals | 48 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP48,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| speed | 8 MHz |
| surface mount | NO |
| technology | MOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| uPs/uCs/peripheral integrated circuit type | MICROPROCESSOR, RISC |
| Z8001A-8DCB | Z8001DC | Z8001APC | Z8001PC | Z8001A-8PC | Z8001A-8DC | Z8001ADC | |
|---|---|---|---|---|---|---|---|
| Description | RISC Microprocessor, 16-Bit, 8MHz, MOS, CDIP48 | Microprocessor, 16-Bit, 4MHz, NMOS, CDIP48, CERAMIC, DIP-48 | Microprocessor, 16-Bit, 6MHz, NMOS, PDIP48, PLASTIC, DIP-48 | Microprocessor, 16-Bit, 4MHz, NMOS, PDIP48, PLASTIC, DIP-48 | Microprocessor, 16-Bit, 8MHz, NMOS, PDIP48, PLASTIC, DIP-48 | Microprocessor, 16-Bit, 8MHz, NMOS, CDIP48, CERAMIC, DIP-48 | Microprocessor, 16-Bit, 6MHz, NMOS, CDIP48, CERAMIC, DIP-48 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | AMD | AMD | AMD | AMD | AMD | AMD | AMD |
| package instruction | DIP, DIP48,.6 | DIP, DIP48,.6 | DIP, DIP48,.6 | DIP, DIP48,.6 | DIP, DIP48,.6 | DIP, DIP48,.6 | DIP, DIP48,.6 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| bit size | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| JESD-30 code | R-XDIP-T48 | R-GDIP-T48 | R-PDIP-T48 | R-PDIP-T48 | R-PDIP-T48 | R-GDIP-T48 | R-GDIP-T48 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of terminals | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP48,.6 | DIP48,.6 | DIP48,.6 | DIP48,.6 | DIP48,.6 | DIP48,.6 | DIP48,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| speed | 8 MHz | 4 MHz | 6 MHz | 4 MHz | 8 MHz | 8 MHz | 6 MHz |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| technology | MOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| uPs/uCs/peripheral integrated circuit type | MICROPROCESSOR, RISC | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR |
| Parts packaging code | - | DIP | DIP | DIP | DIP | DIP | DIP |
| Contacts | - | 48 | 48 | 48 | 48 | 48 | 48 |
| Address bus width | - | 23 | 23 | 23 | 23 | 23 | 23 |
| boundary scan | - | NO | NO | NO | NO | NO | NO |
| maximum clock frequency | - | 4 MHz | 6 MHz | 4 MHz | 8 MHz | 8 MHz | 6 MHz |
| External data bus width | - | 16 | 16 | 16 | 16 | 16 | 16 |
| Format | - | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT |
| Integrated cache | - | NO | NO | NO | NO | NO | NO |
| low power mode | - | NO | NO | NO | NO | NO | NO |
| Number of external interrupt devices | - | 4 | 4 | 4 | 4 | 4 | 4 |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | - | 300 mA | 300 mA | 300 mA | 325 mA | 325 mA | 300 mA |
| Maximum supply voltage | - | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | - | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | - | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
