Model 2801 PRO
DATASHEET | JANUARY 2012
FIBER OPTICS
Model 2801 PRO 5 Channel Multimode CATV VSB/AM

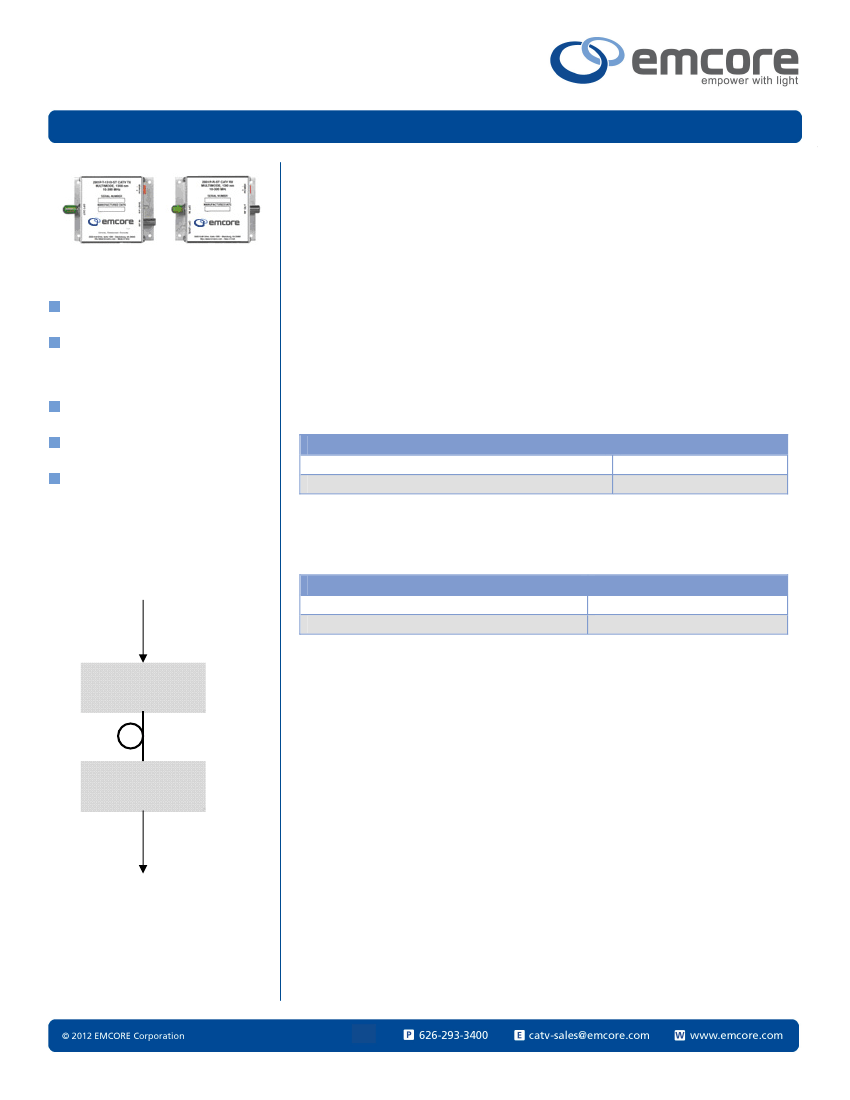

The Model 2801 PRO 5 Channel CATV VSB/AM video link provides a high-quality
system for transporting five video channels over multimode fiber with complete
EMI immunity. The use of state-of-the-art 1300 nm LEDs and PIN detectors
allows Model 2801 PRO to operate at exceptional performance levels. The link
offers excellent analog bandwidth that ranges from 5 to 350 MHz, allowing
transmission of all sub-band, low-band, FM, mid-band, and high-band channels.
This system also offers excellent performance at lower channel loadings. The
Model 2801 PRO provides an inexpensive option for transmitting high-quality
video, making it an obvious choice for video delivery services using multimode
fiber.
Features
Able to Transmit up to 5 CATV Channels
Over One Multimode Fiber
Supports Transmission of Sub-Band,
Low-Band, FM, Mid-Band, and High-
Band Channels, Adding Flexibility to the
System.
Plug-and-Play Design Assures Easy
Installation
The Most Comprehensive Product of its
Type Available in the Industry.
Ideal for Small Corporate TV Video
Distribution, Campus Media Retrieval
Systems, Tele-Conferencing
Applications, or as a Return Path
Transmitter for Larger Video Systems.
5 Channel Multimode Transmitter & Receiver Part Numbers
Description
Stand-Alone Transmitter, 1300 nm, ST Optical Connector
Stand.-Alone Receiver, 1300 nm, ST Optical Connector
Part Number
2801P-T-1310-ST
2801P-R-ST
Note: Power supply part number PS095 included.
Accessory Part Numbers
RF In (5-350 MHz)
Description
Transmitter Stand-Alone Power Supply, +9 Volts DC
Receiver Stand-Alone Power Supply, +9 Volts DC
Part Number
PS095
PS095
2801 PRO
Transmitter
Multimode
Fiber
2801 PRO
Receiver
RF Out (5-350 MHz)
| REV 2012.01
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
Model 2801 PRO
DATASHEET | JANUARY 2012
FIBER OPTICS
RF and Optical Characteristics
Parameter
Operating Wavelength
Lower Bandwidth
Upper Bandwidth
Optical Output Power
Optical Loss Range
RF Impedance
Carrier-to-Noise Ratio
Min
1290
-
350
-8.0
0
-
Typ
1300
2
400
-7.0
-
75
See Graph
Max
1330
5
-
-6.0
9
-
Units
nm
MHz
MHz
dBm
dB
Ohms
dB

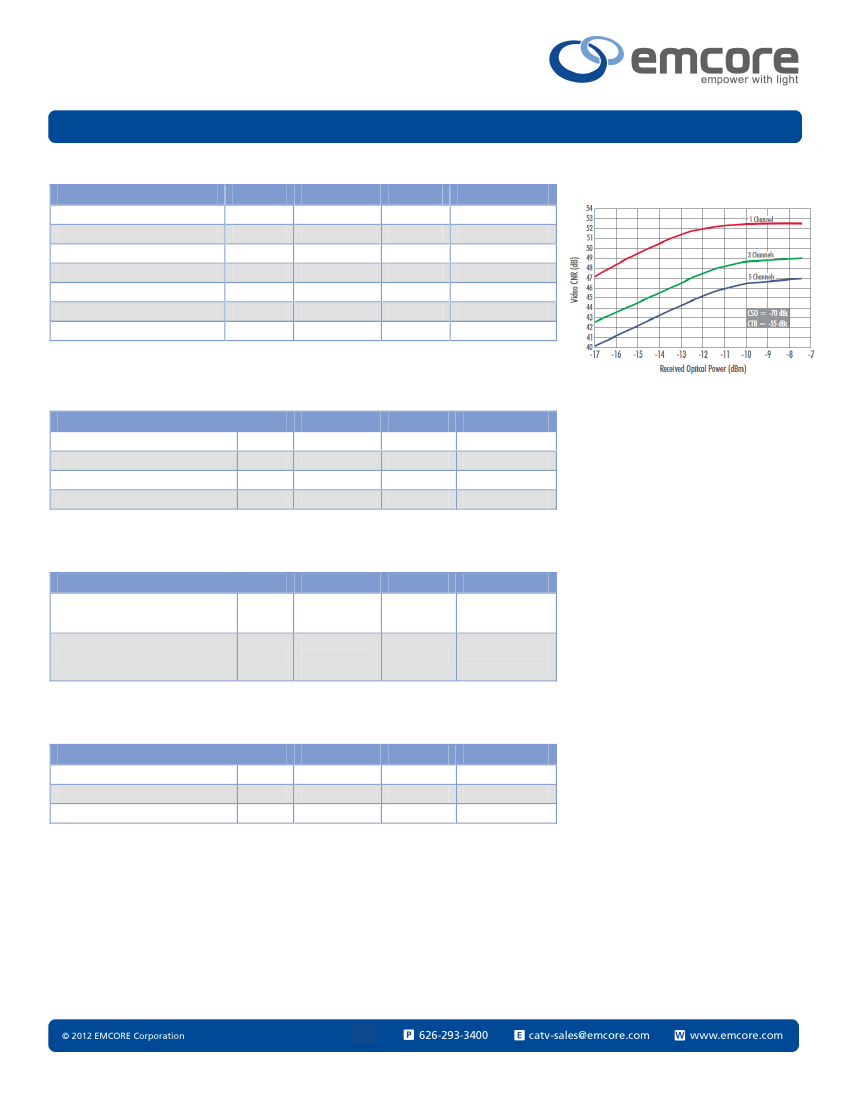

Carrier-to-Noise Performance
System performance specifications indicated for use with 62.5/125
µm
multimode fiber.
Electrical Characteristics
Parameter
Transmitter Power Supply Voltage
Receiver Power Supply Voltage
Transmitter Power Supply Current
Receiver Power Supply Current
Min
+9.0
+9.0
-
-
Typ
-
-
250
100
Max
+11.0
+11.0
270
110
Units
VDC
VDC
mA
mA
Physical Characteristics
Parameter
Weight
Min
-
Typ
6
170
3.75 x 2.95 x
1.12
95 x 75 x 29
Max
-
Units
oz.
g
in.
mm
Dimensions
-
-
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Min
+10
-20
10
Typ
-
-
-
Max
+45
+70
95
Units
O
O
C
C
%
| REV 2012.01
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
