Model 2805
110 Channel CATV Private Network Solution (PNS)
DATASHEET | JANUARY 2012
FIBER OPTICS

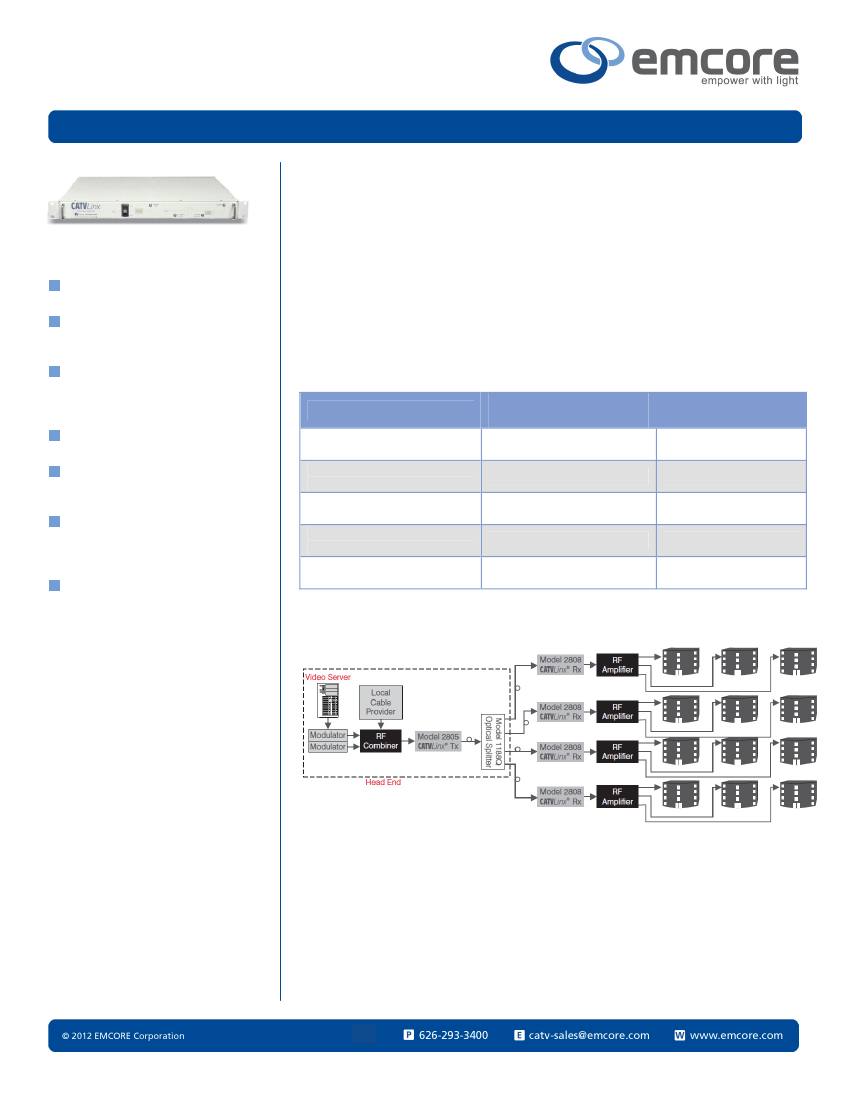

Features
Transmits up to 110 Channels Over One
Singlemode Fiber at 1310 nm.
VSB/AM Transmission Ensures
Compatibility with Standard CATV
Modulators, Processors, etc.
The Transmitter Includes Status
Indicator LED’s that Provide Easy
Assessment of the Transmitter’s
Performance.
Excellent for Structured In-Building
Premise Wiring Video Distribution. .
High Capacity Backbone Transport for
Multiple Data Services (RS-232, T1/E1,
Ethernet, etc.) Via CATV RF Modem.
CATV HFC Distribution Network,
Distance Learning, CCTV Video
Surveillance, Campus Video Distribution,
Teleconferencing and more.
+13 dBm Optical Output Power Supports
Links to beyond 20 km.
The Model 2805 110 Channel CATV PNS transmitter is part of a robust system for
transporting up to 110 Channels of VSB/AM modulated signals over a singlemode optical
fiber. The system provides 40-870 MHz of usable bandwidth for video signals stacked at 6
MHz intervals. A low loss singlemode fiber allows full channel loading to beyond 20 km
while maintaining a good carrier-to-noise ratio. The Model 2805 may be used with the
Model 2807 mini-node receiver for use in return path and multiple splitter applications or
with the Model 2808 receiver for basic 110 channel CATV transmission. In all cases, the
link provides excellent performance for many demanding applications such as broadband
LANs, distance learning, and multiple data services.
110 Channel Transmitter Part Numbers
Description
1RU Transmitter, +6 dBm Optical
Output Power
1RU Transmitter, +8 dBm Optical
Output Power
1RU Transmitter, +10 dBm
Optical Output Power
1RU Transmitter, +12 dBm
Optical Output Power
1RU Transmitter, +13 dBm
Optical Output Power
Part Number (SC/APC
Optical Connector)
2805TD-SCSP/06
2805TD-SCSP/08
2805TE-SCSP/10
2805TF-SCSP/12
2805TG-SCSP/13
Part Number (FC/APC
Optical Connector
2805TD-SCAP/06
2805TD-SCAP/08
2805TE-SCAP/10
2805TF-SCAP/12
2805TG-SCAP/13
| REV 2012.01
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
Model 2805
110 Channel CATV Private Network Solution (PNS)
DATASHEET | JANUARY 2012
FIBER OPTICS

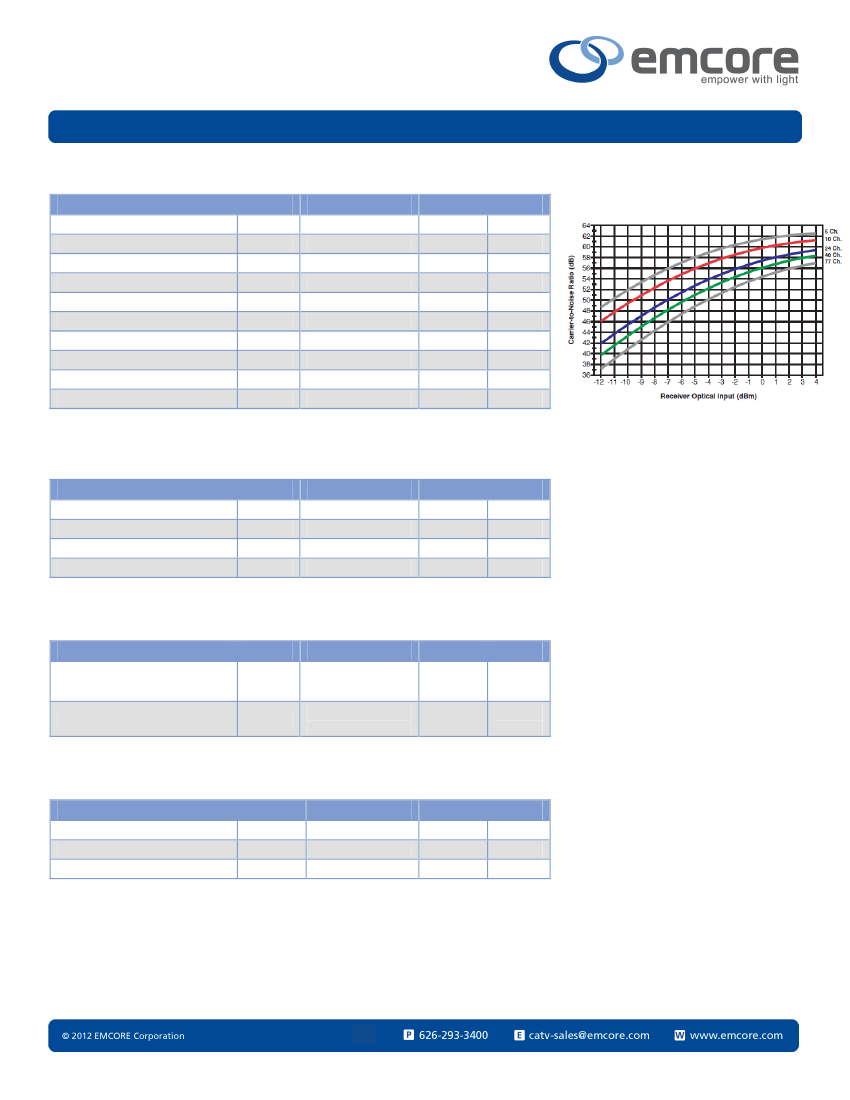

RF and Optical Characteristics
Parameter
Channel Loading
Operating Wavelength
Bandwidth
Input/Output RF Impedance
Side Mode Suppression Ratio
Backreflection Tolerance
Required Fiber Bandwidth
Composite Second Order (CSO)
Composite Triple Beat (CTB)
Carrier-to-Noise Ratio
Min
-
1290
40
-
30
-
2,000
-
-
Typ
-
1310
-
75
-
-
-
-60
-65
See Graph
Max
110
1330
870
-
-
-50
-
-
-
Units
ch.
nm
MHz
Ohms
dB
dB
MHz
dBc
dBc
dB
Carrier-to-Noise Performance
System performance specifications indicated for use with 9/125
µm
singlemode fiber
.
Electrical Characteristics
Parameter
Power Supply Voltage
Power Supply Frequency
Power Dissipation
Fuse Rating (Slow Blow)
Min
-
50
-
Typ
120
60
20
1.25
Max
240
-
-
Units
V
AC
Hz
Watts
A
Physical Characteristics
Parameter
Weight
Dimensions
Min
-
-
Typ
5.5
2.5
19 x 1.72 x 12.1
483 x 43.7 x 307
Max
-
-
Units
lbs
kg
in
mm
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Min
0
-20
0
Typ
-
-
-
Max
+45
+70
90
Units
O
O
C
C
%
| REV 2012.01
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
