D3PJ20F: DescriptionDirectional Coupler, 1700MHz Min, 2000MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size78KB，3 Pages; ManufacturerEMC Technology RF Labs; Environmental Compliance

Download Datasheet Parametric Compare View All

D3PJ20F Overview

Directional Coupler, 1700MHz Min, 2000MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE-4

D3PJ20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EMC Technology RF Labs
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

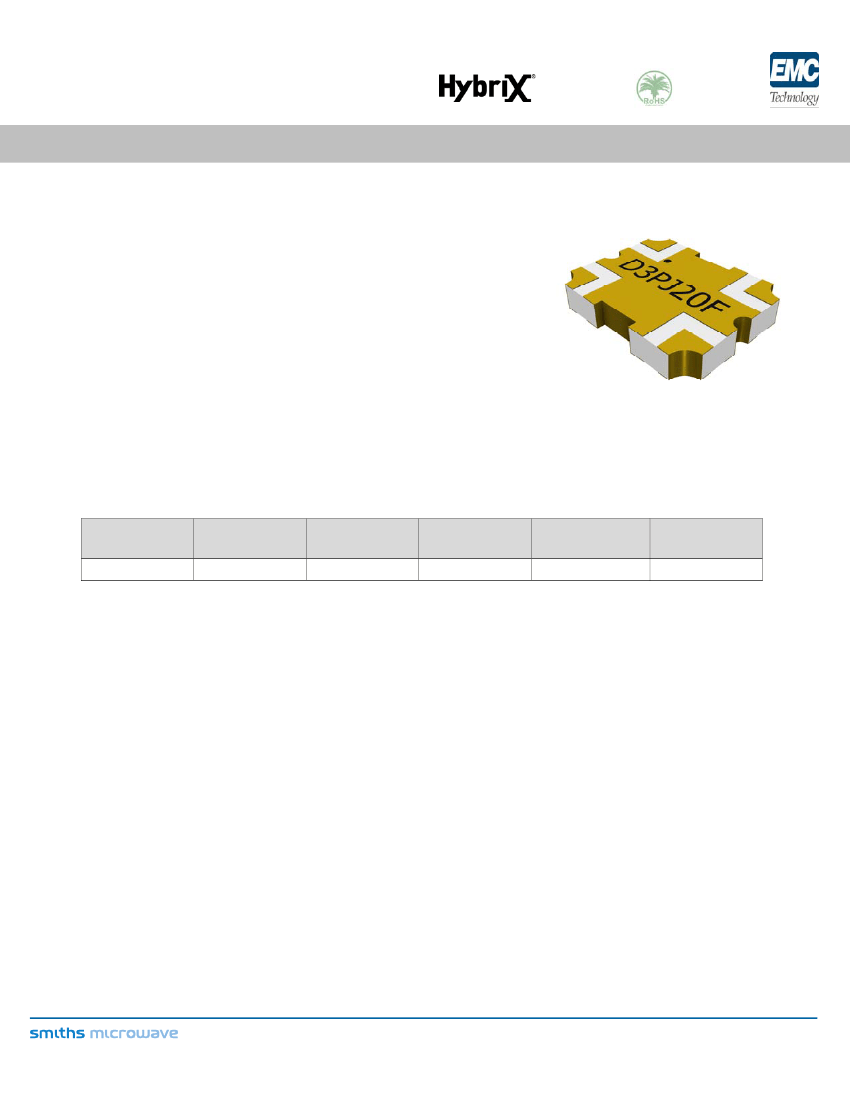

COUPLER

DIRECTIONAL 80 WATT

DATA SHEET

FEATURES

Low Profile Surface Mount Package

High Power

Low Insertion Loss

High Directivity

High Reliability

PART SERIES: D3PJ20F

APPLICATIONS

Power Amplifiers

Power Monitors

Reflectometers

Signal Distribution Networks

Antenna Feeds

Switch Networks

SHEET 1 OF 3

Dwg D3PJ20F

EN 13-3456

Revision -

GENERAL DESCRIPTION

EMC Technology offers high performance directional couplers in a low profile, surface

mount package. These couplers are designed for demanding applications where high

power, low loss and excellent directivity are required.

ORDERING INFORMATION

Part Identifier:

D3PJ20F

SPECIFICATIONS

1.0 ELECTRICAL

Frequency

1700 - 2200 MHz

Coupling

20 ± 1.0 dB

Insertion

Loss

0.15 dB Max

VSWR

1.2:1 Max

Directivity

18 dB Min

Power

Handling

80 Watts CW

2.0 ENVIRONMENTAL

Operating Temperature:

-55ºC to +125ºC

3.0 MARKING

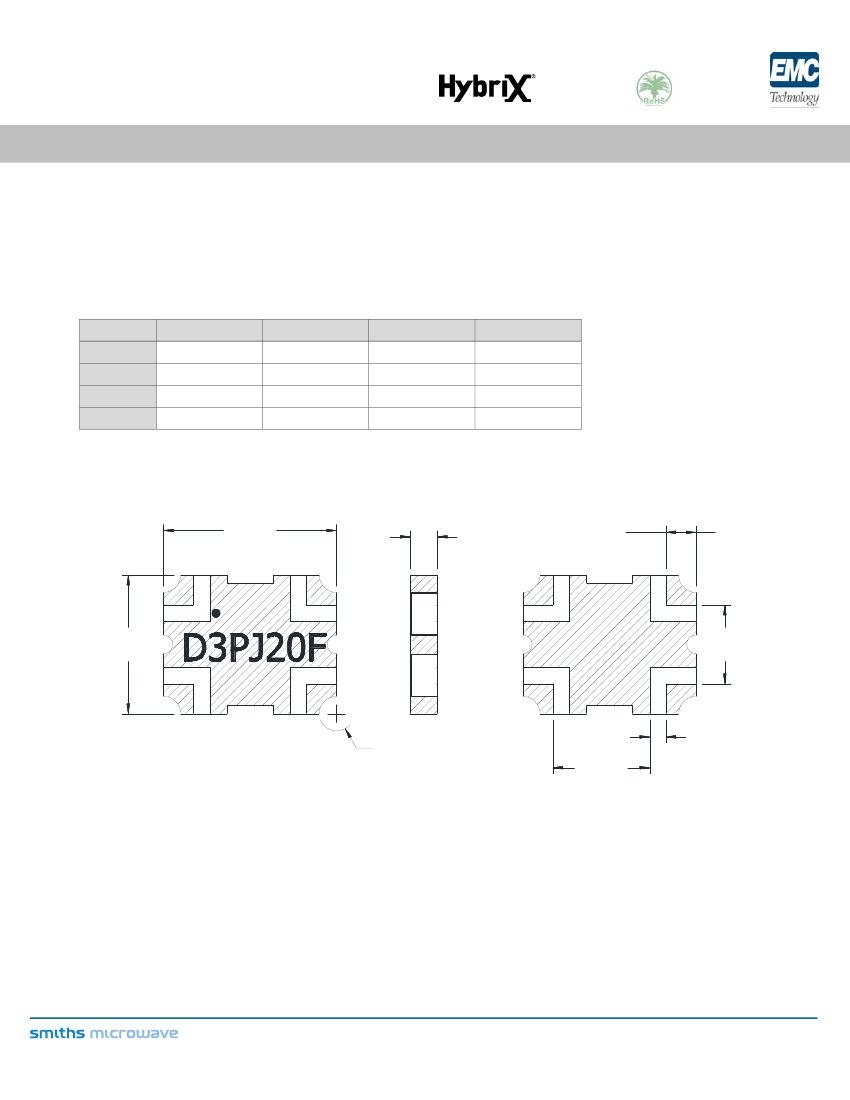

Part Number and Pin 1 Indicator

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Amplitude Balance and VSWR

Test Data Requirements

No Test Data Required

Data Retention – 12 months

5.0 PACKAGING

Standard:

Tape and Reel

Note: Specifications are subject to change.

423F107 Rev-

Cage Codes: 24602 / 2Y194

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

D3PJ20F Related Products

	D3PJ20F
Description	Directional Coupler, 1700MHz Min, 2000MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE-4
Is it Rohs certified?	conform to
Maker	EMC Technology RF Labs
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
