DBX-185H datasheet, PDF - EEWORLD Datasheet

DBX-185H: DescriptionDouble Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size74KB，2 Pages; ManufacturerAvantek Inc

Download Datasheet Parametric Compare View All

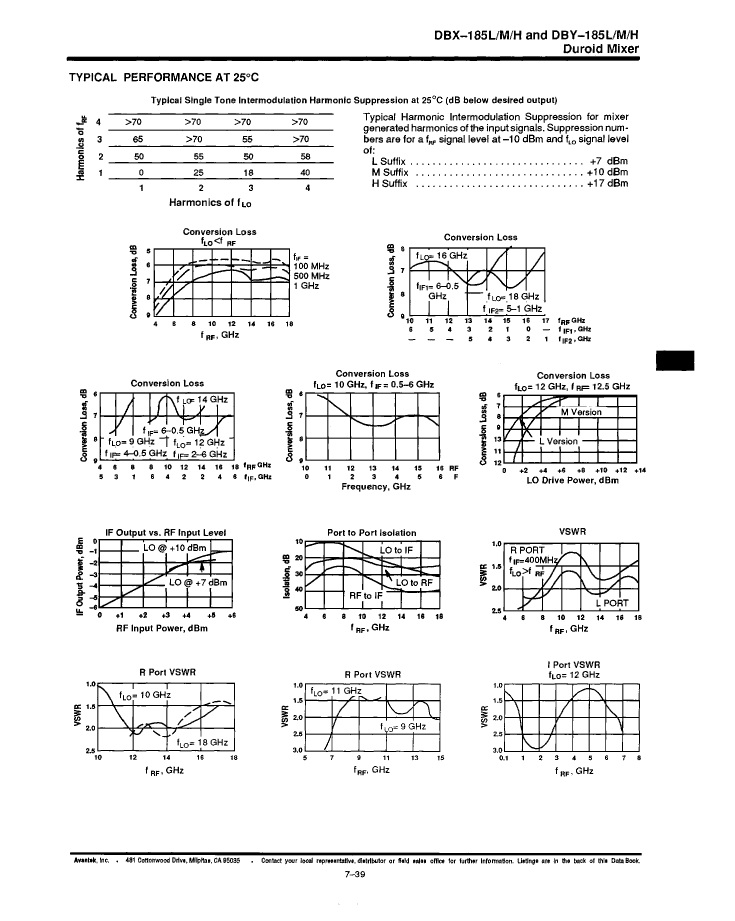

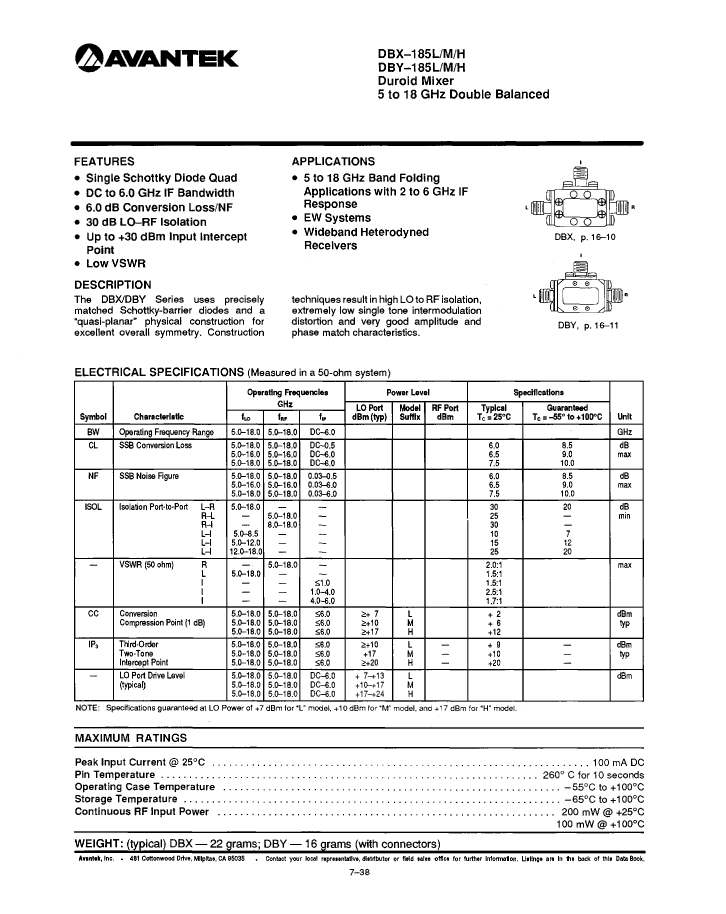

DBX-185H Overview

Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max

Parameter Name	Attribute value
Maker	Avantek Inc
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum frequency conversion loss	10 dB
Maximum input power (CW)	23 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency	5000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED

DBX-185H Related Products

	DBX-185H	DBX-185M	DBY-185H	DBY-185M	DBY-185L	DBX-185L
Description	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max	Double Balanced Mixer, 5000MHz Min, 18000MHz Max, 10dB Conversion Loss-Max
Maker	Avantek Inc	Avantek Inc	Avantek Inc	Avantek Inc	Avantek Inc	Avantek Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum frequency conversion loss	10 dB	10 dB	10 dB	10 dB	10 dB	10 dB
Maximum input power (CW)	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
