ASP0290208 Overview

Board Connector,

ASP0290208 Parametric

Parameter Name	Attribute value
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE

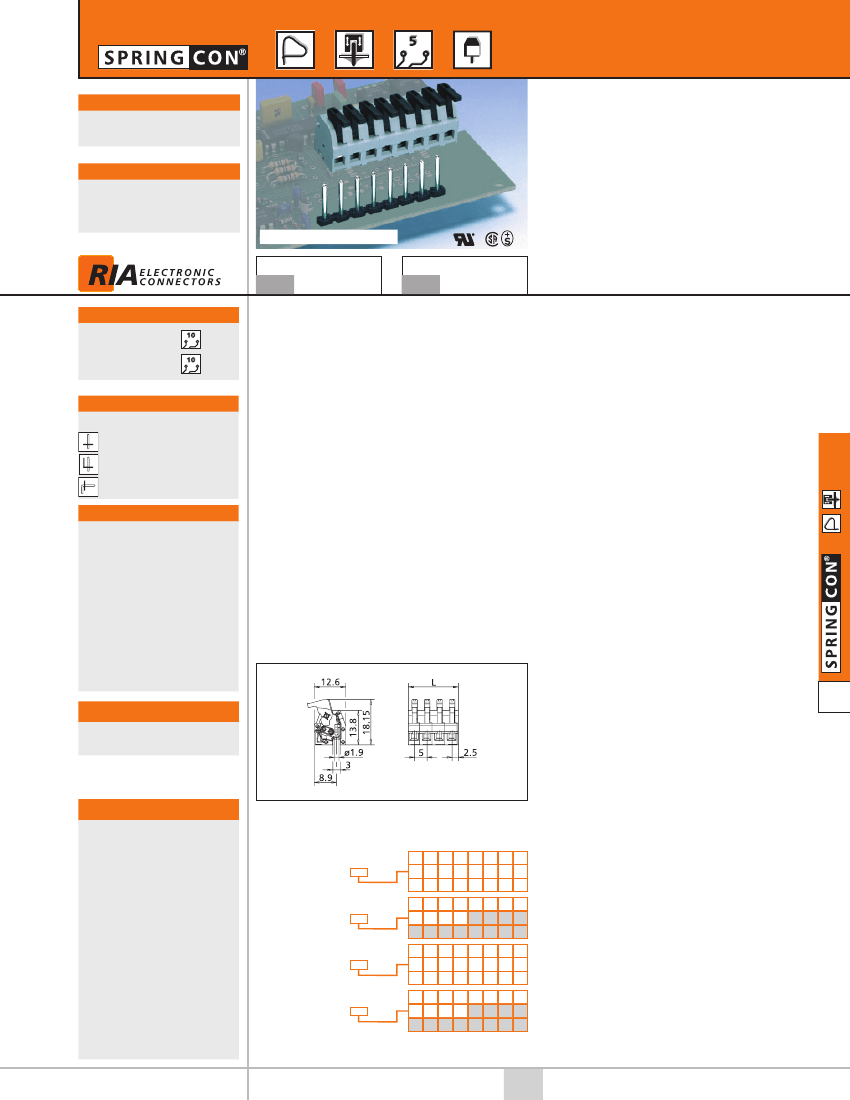

Preview

Download Datasheet

View All

Previously type 607/507

mm to inch

1 inch = 25.4 mm

1 mm = .040 inches

Complete cross reference

see page EA-6

Note

We have changed the

SPRINGCON type names.

Complete cross reference

see page EA-6.

Designed to IEC 60664-1

ASP

long eccentric lever

Additional Centerline

Type ASP02

Type ASP01

Voltage

short eccentric lever

Electrical Data

300 V - centerline 5 mm

600 V - centerline 10 mm

18 - 28 AWG

4 mm

Current

Wire Range

Wire strip length

Headers that mate with

Type ASP02

and

Type ASP01

Type 17

Type 41

Type 39

Page H-13

Page H-18

Mechanical Data

Housing

Eccentric lever

Spring clamp

Contact pin

Colors

Pole sizes

UL 94V-0 -40 °F to 189 °F

(-40 °C to 105 °C)

UL 94HB -40 °F to 230 °F

(-40 °C to 110 °C)

stainless chrome

molybdenum steel

copper alloy, tin plated

gray

(optional colors see margin)

2 to 24 - centerline 5 mm

2 to 12 - centerline 10 mm

Accessories

for

Type ASP02

and

Type ASP01

Mounting flange

for PC boards with

1 mm thickness

720036-01-4

Page J-5

Mounting flange

for PC boards with

1.5 mm thickness

720036-02-2

Page J-5

Additional material data - pages EA-3 to EA-5

Dimensions (mm)

Optional colors

black, light blue, green,

red, dark blue

L = (circuits - 1) x centerline + 5

Suffixes for color

suffix

color

black

gray (standard)

light blue

green

red

dark blue

Part Numbers

ASP02

(other circuits please consult factory)

Complete the part number

by adding the pole size.

centerline 5 mm

Part No.

ASP02 5

ASP02

centerline 10 mm

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

02 03 04 05 06 07 08

09 10 11 12

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

02 03 04 05 06 07 08

09 10 11 12

Part No.

ASP02 9

ASP01

centerline 5 mm

For different sequences of

colors within the same termi-

nal block, i.e. black, red,

green, add suffix

multiple color

Please attach the color

sequence to your order or

consult factory.

Part No.

ASP01 5

ASP01

centerline 10 mm

Part No.

ASP01 9

= color suffix - Please replace “XX” by the requested

color suffix (see margin).

RIA electronic, Inc.

430 Industrial Way West, Eatontown, NJ 07724

phone 1-888-722-5625

•

fax 732-389-9066

•

www.riaelectronic.com

EB-3

Subject to technical changes and printing errors.
