XMAP-06V-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> XMAP-06V-S

XMAP-06V-S: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size145KB，3 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

XMAP-06V-S Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT

XMAP-06V-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACT: SXA-001T-P0.6L
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	XMA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

2.5mm

XMA

CONNECTOR

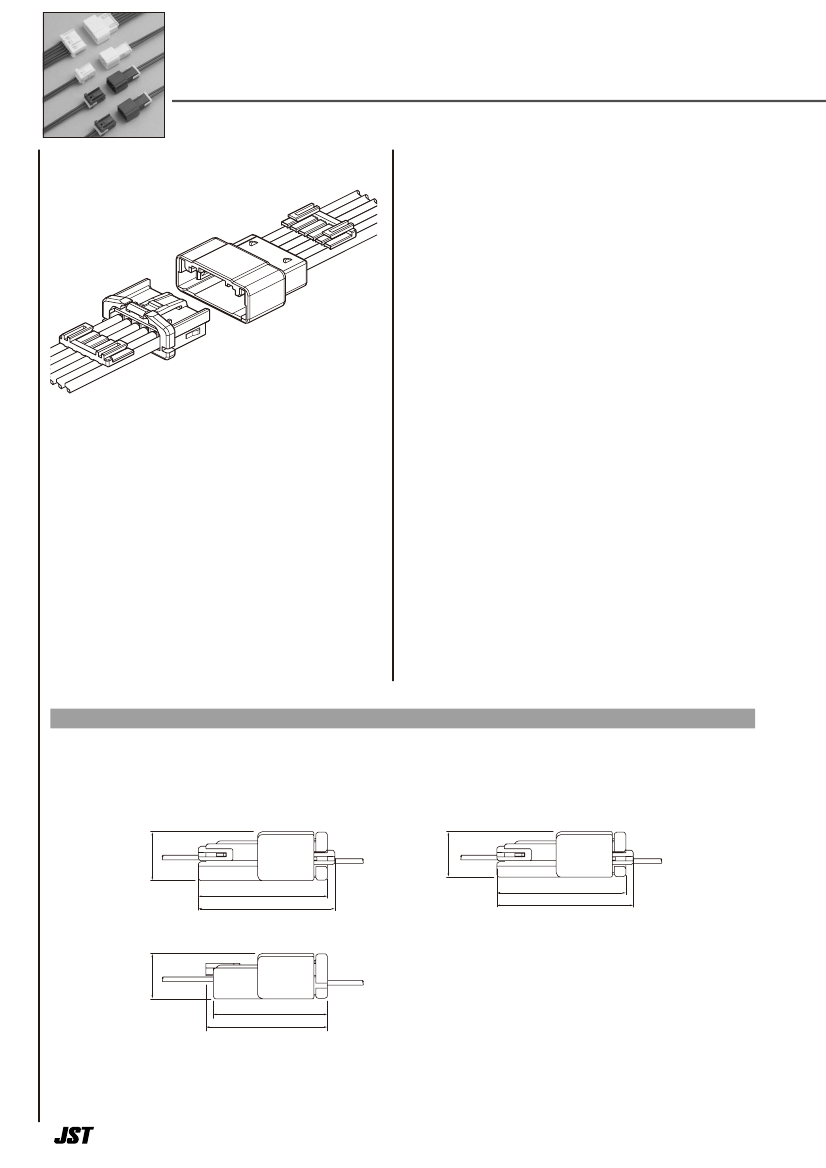

pitch/Disconnectable Crimp style Wire-to-wire connectors

Specifications –––––––––––––––––––

• Current rating: 3A AC, DC (AWG#22)

• Voltage rating: 250V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance: 500M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG#26 to #22

0.13mm

to 0.33mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

This connector is a 2.5mm pitch wire-to-

wire connector, having incomplete mating

prevention mechanism. 2-circuit and 3-

circuit connectors have control key to

prevent connector from mating with

incorrect circuits, thus, several same

circuit connectors can be used.

• Inertial lock structure with side lock

mechanism

• 3 type combination of control key with one

kind of circuit

• Secure locking structure

• Finger-friendly design

Standards

––––––––––––––––––––––

Certified LR20812

Recognized E 60389

Assembly layout

〈2,

3 circuits〉

〈4,

5 circuits〉

9.85

9.15

(25.9)

(27.4)

(25.9)

(27.4)

〈6

circuits〉

9.15

(22.9)

(24.4)

Note: The dimensions above should serve as a guideline. Contact JST for details.

XMAP-06V-S Related Products

	XMAP-06V-S	XMAP-02V-1-S	XMAP-02V-2-R	XMAP-02V-3-E	XMAP-03V-1-S	XMAP-03V-2-R	XMAP-04V-S	XMAP-05V-S
Description	Board Connector, 6 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 2 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 2 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 2 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 3 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 3 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 4 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT	Board Connector, 5 Contact(s), 1 Row(s), Female, Crimp Terminal, Plug, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	JST	JST	JST	JST	JST	JST	JST	JST
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L	COMPATIBLE CONTACT: SXA-001T-P0.6L
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	2	2	2	3	3	4	5
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
