Z86C0708PEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C0708PEC

Z86C0708PEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，34 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C0708PEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,

Z86C0708PEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T18
length	22.86 mm
Number of I/O lines	14
Number of terminals	18
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
rom(word)	2048
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

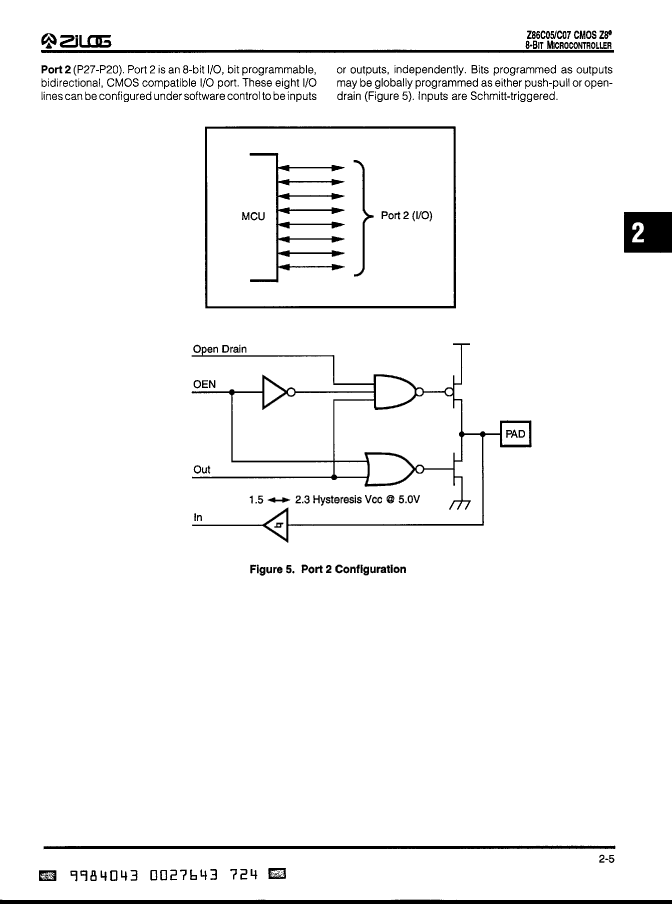

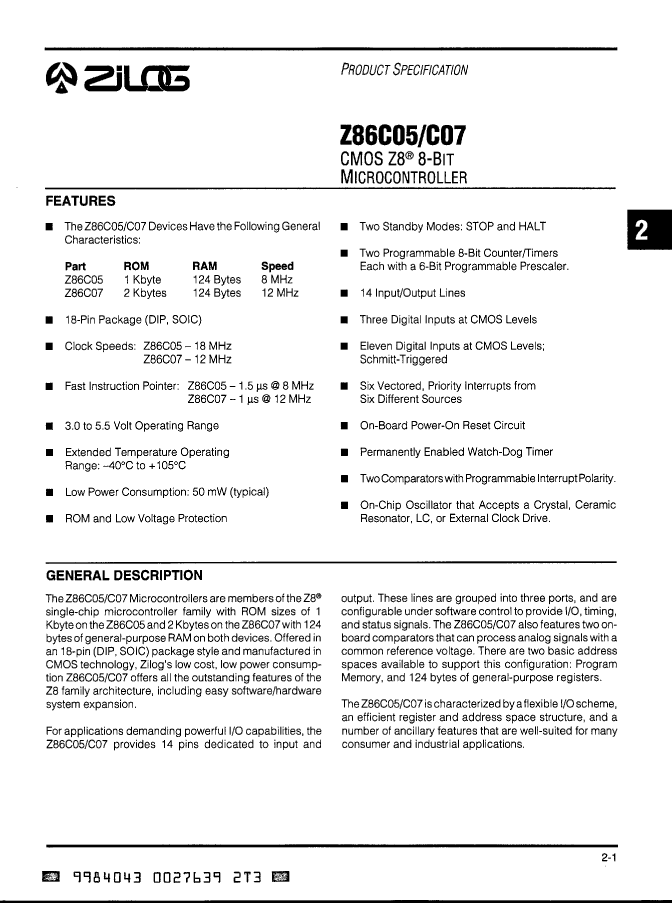

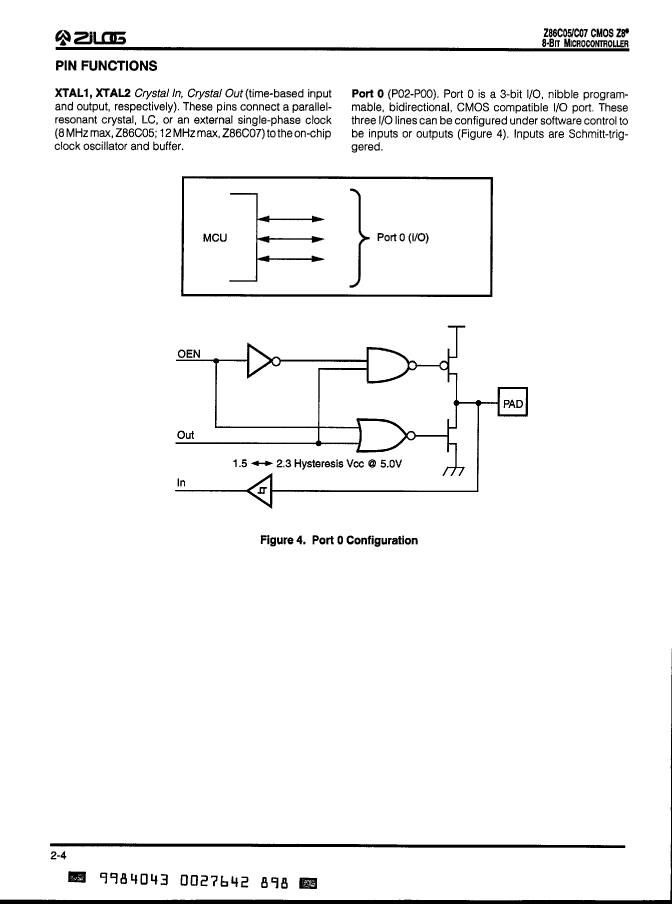

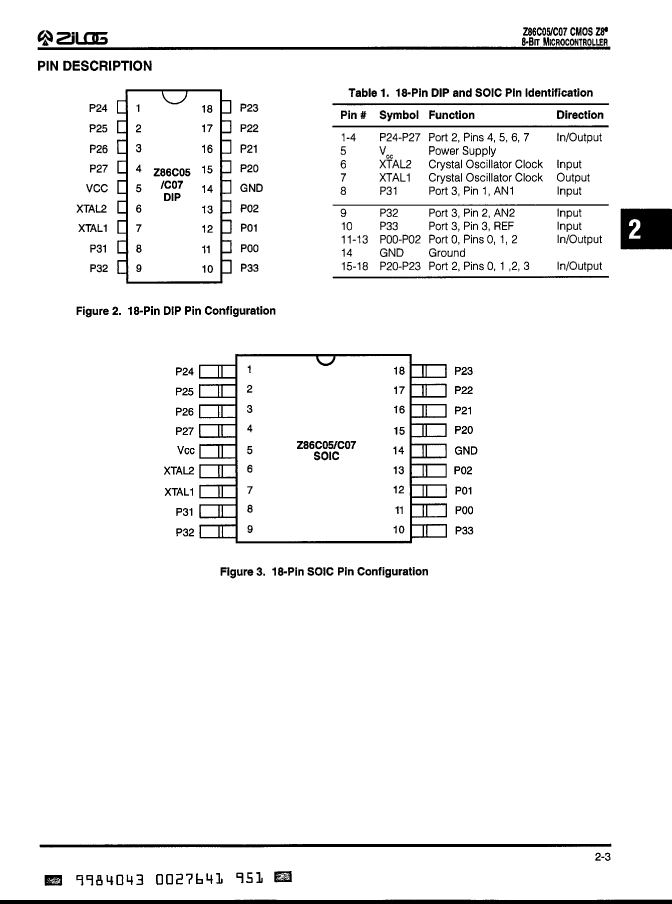

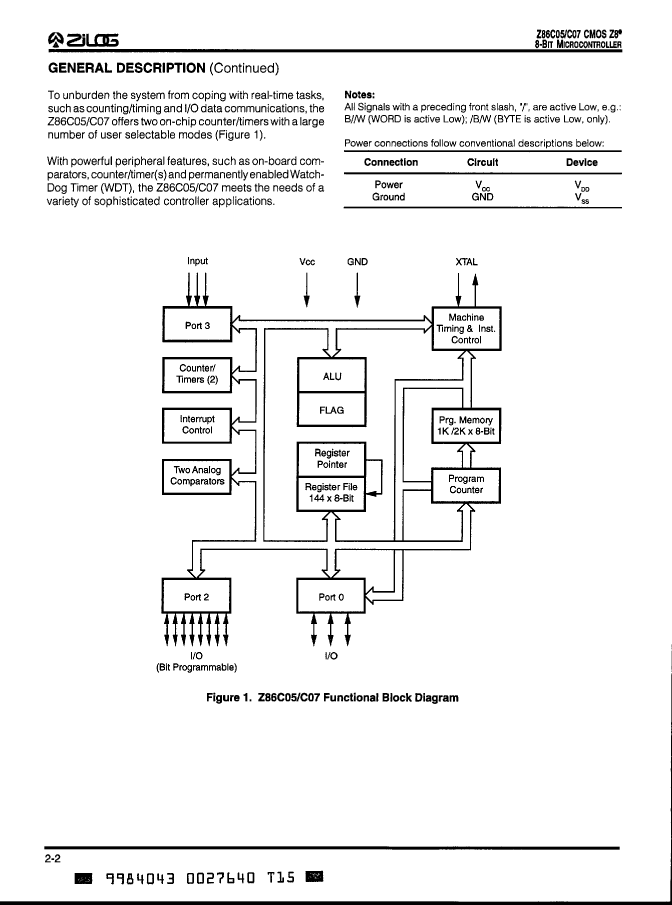

Z86C0708PEC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86C0708PEC Related Products

	Z86C0708PEC	Z86C0712PSC	Z86C0712SSC	Z86C0708SEC	Z86C0708SSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 6MHz, CMOS, PDIP18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 6MHz, CMOS, PDSO18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO
bit size	8	8	8	8	8
CPU series	Z8	Z8	Z8	Z8	Z8
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T18	R-PDIP-T18	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18
length	22.86 mm	22.86 mm	11.55 mm	11.55 mm	11.55 mm
Number of I/O lines	14	14	14	14	14
Number of terminals	18	18	18	18	18
Maximum operating temperature	105 °C	70 °C	70 °C	105 °C	70 °C
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	SOP18,.4	SOP18,.4	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	124	124	124	124	124
rom(word)	2048	2048	2048	2048	2048
ROM programmability	MROM	MROM	MROM	MROM	MROM
speed	8 MHz	12 MHz	12 MHz	8 MHz	8 MHz
Maximum slew rate	11 mA	15 mA	15 mA	11 mA	11 mA
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.5 mm	7.5 mm	7.5 mm
Maker	IXYS	IXYS	IXYS	-	-
