CP0402P1890BNTR: DescriptionDirectional Coupler, 1880MHz Min, 1900MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4; CategoryWireless rf/communication Radio frequency and microwave; File Size113KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

CP0402P1890BNTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CP0402P1890BNTR	-	-	View	Buy Now

CP0402P1890BNTR Overview

Directional Coupler, 1880MHz Min, 1900MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4

CP0402P1890BNTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	LGA4(UNSPEC)
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum insertion loss	0.35 dB
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	1900 MHz
Minimum operating frequency	1880 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Encapsulate equivalent code	LGA4(UNSPEC)
RF/Microwave Device Types	DIRECTIONAL COUPLER
surface mount	YES
technology	HYBRID
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

Thin Film Directional Coupler

CP0402P High Directivity, Tight Coupling Tolerance

GENERAL DESCRIPTION

ITF (Integrated Thin-Film) TECHNOLOGY

The CP0402P Series High Directivity, Tight Coupling Tolerance LGA

Coupler is based on the proprietary RFAP Thin-Film multilayer technology.

The technology provides a miniature part with excellent high frequency

performance and ugged construction for reliable automatic assembly.

The ITF Coupler is offered in a variety of frequency bands compatible

with various types of high frequency wireless systems.

DIMENSIONS:

(Bottom View)

B

A

millimeters (inches)

S

L

APPLICATIONS

•

Wireless communications

Wireless LAN’s

GPS

WiMAX

LAND GRID ARRAY

ADVANTAGES

•

Inherent Low Profile

Self Alignment during Reflow

Excellent Solderability

Low Parasitics

Better Heat Dissipation

Power Rating 3W RF Continuous

T

W

L

W

T

1.00±0.05

(0.040±0.002)

0.58±0.04

(0.023±0.002)

0.35±0.05

(0.014±0.002)

A

B

S

0.20±0.05

(0.008±0.002)

0.18±0.05

(0.007±0.002)

0.05±0.05

(0.002±0.002)

3

HOW TO ORDER

CP

Style

0402

Size

0402

P

Type

±0.5dB

Tight Tolerance

XXXX

Frequency

MHz

X

Sub-Type

N

Termination

LGA

Lead-Free

TR

Taped & Reeled

QUALITY INSPECTION

Finished parts are 100% tested for electrical parameters and

visual characteristics. Each production lot is evaluated on a

sample basis for:

• Static Humidity: 85°C, 85% RH, 160 hours

• Endurance: 125°C, I

R

, 4 hours

TERMINALS (Top View)

OUT

50 OHM

LEAD-FREE COMPATIBLE

COMPONENT

IN

COUPLING

TERMINATION

Nickel/Lead-Free Solder coating compatible with automatic

soldering technologies: reflow, wave soldering, vapor phase

and manual.

Recommended Pad Layout Dimensions

mm (inches)

OPERATING TEMPERATURE:

-40°C to +85°C

0.20

(0.008)

0.31

(0.012)

0.15

(0.006)

0.53

(0.021)

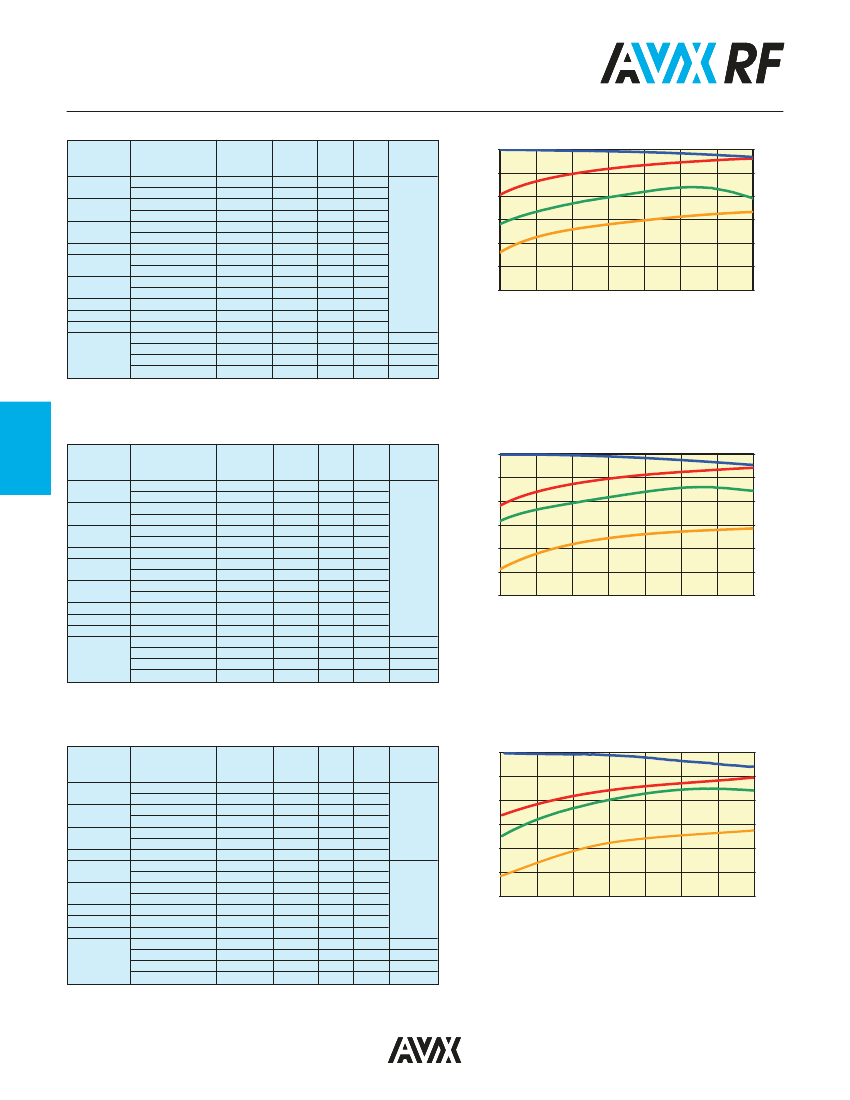

47

CP0402P1890BNTR Related Products

	CP0402P1890BNTR	CP0402P0947ENTR	CP0402P2442ENTR	CP0402P1441ANTR	CP0402P1747BNTR	CP0402P1842BNTR	CP0402P1880BNTR	CP0402P1907ANTR	CP0402P1907BNTR
Description	Directional Coupler, 1880MHz Min, 1900MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 935MHz Min, 960MHz Max, 0.2dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 2400MHz Min, 2484MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1429MHz Min, 1453MHz Max, 0.4dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1710MHz Min, 1785MHz Max, 0.3dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1805MHz Min, 1880MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1850MHz Min, 1910MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1895MHz Min, 1920MHz Max, 0.5dB Insertion Loss-Max, LEAD FREE, LGA-4	Directional Coupler, 1895MHz Min, 1920MHz Max, 0.35dB Insertion Loss-Max, LEAD FREE, LGA-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	14 weeks	14 weeks	14 weeks	14 weeks	14 weeks	14 weeks	14 weeks	14 weeks	14 weeks
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum insertion loss	0.35 dB	0.2 dB	0.35 dB	0.4 dB	0.3 dB	0.35 dB	0.35 dB	0.5 dB	0.35 dB
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating frequency	1900 MHz	960 MHz	2484 MHz	1453 MHz	1785 MHz	1880 MHz	1910 MHz	1920 MHz	1920 MHz
Minimum operating frequency	1880 MHz	935 MHz	2400 MHz	1429 MHz	1710 MHz	1805 MHz	1850 MHz	1895 MHz	1895 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Encapsulate equivalent code	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)	LGA4(UNSPEC)
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Maker	AVX	-	-	AVX	AVX	AVX	AVX	AVX	AVX
