Preview

M12543DEFREQ3: DescriptionParallel - Fundamental Quartz Crystal, 26MHz Min, 32MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size401KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M12543DEFREQ3 Overview

Parallel - Fundamental Quartz Crystal, 26MHz Min, 32MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4

M12543DEFREQ3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT, ULTRA MINIATURE, LEADLESS, CERAMIC PACKAGE-4
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	18 pF
Manufacturer's serial number	M1254
Installation features	SURFACE MOUNT
Maximum operating frequency	32 MHz
Minimum operating frequency	26 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

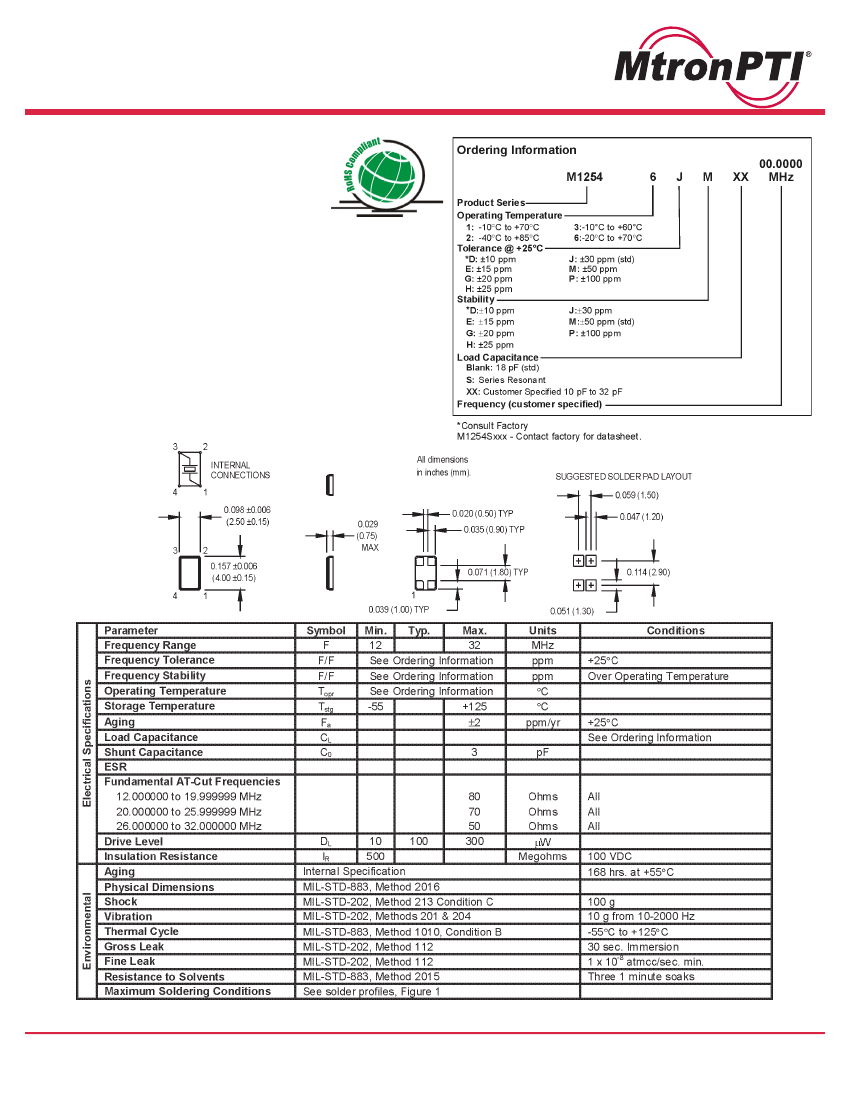

M1254 Surface Mount Crystal

2.5 x 4.0 x 0.75 mm

Features:

•

Ultra-Miniature Size

•

Tape & Reel

•

Leadless Ceramic Package - Seam Sealed

•

RoHS Compliant

Applications:

•

Handheld Electronic Devices

•

PDA, GPS, MP3

•

Portable Instruments

•

PCMCIA Cards

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision:7-18-08
