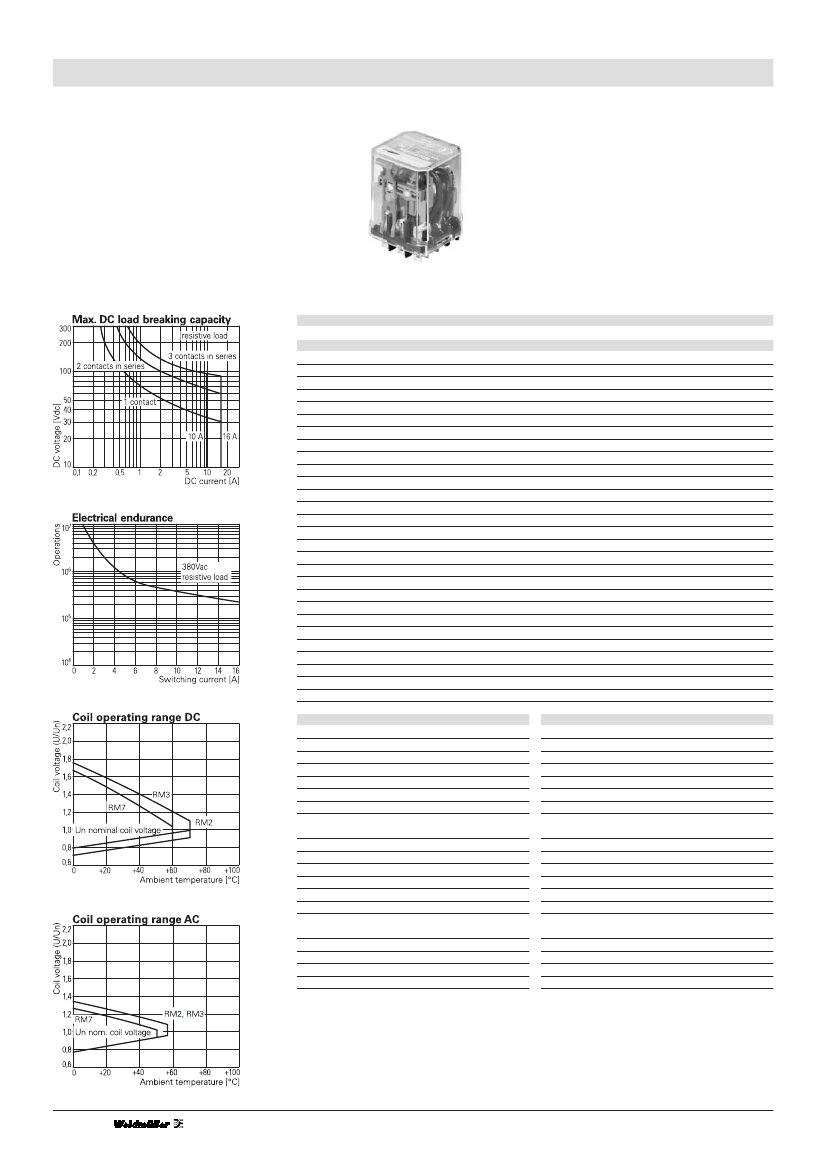

Power Relay RPW 2/7 – 2 / 3 pole 10 / 16 A, DC- or AC-coil
•
•
•
•
•
•
2 C/O or 3 C/O contacts
Switching capacity up to 6000 VA
DC- or AC-coil
Mechanical indicator
Push-to-test-button
Plug-in version, PCB terminals,
chassis- or DIN-rail mount
Applications
Elevator control, power supplies
Approvals:
m{
Ordering data
Type
RPW202024
RPW202110
RPW202524
RPW202730
RPW205012
RPW205024
RPW205524
RPW205615
RPW205730
RPW209730
RPW232006
RPW232012
RPW235730
RPW702012
RPW702024
RPW702110
RPW702524
RPW702615
RPW702730
RPW705012
RPW705024
RPW705048
RPW705524
RPW705730
RPW732012
RPW732024
RPW732524
RPW732730
Contacts
2 C/O contacts
””
””
””
””
””
””
””
””
””
””
””
””
3 C/O contacts
””
””
””
””
””
””
””
””
””
””
””
””
””
””
Version
without
test button
””
””
””
””
””
””
””
””
with
test button
””
without
test button
””
””
””
””
””
””
””
””
””
with
test button
””
””
Enclosure
plain cover
AMP187
””
””
mounting brackets
AMP250
””
””
””
DIN vertical
plain cover
AMP187
mount. brackets, AMP 187
plain cover
AMP187
””
””
””
””
mounting brackets
AMP250
””
””
””
plain cover
AMP187
””
””
RPW2
2 C/O
single contact
16 A
380 Vac / 440 Vac
6000 VA
40 A
AgCdO
6000 VA
40 A
16 A
Coil
24 Vdc
110 Vdc
24 Vac
230 Vac
12 Vdc
24 Vdc
24 Vac
115 Vac
230 Vac
230 Vac
6 Vdc
12 Vdc
230 Vac
12 Vdc
24 Vdc
110 Vdc
24 Vac
115 Vac
230 Vac
12 Vdc
24 Vdc
48 Vdc
24 Vac
230 Vac
12 Vdc
24 Vdc
24 Vac
230 Vac
Part No.
8690730000
8693050000
8690710000
8690720000
8693000000
8690790000
8690770000
8692900000
8690780000
8692810000
8693090000
8692970000
8693020000
8692960000
8690760000
8693140000
8690740000
8693110000
8690750000
8693150000
8690820000
8693070000
8690800000
8690810000
8693040000
on request
8692990000
on request
RPW7
3 C/O
Technical data
Configuration
Type of contact
Rated current
Rated voltage / max.breaking voltage AC
Maximum breaking capacity AC
Make current
Contact material
Contact ratings
Type
RPW2
RPW7
RPW7
RPW3
RPW3
Coil data
Nominal voltage
Nominal coil power
DC coil
AC coil
DC coil
AC coil
Standard
UL 508
UL 508
UL 508
UL 508
UL 508
Load
1hp, 240 Vac, per contact
1.5hp, 240 Vac, 3-phase
15 A, 250 Vac, per contact
1 / 2hp, 240 Vac, per contact
10 A, 240 Vac, per contact
RPW2
6…220 Vdc
6…400 Vac
1.2 W
2.3 VA
1.6 W
2.8 VA
RPW7
18
Power Relay RPW 2/7 – 2 / 3 pole 10 / 16 A, DC- or AC-coil
R P W

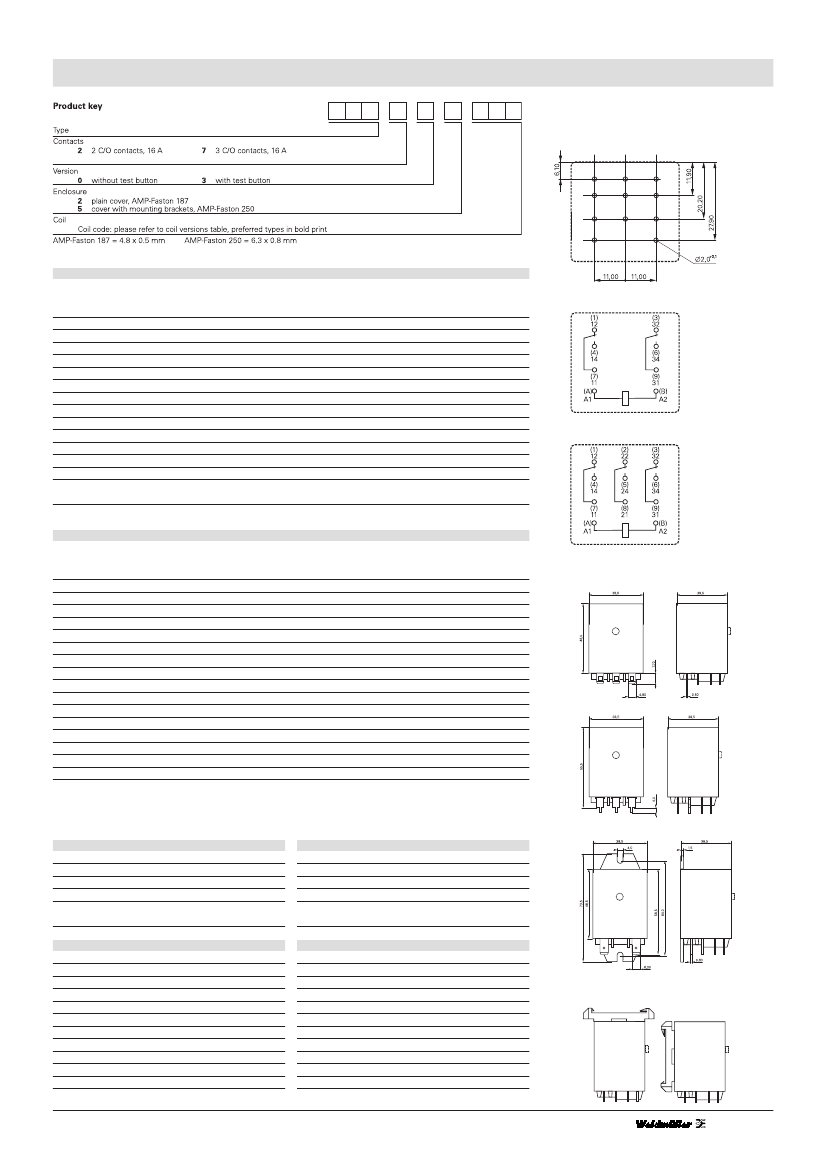

PCB layout / terminal assignment
View on solder pins
Dimensions in mm
Coil versions, DC-coil, RPW2
Coil code
Nominal
STD
voltage
Vdc
006
6
012
12
024
24
048
48
060
60
110
110
Coil versions, DC-coil, RPW7
006
6
012
12
024
24
048
48
Pull-in
voltage
Vdc
4.5
9.0
18.0
36.0
45.0
82.5
4.5
9.0
18.0
36.0
Release
voltage
Vdc
0.6
1.2
2.4
4.8
6.0
11.0
0.6
1.2
2.4
4.8
Coil
resistance
Ω
32±10%
110±10%
475±10%
2000±10%
2850±10%
10000±12%
24±10%
86±10%
345±10%
1340±10%
2200±10%
7300±10%
Coil
current
mA
187.5
109.1
50.5
24.0
21.1
11.0
250.0
139.5
69.6
35.8
27.3
15.1
2 C/O contacts
3 C/O contacts
060
60
45.0
6.0
110
110
82.5
11.0
All figures are given for coil without preenergization, at ambient temperature +20°C
* Protection diode PD; standard polarity: +A1 / -A2
Coil versions, AC-coil, RPW2
Coil
Nominal
code
voltage
standard
Vac
506
6
512
12
524
24
548
48
560
60
615
115
Pull-in
voltage
Vac
4.8
9.6
19.2
38.4
48.0
92.0
Release
voltage
Vac
2.4
4.8
9.6
19.2
24.0
46.0
Coil
resistance
Ω
5.3±10%
24±10%
86±10%
345±10%
544±10%
2000±10%
8300±12%
4.7±10%
19.5±10%
80±10%
320±10%
500±10%
1850±10%
7500±10%
Coil
current
mA
381.7
182.5
94.2
47.5
37.8
20.6
10.1
476.7
225.8
109.2
54.2
43.7
23.0
11.7
Dimensions in mm
Plain cover, plug-in version
730
230
184.0
92.0
Coil versions, AC-coil, RPW7
506
6
4.8
2.4
512
12
9.6
4.8
524
24
19.2
9.6
548
48
38.4
19.2
560
60
48.0
24.0
615
115
92.0
46.0
730
230
184.0
92.0
All figures are given for coil without preenergization, at ambient temperature +20°C
PCB version
Cover with mounting brackets,
FASTON 250 (187 available)
Insulation
Dielectric strength
coil-contacts
open contact circuit
adjacent contacts
Clearance / creepage
Insulation to VDE 0110b (2/79)
Insulation category / reference voltage
Other data
Ambient temperature
2500 V
rms
1500 V
rms
2500 V
rms
≥
3.5 / 6 mm
C / 400 with fully
isolated Faston connectors
RPW2
RPW7
-45...+70 °C
-45...+60 °C
-45...+55 °C
-45...+50 °C
>20x10
6
operations
16 min
-1
/ 100 min
-1
approx. 15 / 10 ms
approx. 3 ms
>5 / 2 g
>12 / 4 g
RT I-dust protected
81 g
25 pcs.
see accessories RRD
DC-coil
AC-coil
Mechanical life
Max. switching rate at rated- / minimum load
Operate- / release time
Bounce time
Vibration resistance N/O / N/C contact
Category of protection (IEC 61810)
Relay weight
Packaging unit
Accessories
Cover with DIN-snap-on attachement
(FASTON 250 only)
horizontal
vertical
19
