8690250000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8690250000

8690250000: DescriptionPower/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE; CategoryMechanical and electronic products relay; File Size279KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric Compare View All

8690250000 Overview

Power/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE

8690250000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
package instruction	CADMIUM FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 4.8 V
body width	35.5 mm
body height	57 mm
Body length or diameter	35.5 mm
Coil current (AC) maximum value	0.5 A
Coil power	2300 mW
Coil resistance	24 Ω
Maximum coil voltage (AC)	12 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Manufacturer's serial number	8690350000
Installation features	PANEL MOUNT
operating hours	16 ms
Maximum operating temperature	50 °C
Minimum operating temperature	-45 °C
method of packing	BULK
physical size	35.5mm X 35.5mm X 57mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	9 ms
seal	RT1
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

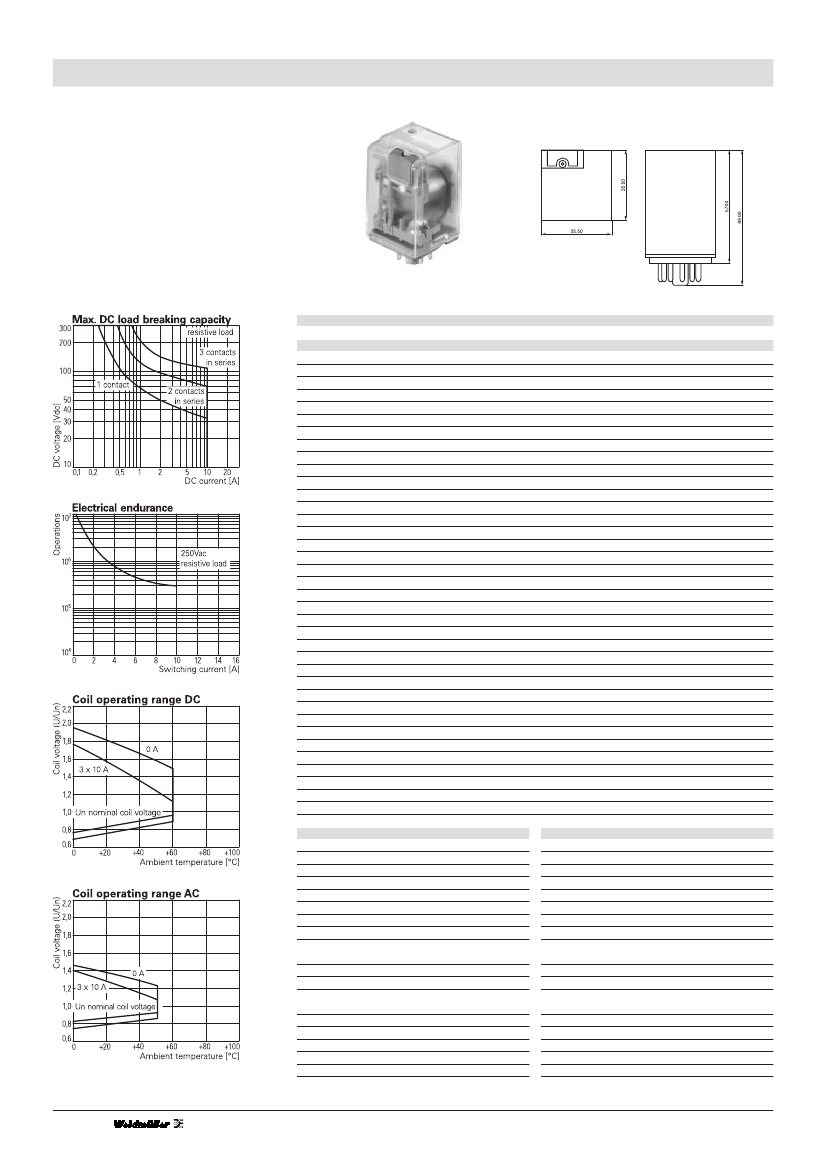

Multimode Relay RRD – 2 / 3 pole 10 A, DC- or AC-coil

•

2 C/O or 3 C/O contacts

Cadmium-free contacts

DC and AC coils

Mechanical indicator as standard

Electrical indicator

New test system with front operated

finger protected push-to-test button and

integral locking test tab

•

White write on panel

Applications

Mechanical engineering, plant control

Dimensions in mm

Approvals:

Ordering data

Type

RRD221012

RRD221024

RRD221048

RRD221060

RRD221110

RRD223012

RRD223024

RRD223048

RRD223110

RRD226012

RRD226024

RRD226048

RRD226060

RRD226115

RRD226230

RRD228012

RRD228024

RRD228048

RRD228115

RRD228230

RRD321024

RRD321048

RRD321060

RRD321110

RRD323024

RRD323110

RRD326006

RRD326012

RRD326024

RRD326048

RRD326115

RRD326230

RRD328012

RRD328024

RRD328048

RRD328115

RRD328230

Contacts

2 C/O contacts

””

3 C/O contacts

””

Cont. material

AgNi 90/10

””

AgNi 90/10

””

Version

with test button

””

with test button

LED

””

with test button

””

with test button

LED

””

with test button

””

with test button

LED

with test button

””

with test button

LED

””

Coil

12 Vdc

24 Vdc

48 Vdc

60 Vdc

110 Vdc

12 Vdc

24 Vdc

48 Vdc

110 Vdc

12 Vac

24 Vac

48 Vac

60 Vac

115 Vac

230 Vac

12 Vac

24 Vac

48 Vac

115 Vac

230 Vac

24 Vdc

48 Vdc

60 Vdc

110 Vdc

24 Vdc

110 Vdc

6 Vac

12 Vac

24 Vac

48 Vac

115 Vac

230 Vac

12 Vac

24 Vac

48 Vac

115 Vac

230 Vac

Part No.

8690350000

8690370000

8690390000

8695080000

8690410000

8690360000

8690380000

8690400000

8690420000

8690250000

8690270000

8690290000

8695070000

8690310000

8690330000

8690260000

8690280000

8690300000

8690320000

8690340000

8690610000

8690630000

8695020000

8690650000

8690620000

8690660000

8695100000

8690430000

8690450000

8690470000

8690550000

8690570000

8690440000

8690460000

8690480000

8690560000

8690580000

Technical data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Maximum breaking capacity AC

Make current (max. 4 s at duty cycle 10%)

Contact material

Minimum contact load

Contact ratings

Type

RRD321

Coil data

Nominal voltage

Nominal coil power

Operate category

2 C/O contact

single contacts

10 A

250 Vac / 440 Vac

2500 VA

20 A

AgNi 90/10

24 V, 10 mA

3 C/O contact

bifurcated contacts

500 VA

20 mV, 1 mA gold plated

Operations

1x10

Standard

VDE 0435

Load

10 A, 250 Vac, C/O contact

DC coil

AC coil

DC coil

AC coil

6…220 Vdc

6…230 Vac

typ. 1.2 W

typ. 2.3 VA

1/a

8690250000 Related Products

	8690250000	8690440000	8690260000	8695020000	8695070000	8695080000	8695100000	8690360000
Description	Power/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, 3PDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, 3PDT, Momentary, 0.021A (Coil), 60VDC (Coil), 1200mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, DPDT, Momentary, 0.021A (Coil), 60VDC (Coil), 1200mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, 3PDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE	Power/Signal Relay, DPDT, Momentary, 0.109A (Coil), 12VDC (Coil), 1200mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE
Maker	Weidmuller	Weidmuller	Weidmuller	Weidmuller	Weidmuller	Weidmuller	Weidmuller	Weidmuller
package instruction	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE	CADMIUM FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 4.8 V	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 4.8 V	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 4.8 V	WITH TEST BUTTON	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 48.0 V, COIL RELEASE VOLTAGE(AC): 24.0 V	WITH TEST BUTTON	WITH TEST BUTTON, COIL OPERATE VOLTAGE(AC): 4.8 V, COIL RELEASE VOLTAGE(AC): 2.4 V	WITH TEST BUTTON
body width	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm
body height	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm	57 mm
Body length or diameter	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm	35.5 mm
Coil power	2300 mW	2300 mW	2300 mW	1200 mW	2300 mW	1200 mW	2300 mW	1200 mW
Coil resistance	24 Ω	24 Ω	24 Ω	2850 Ω	544 Ω	2850 Ω	5.3 Ω	110 Ω
Coil/Input Power Type	AC	AC	AC	DC	AC	DC	AC	DC
Contact (AC) maximum rated R load	10A@250VAC	4A@250VAC	10A@250VAC	4A@250VAC	10A@250VAC	10A@250VAC	4A@250VAC	10A@250VAC
Maximum contact current (AC)	10 A	4 A	10 A	4 A	10 A	10 A	4 A	10 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Contact/Output Power Type	AC	AC	AC	AC	AC	AC	AC	AC
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
operating hours	16 ms	16 ms	16 ms	16 ms	16 ms	16 ms	16 ms	16 ms
Maximum operating temperature	50 °C	50 °C	50 °C	60 °C	50 °C	60 °C	50 °C	60 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	35.5mm X 35.5mm X 57mm	35.5mm X 35.5mm X 57mm	35.5mm X 35.5mm X 57mm	35.5mm x 35.5mm x 57mm	35.5mm X 35.5mm X 57mm	35.5mm x 35.5mm x 57mm	35.5mm X 35.5mm X 57mm	35.5mm x 35.5mm x 57mm
Guideline	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE	UL; VDE
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	DPDT	3PDT	DPDT	3PDT	DPDT	DPDT	3PDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms	9 ms
seal	RT1	RT1	RT1	RT1	RT1	RT1	RT1	RT1
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Coil current (AC) maximum value	0.5 A	0.5 A	0.5 A	-	0.11 A	-	1.132 A	-
Maximum coil voltage (AC)	12 V	12 V	12 V	-	60 V	-	6 V	-
Manufacturer's serial number	8690350000	8690650000	8690380000	-	8695080000	-	8690300000	-
Base Number Matches	-	1	1	1	1	1	1	-
Is Samacsys	-	-	N	N	N	N	N	-
