8-1414925-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8-1414925-5

8-1414925-5: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.05A (COIL), 12VDC (COIL), 600mW (COIL), 0.75A (CONTACT), 12VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size137KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-1414925-5 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.05A (COIL), 12VDC (COIL), 600mW (COIL), 0.75A (CONTACT), 12VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

8-1414925-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	13.1 mm
body height	11.5 mm
Body length or diameter	23.7 mm
Maximum coil current (DC)	0.05 A
Coil operating voltage (DC)	6.9 V
Coil power	600 mW
Coil release voltage (DC)	1.5 V
Coil resistance	225 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.75A@12VAC
Maximum contact current (AC)	0.75 A
Maximum contact current (DC)	0.75 A
Contact (DC) maximum rated R load	.75A@12VDC
Maximum contact voltage (AC)	12 V
Maximum contact voltage (DC)	12 V
Contact/Output Power Type	AC/DC
Electrical life	300000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
operating hours	3 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	23.7mm x 13.1mm x 11.5mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	1.5 ms
seal	IP54
surface mount	NO
Termination type	SOLDER

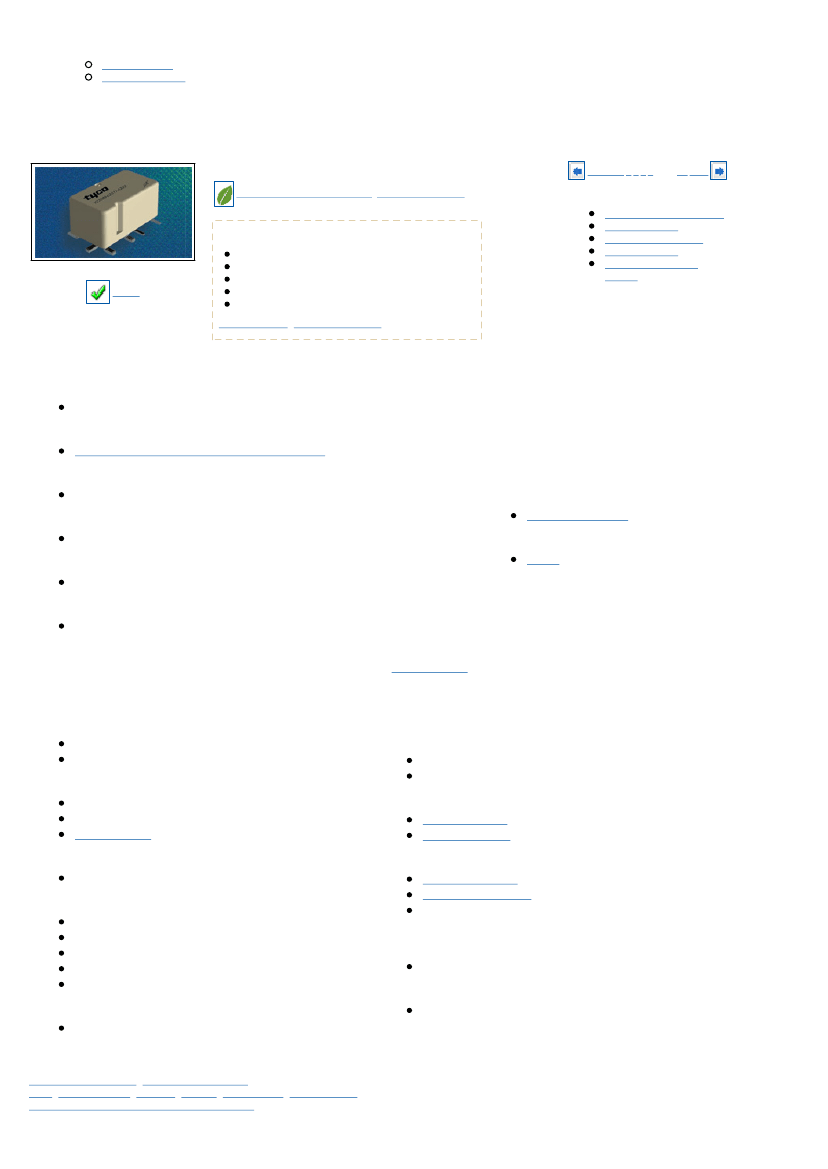

Preview
