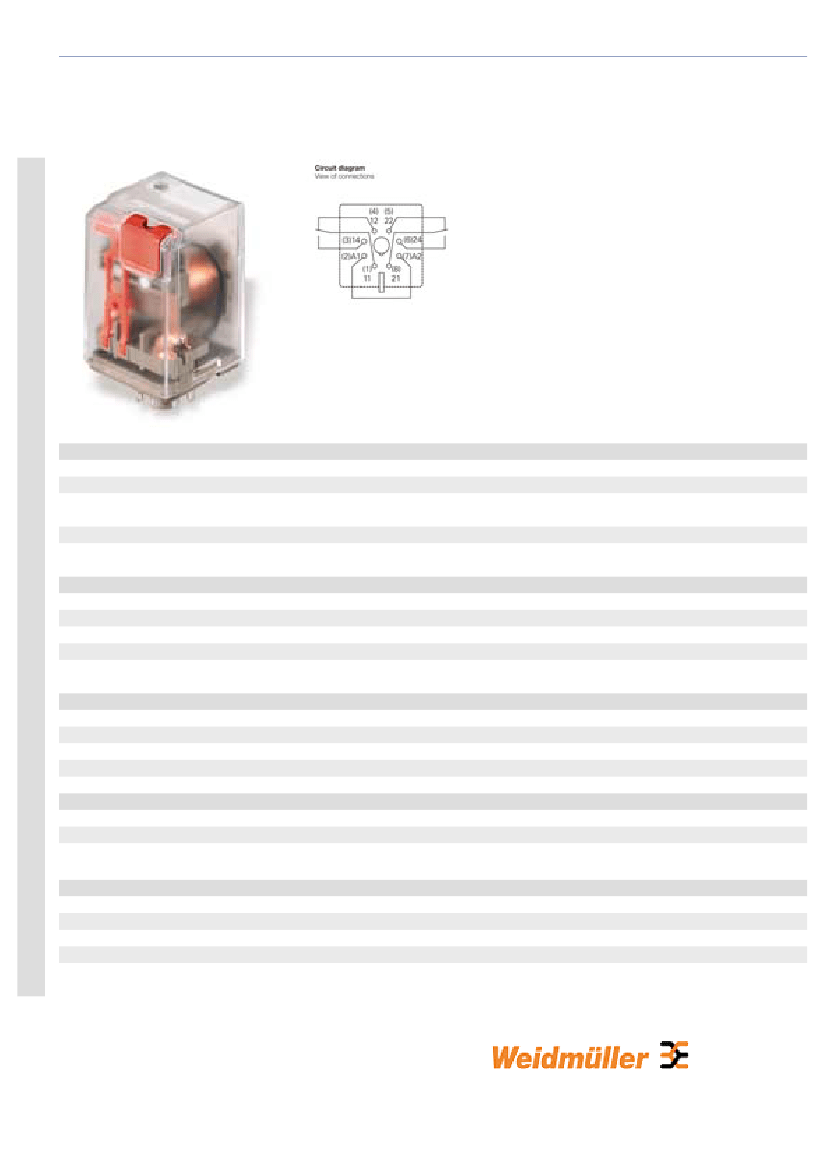

8690390000: DescriptionPower/Signal Relay, DPDT, Momentary, 0.024A (Coil), 48VDC (Coil), 1200mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE; CategoryMechanical and electronic products relay; File Size56KB，3 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8690390000 Overview

Power/Signal Relay, DPDT, Momentary, 0.024A (Coil), 48VDC (Coil), 1200mW (Coil), DC Input, AC Output, Panel Mount, CADMIUM FREE

8690390000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
package instruction	CADMIUM FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH TEST BUTTON
body width	35.5 mm
body height	57 mm
Body length or diameter	35.5 mm
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	36 V
Coil power	1200 mW
Coil release voltage (DC)	4.8 V
Coil resistance	2000 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	PANEL MOUNT
operating hours	12 ms
Maximum operating temperature	50 °C
Minimum operating temperature	-45 °C
method of packing	BULK
physical size	35.5mm x 35.5mm x 57mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	IP20
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage DC coil

Rated current DC

Power rating

Status indicator

Output

Continuous current

Max. switching power

Max. switching voltage AC

Sparkover time / Drop-out time

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Weight

Ambient temperature (operational)

8690390000

RRD221048

Relay, 2 CO contact with test button, 48 V DC , 10

A, Plug-in connection

4032248361014

25 pc(s).

48 V DC

36.0 V / 4.8 V

24.0 mA

1.2 W

Mechanical

10 A

2500 VA

250 V

12 ms / 5 ms

2

AgNi 90/10

6

20*10 switching cycles

Plug-in connection

TS 35

V-0

80 g

-45 °C...+50 °C
