8821910000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8821910000

8821910000: DescriptionPower/Signal Relay, SPDT, Momentary, 0.167A (Coil), 110VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size59KB，3 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8821910000 Overview

Power/Signal Relay, SPDT, Momentary, 0.167A (Coil), 110VDC (Coil), 500mW (Coil), DC Input, AC Output, Through Hole-Straight Mount

8821910000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.167 A
Coil operating voltage (DC)	16.8 V
Coil power	500 mW
Coil release voltage (DC)	2.4 V
Coil resistance	658.68 Ω
Maximum coil voltage (DC)	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Manufacturer's serial number	8821910000
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.7mm x 15.7mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
surface mount	NO
Termination type	SOLDER

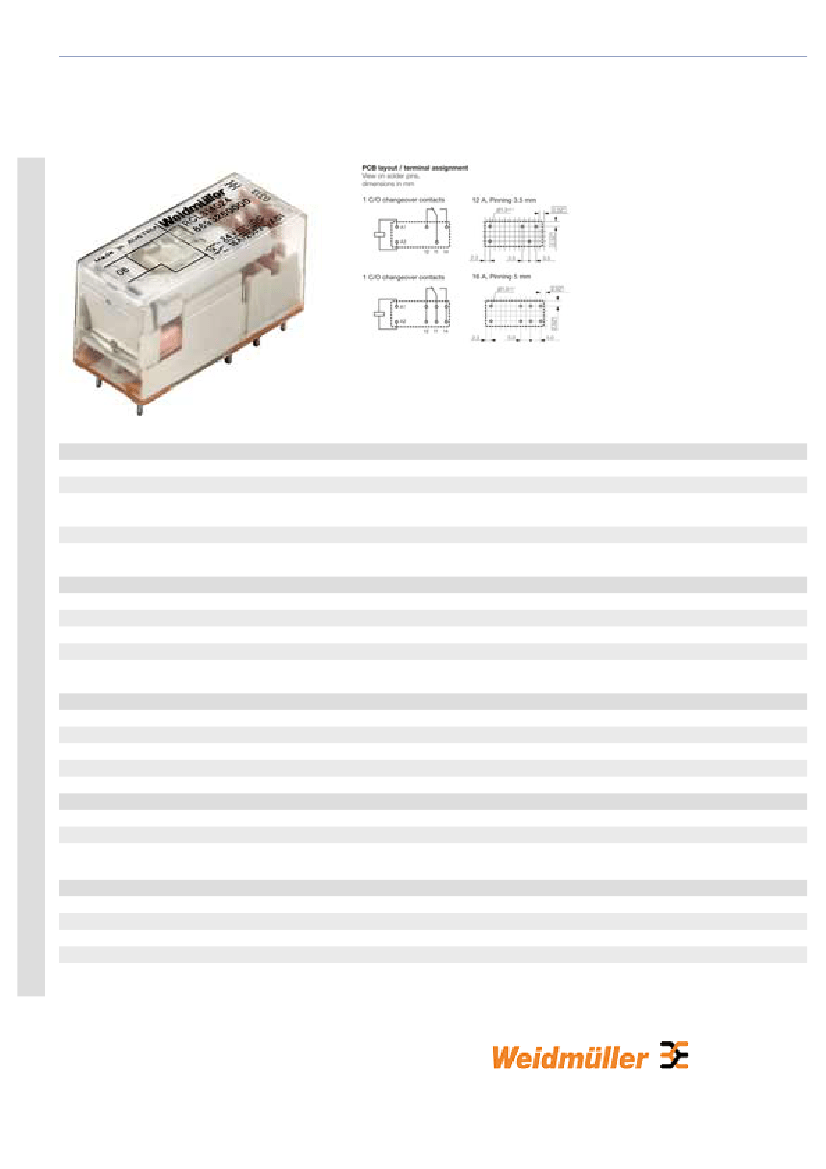

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Rated control voltage

Pull-in (sparkover) / drop-out voltage DC coil

Rated current DC

Power rating

Status indicator

Output

Continuous current

Max. switching power

Max. switching voltage AC

Sparkover time / Drop-out time

Contact data

Number of contacts

Contact base material

Mechanical service life

Rated data

Connection system

DIN Rail compatibility

UL 94 flammability class

Weight

Ambient temperature (operational)

8821910000

RCL314110

Relay, 1 CO contact, 110 V DC , 16 A, Plug-in

connection

4032248523665

20 pc(s).

110 V DC

16,8 Vdc / 2,4 Vdc

16,7 mA

500 mW

16 A

4000 VA

250 V

7 ms / 3 ms

AgNi 90/10

30*10 switching cycles

Plug-in connection

TS 35

V-0

14 g

-40 °C...+70 °C

-1-
