Technical Data Sheet

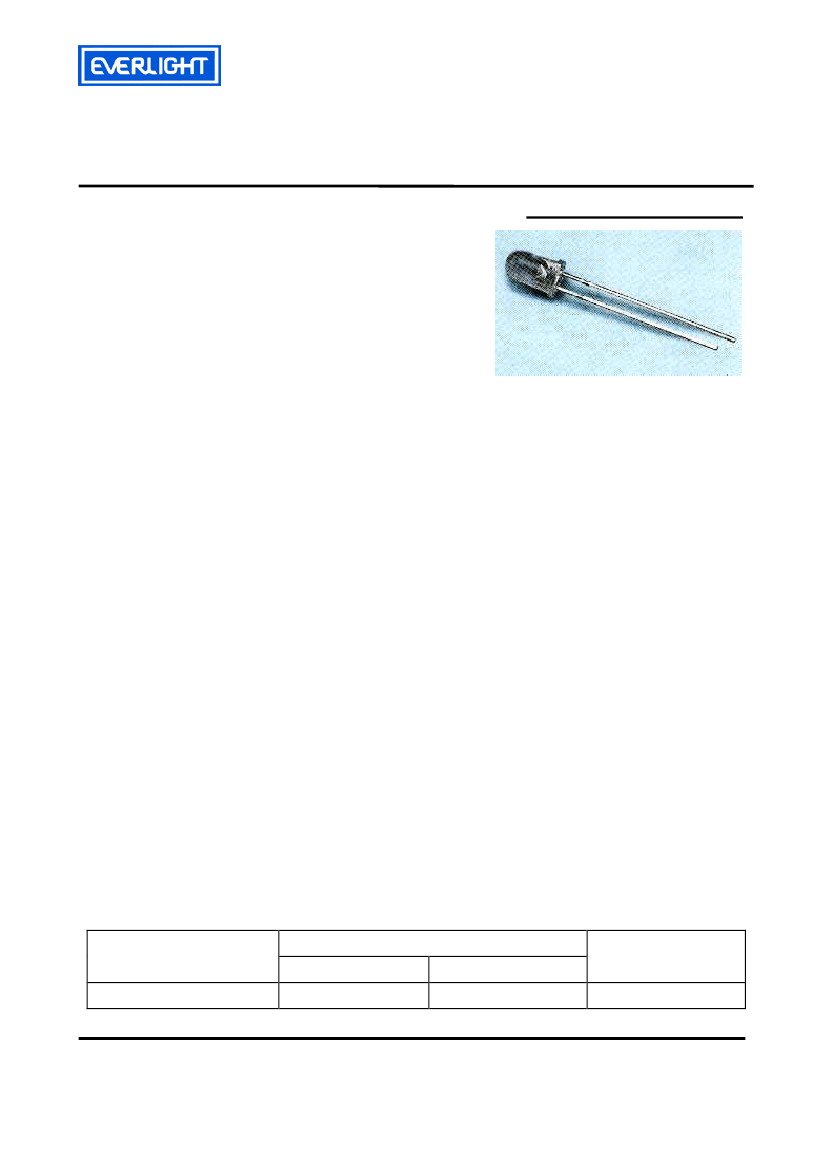

5 mm Round LED, T-1 3/4
7344/V2C3-ARUA/MS
Features
․Popular
T-1 3/4package.
․High
efficiency.
․General
purpose leads.
․Selected
minimum intensities.
․Available
on tape and reel.
․ESD-withstand
voltage: up to 4K V
․The
product itself will remain within RoHS compliant version.
․UV
resistant epoxy
Descriptions
․The
series is specially designed for applications
requiring higher brightness.
․The
LED lamps are available with different
colors, intensities, epoxy colors, etc.
․Superior
performance in outdoor environment
Applications
․Single
or Dual Color Graphic Signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
7344/V2C3-ARUA/MS
Chip
Material
InGaN
Emitted Color
Super Blue Green
Lens Color
Water clear
Everlight Electronics Co., Ltd.
Device Number : DLE-734-102
http\\:www.everlight.com
Prepared date:12-08-2005
Rev 1
Page: 1 of 7
Prepared by: Flourix Chen
Technical Data Sheet
5 mm Round LED, T-1 3/4
7344/V2C3-ARUA/MS
Package Dimensions
Notes:
․Other
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Zener Reverse Current
Notes: Soldering time≦5 seconds.
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
V
R
Iz
Absolute Maximum Rating
30
100
-40 ~ +85
-40 ~ +100
4K
260
±5
110
5
100
Unit
mA
mA
℃
℃
V
℃
mW
V
mA
Everlight Electronics Co., Ltd.
Device Number : DLE-734-102
http\\:www.everlight.com
Prepared date:12-08-2005
Rev 1
Page: 2 of 7
Prepared by: Flourix Chen
Technical Data Sheet
5 mm Round LED, T-1 3/4
7344/V2C3-ARUA/MS
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Radiometric Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Zener Reverse Voltage
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Vz
--
5.2
Min.
4500
--
--
--
--
Typ.
7150
30
502
505
30
3.2
--
----
Max.
--
--
--
I
F
=20mA
--
--
3.6
10
----
V
μA
V
V
R
=5V
Iz=5mA
nm
Unit
mcd
deg
Condition
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
R
4500~5650
S
5650~7150
T
7150~9000
U
9000~11250
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±15%
Rank
Forward Voltage
0
2.8~3.2
1
3.0~3.2
2
3.2~3.4
3
3.4~3.6
Unit:V
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
2
3
4
508~513
Unit:nm
498~503
503~508
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device Number : DLE-734-102
http\\:www.everlight.com
Prepared date:12-08-2005
Rev 1
Page: 3 of 7
Prepared by: Flourix Chen
Technical Data Sheet
5 mm Round LED, T-1 3/4
7344/V2C3-ARUA/MS

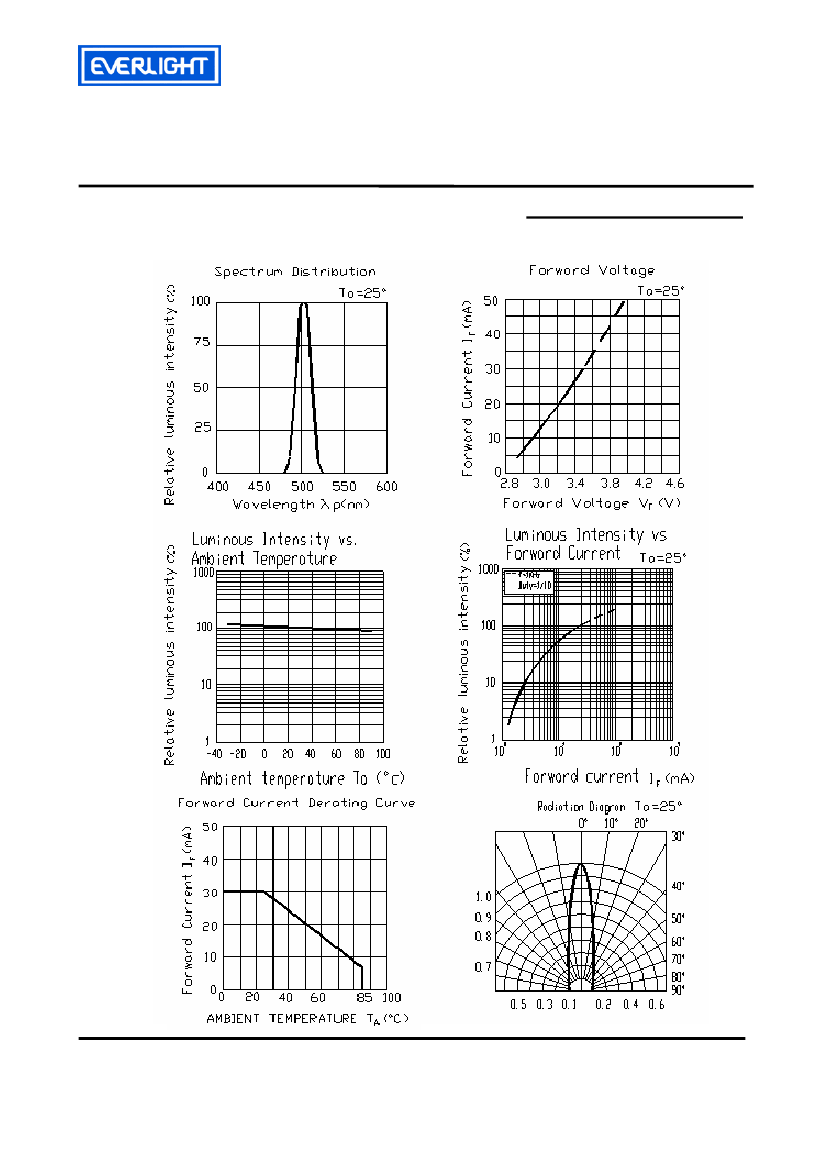

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DLE-734-102
http\\:www.everlight.com
Prepared date:12-08-2005
Rev 1
Page: 4 of 7
Prepared by: Flourix Chen
Technical Data Sheet
5 mm Round LED, T-1 3/4
7344/V2C3-ARUA/MS
Packing Quantity Specification
1.500PCS/1Bag，5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
EVERLIGHT
CPN:
P/N:
RoHS
7344/V2C3-ARUA/MS
QTY：
LOT NO：
CAT:
HUE:
REF:
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous Intensity and Forward
Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
MADE IN TAIWAN
Everlight Electronics Co., Ltd.
Device Number : DLE-734-102
http\\:www.everlight.com
Prepared date:12-08-2005
Rev 1
Page: 5 of 7
Prepared by: Flourix Chen
