SPICE MODEL: DDZX9688W DDZX9689W DDZX9690W DDZX9691W DDZX9692W DDZX9693W DDZX9694W DDZX9696W DDZX9697W DDZX9699W
DDZX9700W DDZX9702W DDZX9703W DDZX9705W DDZX9707W DDZX9708W DDZX9709W DDZX9711W DDZX9712W DDZX9713W DDZX9714W
DDZX9715W DDZX9716W
DDZX9682W - DDZX9716W
SURFACE MOUNT PRECISION ZENER DIODE
NEW PRODUCT
Features
·
·
·
·
·
Very Sharp Breakdown Characteristics
Very Tight Tolerance on V
Z
Ideally Suited for Automated Assembly
Processes
Very Low Leakage Current
Lead Free Device
A
SOT-323
Dim
B C
Min
0.25
1.15
2.00
0.30
1.20
1.80
0.0
0.90
0.25
0.10
0°
Max
0.40
1.35
2.20
0.40
1.40
2.20
0.10
1.00
0.40
0.18
8°
A
B
C
Mechanical Data
·
·
·
·
·
·
·
Case: SOT-323, Plastic
Plastic Material: UL Flammability Classification
Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Terminals: Finish - Matte Tin Solderable
per MIL-STD-202, Method 208 (Note 1)
Polarity: See diagram
Marking: See Below
Weight: 0.006 grams (approx.)
K
G
H
M
D
E
G
H
J
K
L
M
a
0.65 Nominal
J
D
F
L
TOP VIEW
All Dimensions in mm
Maximum Ratings
Forward Voltage
Power Dissipation (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
200
625
-65 to +150
Unit
V
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 2)
Operating and Storage Temperature Range
Notes:
1. If lead-bearing terminal plating is required, please contact your Diodes Inc. sales representative for availability
and minimum order details.
2. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
Ordering Information
(Note 3)
Device
(Type Number)-7*
Packaging
SOT-323
Shipping
3000/Tape & Reel
* Example: The part number for the 6.2 Volt device would be DDZX9691W-7.
Note :
3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KXX
Date Code Key
Year
Code
Month
Code
2003
P
Jan
1
Feb
2
2004
R
March
3
KXX = Product Type Marking Code (See Table 1)
YM = Date Code Marking
Y = Year (ex: P = 2003)
M = Month (ex: 9 = September)
YM
2005
S
Apr
4
2006
T
May
5
Jun
6
2007
U
Jul
7
Aug
8
2008
V
Sep
9
Oct
O
2009
W
Nov
N
Dec
D
DS30413 Rev. 2 - 2
1 of 6
www.diodes.com
DDZX9682W - DDZX9716W
ã
Diodes Incorporated
NEW PRODUCT
Electrical Characteristics
Type
Number
DDZX9682W
DDZX9683W
DDZX9684W
DDZX9685W
DDZX9686W
DDZX9687W
DDZX9688W
DDZX9689W
DDZX9690W
DDZX9691W
DDZX9692W
DDZX9693W
DDZX9694W
DDZX9696W
DDZX9697W
DDZX9698W
DDZX9699W
DDZX9700W
DDZX9701W
DDZX9702W
DDZX9703W
DDZX9705W
DDZX9707W
DDZX9708W
DDZX9709W
DDZX9711W
DDZX9712W
DDZX9713W
DDZX9714W
DDZX9715W
DDZX9716W
Notes:
Type
Code
@ T
A
= 25°C unless otherwise specified
Zener Voltage Range (Note 4)
V
Z
@ I
ZT
I
ZT
Max (V)
2.835
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
14.70
15.75
16.80
18.90
21.00
23.10
25.20
28.35
29.40
31.50
34.65
37.80
40.95
mA
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Table 1
Maximum Reverse
Leakage Current (Note 5)
I
R
@ V
R
mA
1
0.8
7.5
7.5
5
4
5
5
2
1
0.1
0.1
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
V
1
1
1.5
2
2
2
3
3
4
5
5.1
5.7
6.2
6.9
7.6
8.4
9.1
9.8
10.6
11.4
12.1
13.6
15.2
16.7
18.2
20.4
21.2
22.8
25.0
27.3
29.6
Nom (V)
HA
HB
HC
HD
HE
HF
HG
HH
HJ
HK
HL
HM
HN
HP
HQ
HR
HS
HT
HU
HV
HW
HY
MD
ME
MF
MH
MJ
MK
ML
MM
MN
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
18
20
22
24
27
28
30
33
36
39
Min (V)
2.565
2.85
3.13
3.42
3.70
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
17.10
19.00
20.90
22.80
25.65
26.60
28.50
31.35
34.20
37.05
4. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
T
= 30°C
±1°C.
5. Short duration pulse test used to minimize self-heating effect.
DS30413 Rev. 2 - 2
2 of 6
www.diodes.com
DDZX9682W - DDZX9716W
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
240
1000
NEW PRODUCT
200
P
d
, POWER DISSIPATION (mW)
100
160
10
120
1.0
80
0.1
40
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

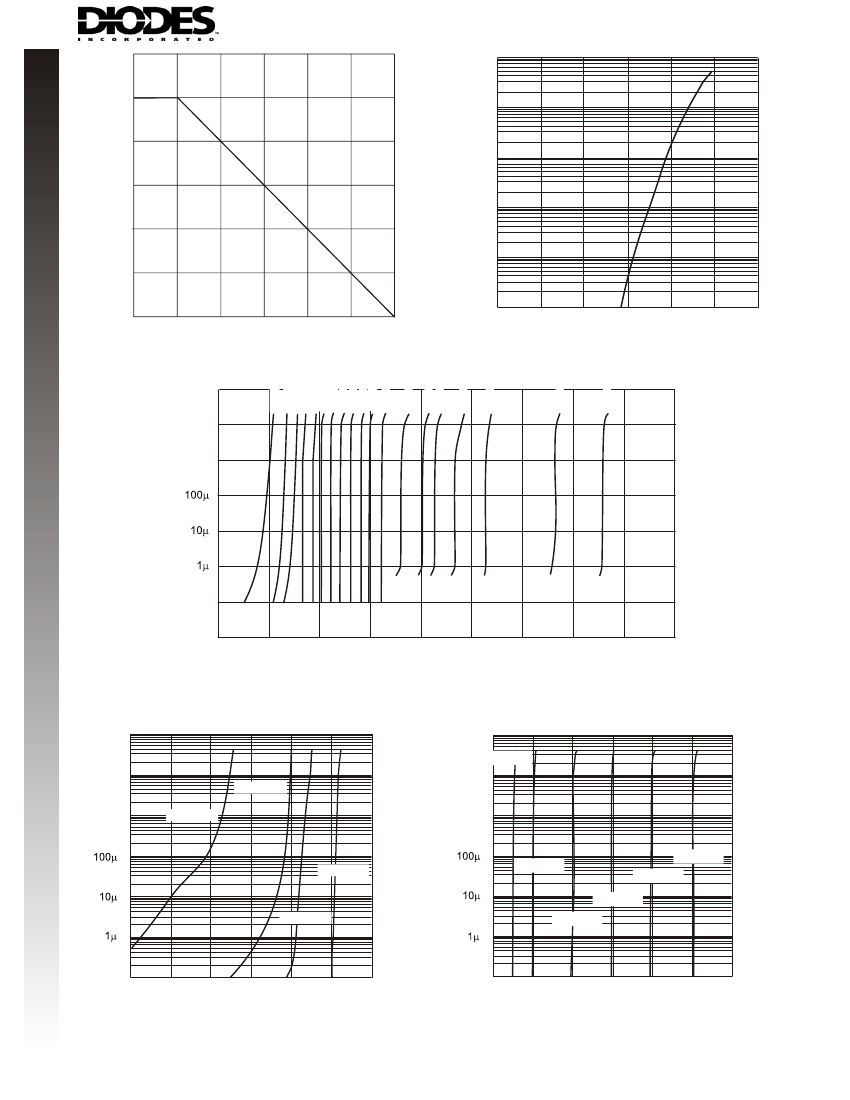

Fig. 1 Power Dissipation vs Ambient Temperature
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
9697W
9698W
9699W
9700W
9701W
9702W
9707W
9708W
9692W
9693W
9694W
9703W
9688W
10m
I
Z
, ZENER CURRENT (A)
1m
100n
10n
0
5
10
15
20
9696W
9705W
9709W
9711W
100m
9714W
25
30
35
9716W
40
45
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100m
100m
DDZX9696W
10m
DDZX9692W
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
1m
DDZX9688W
1m
DDZX9701W
DDZX9697W
DDZX9700W
DDZX9699W
DDZX9698W
DDZX9694W
DDZX9693W
100n
3.0
4.0
5.0
6.0
7.0
8.0
9.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)

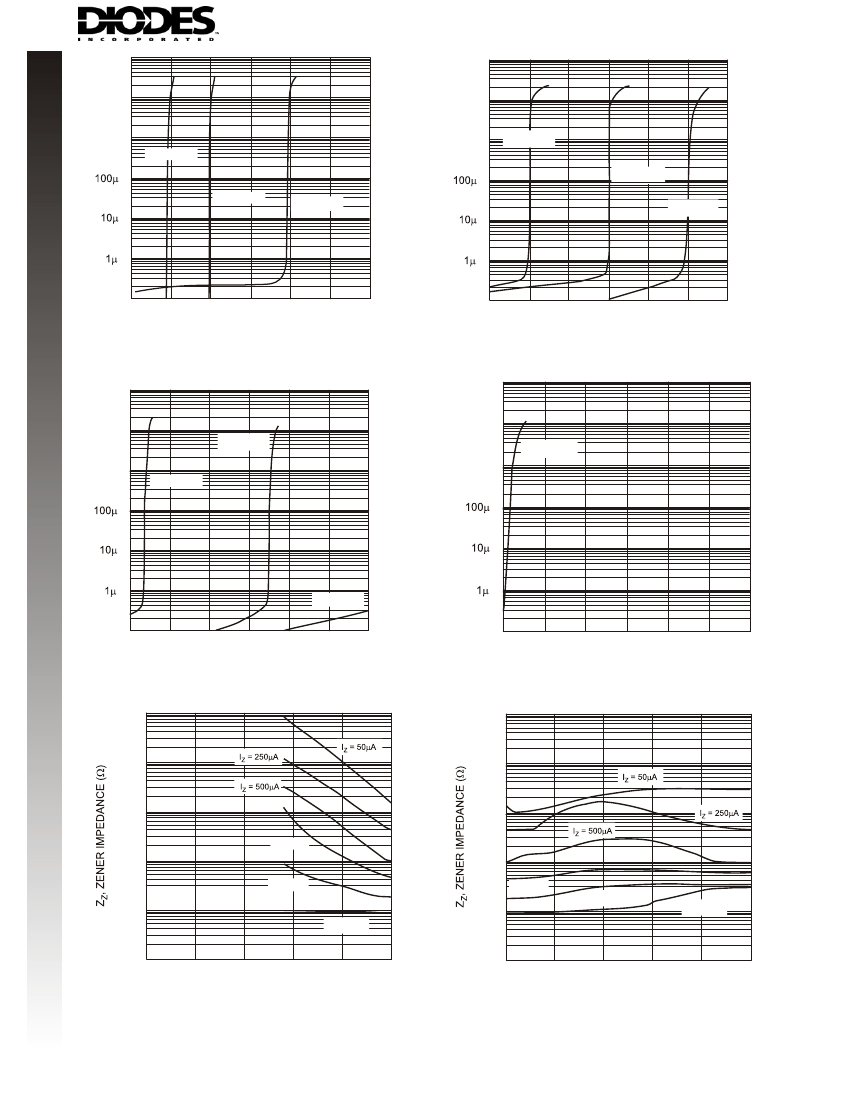

Fig. 4 Typical Reverse Characteristics, DDZX9688W - DDZX9694W
100n
8.0
10.0
11.0
12.0
13.0
14.0
15.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 5 Typical Reverse Characteristics, DDZX9696W - DDZX9701W
DS30413 Rev. 2 - 2
3 of 6
www.diodes.com
DDZX9682W - DDZX9716W
100m
100m
NEW PRODUCT
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
10m
1m
DDZX9702W
1m
DDZX9707W
DDZX9708W
DDZX9703W
DDZX9705W
DDZX9709W
100n
14
15
16
17
18
19
20
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Reverse Characteristics, DDZX9702W - DDZX9705W
100n
19
20
21
22
23
24
25
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 7 Typical Reverse Characteristics, DDZX9707W - DDZX9709W
100m
100m
10m
I
Z
, ZENER CURRENT (A)
10m
I
Z
, ZENER CURRENT (A)
DDZX9714W
DDZX9716W
1m
DDZX9711W
1m
DDZX9716W
100n
26
28
30
32
34
36
38
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 8 Typical Reverse Characteristics, DDZX9711W - DDZX9715W
100n
38
40
42
44
46
48
50
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 9 Typical Reverse Characteristics, DDZX9716W
10,000
10,000
1000
1000
100
I
Z
= 1mA
100
10
I
Z
= 5mA
10
I
Z
= 1mA
I
Z
= 5mA
1
I
Z
= 20mA
1
I
Z
= 20mA
0.1
2
3
4
5
6
7
V
Z
, ZENER VOLTAGE (V)
Fig. 10 Typical Zener Impedance Characteristics,
DDZX9688W - DDZX9692W
0.1
7
8
9
10
11
12
V
Z
, ZENER VOLTAGE (V)
Fig. 11 Typical Zener Impedance Characteristics,
DDZX9693W - DDZX9699W
DS30413 Rev. 2 - 2
4 of 6
www.diodes.com
DDZX9682W - DDZX9716W
10,000
10,000
NEW PRODUCT
1000
1000
100
100
10
I
Z
= 5mA
10
I
Z
= 5mA
I
Z
= 1mA
I
Z
= 1mA
1
1
0.1
12
13
14
15
16
17
18
V
Z
, ZENER VOLTAGE (V)

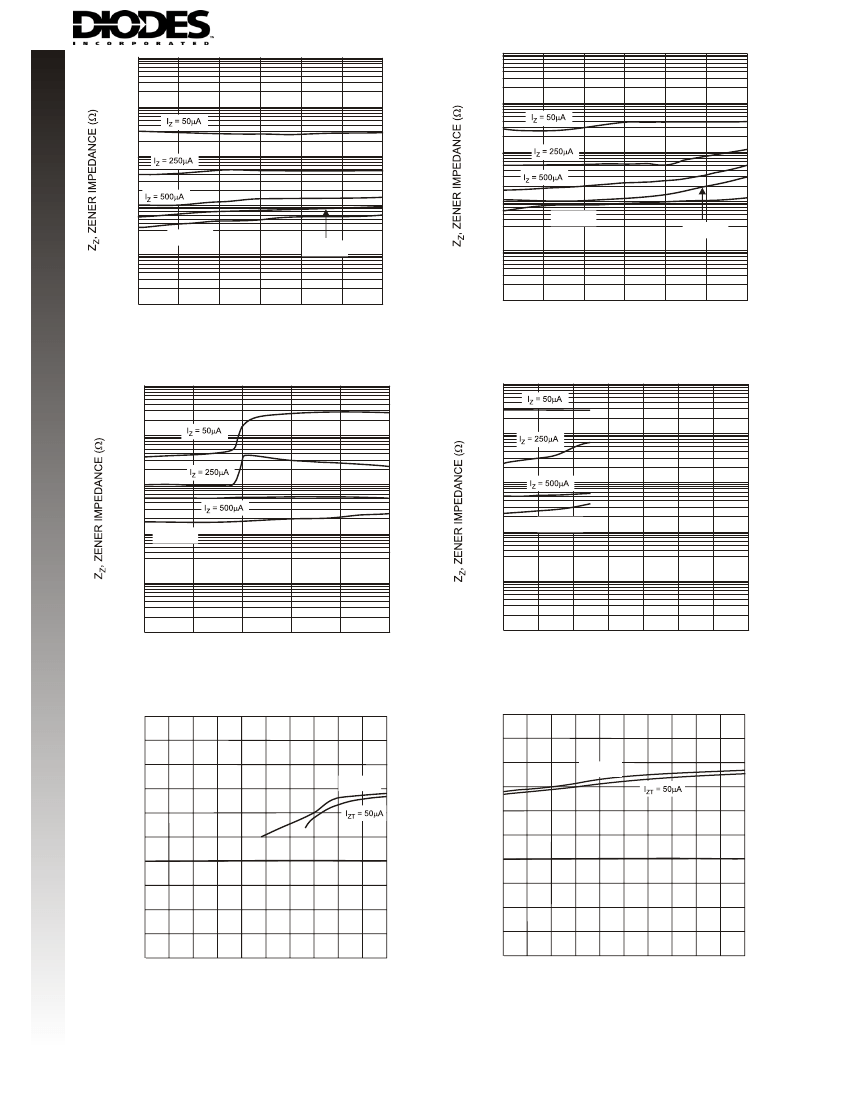

Fig. 12 Typical Zener Impedance Characteristics,
DDZX9699W - DDZX9705W
10,000
0.1
18
19
20
21
22
23
24
V
Z
, ZENER VOLTAGE (V)
Fig. 13 Typical Zener Impedance Characteristics,
DDZX9705W - DDZX9709W
10,000
1000
1000
100
100
10
I
Z
= 2mA
10
I
Z
= 2mA
1
1
0.1
24
26
28
30
32
34
V
Z
, ZENER VOLTAGE (V)
Fig. 14 Typical Zener Impedance Characteristics,
DDZX9709W - DDZX9714W
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.1
34
36
38
40
42
44
46
48
V
Z
, ZENER VOLTAGE (V)
Fig. 15 Typical Zener Impedance Characteristics,
DDZX9715W - DDZX9716W
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
I
ZT
= 5mA
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
0
2
4
6
8
10
V
Z
, ZENER VOLTAGE (V)
Fig. 16 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZX9692W - DDZX9697W
I
ZT
= 5mA
10
12
14
16
18
20
V
Z
, ZENER VOLTAGE (V)
Fig. 17 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZX9697W - DDZX9707W
DS30413 Rev. 2 - 2
5 of 6
www.diodes.com
DDZX9682W - DDZX9716W
