DTZ11 datasheet, PDF - EEWORLD Datasheet

DTZ11: Description1500W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-27, PLASTIC, DO-27A, CB-197, 2 PIN; CategoryDiscrete semiconductor diode; File Size455KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

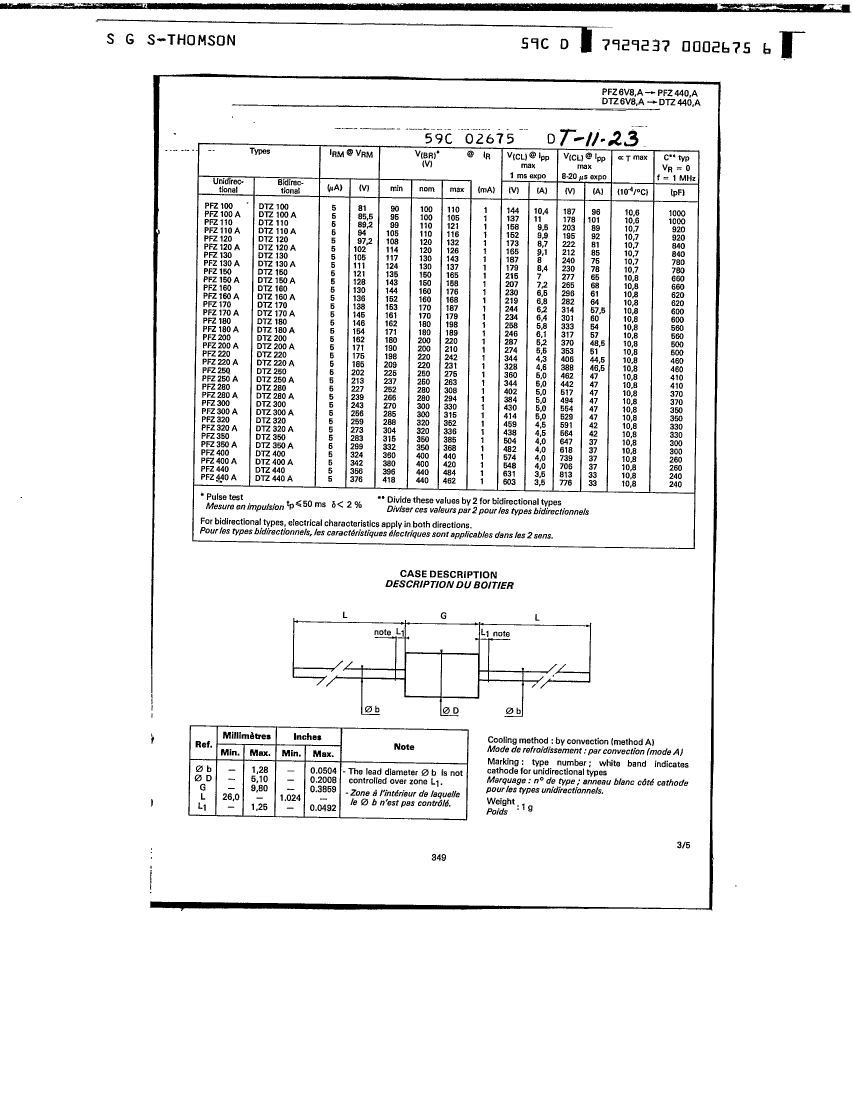

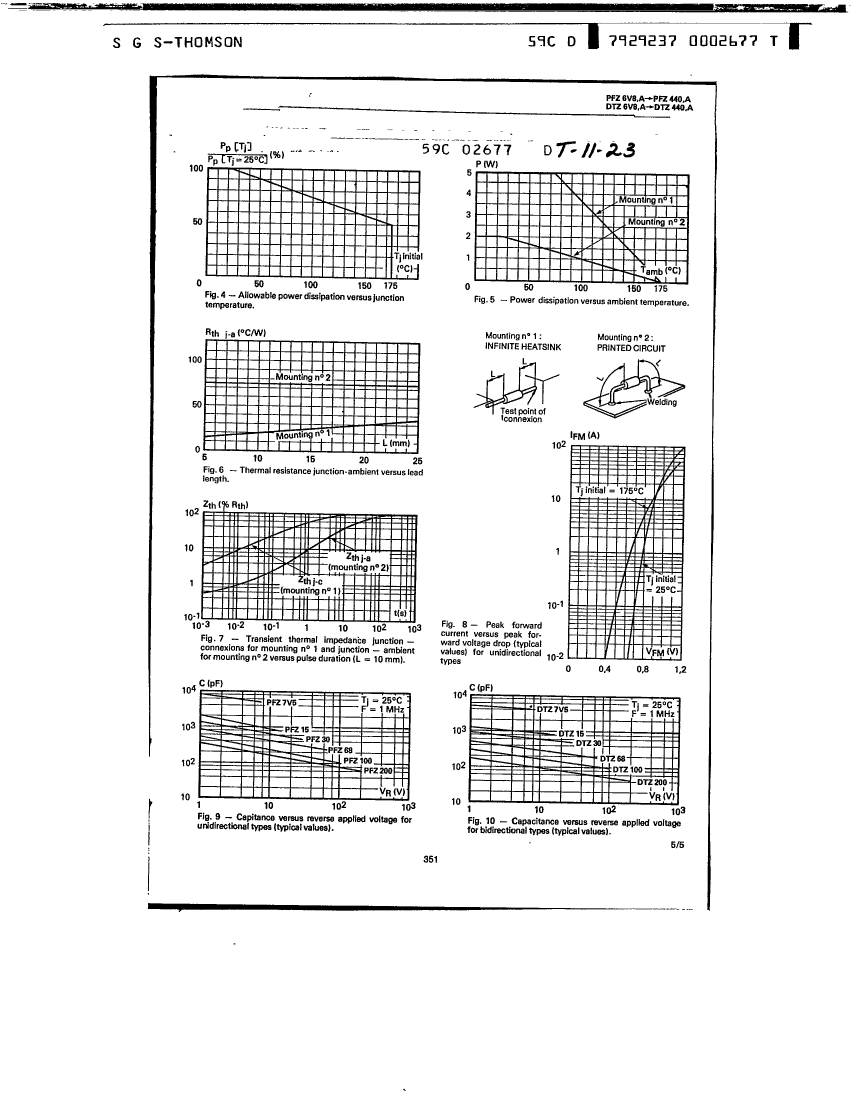

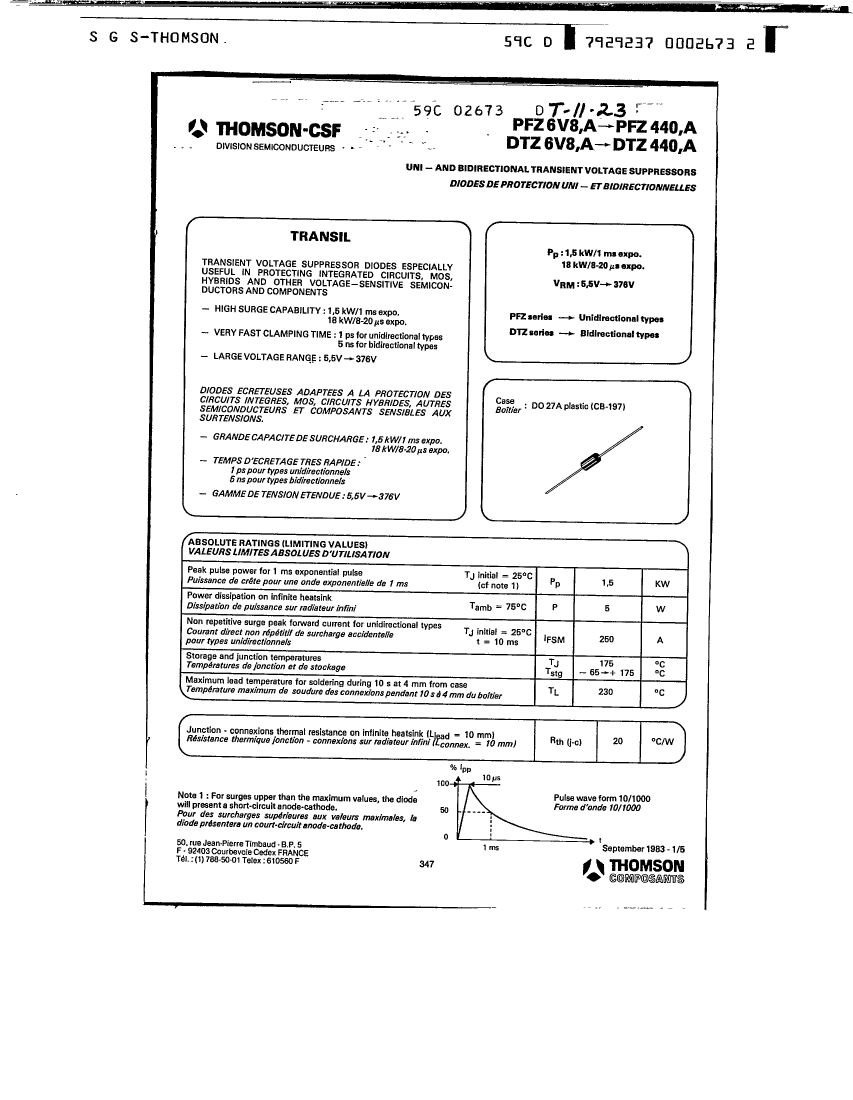

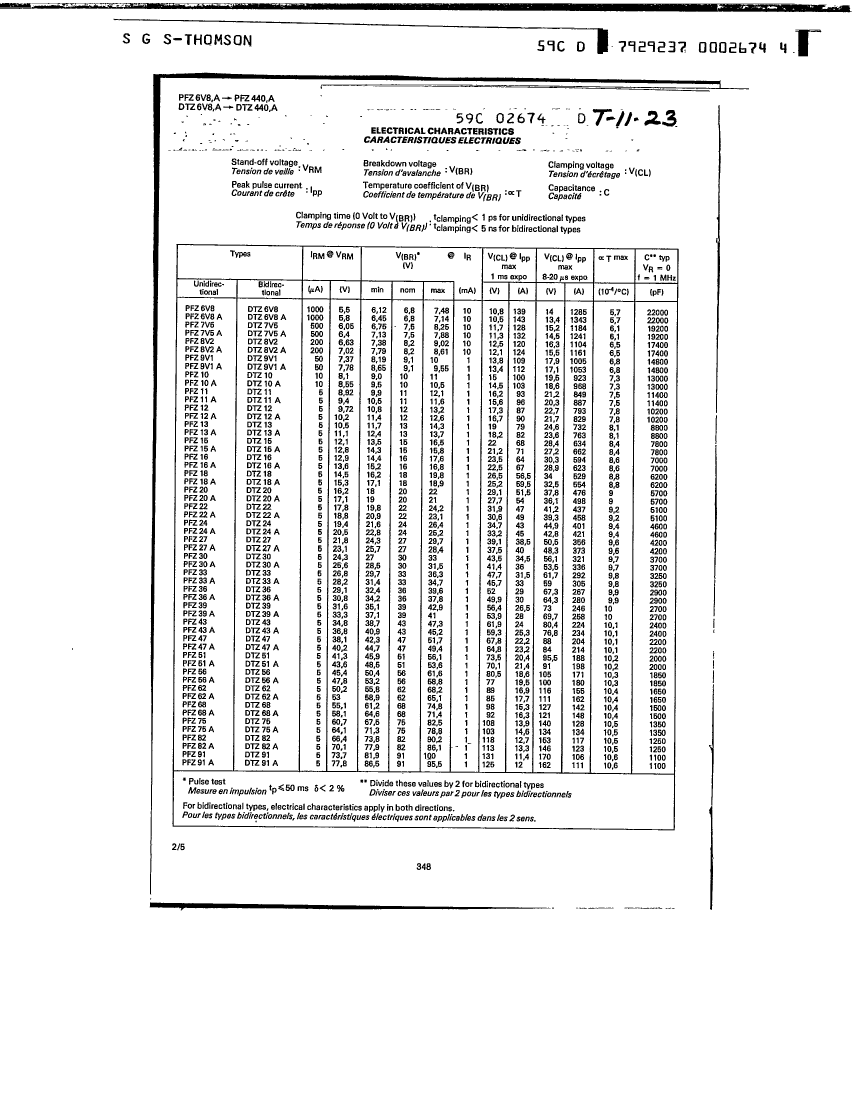

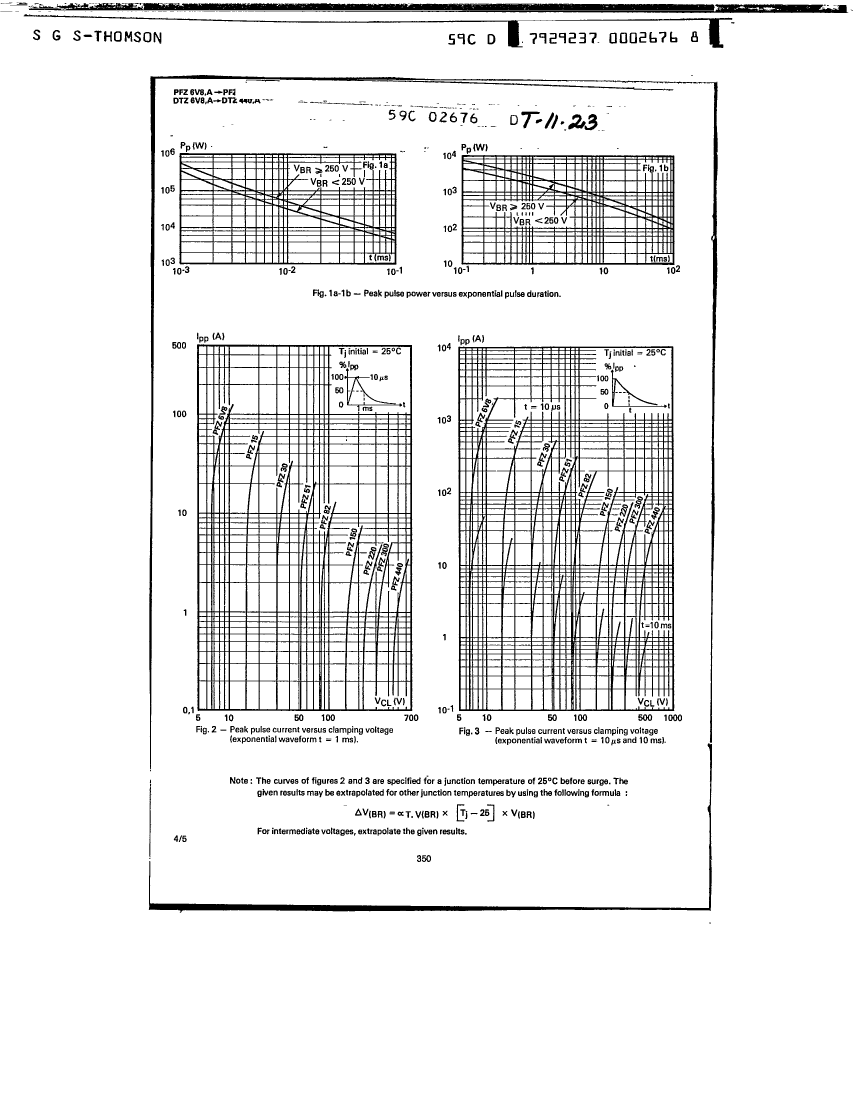

DTZ11 Overview

1500W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-27, PLASTIC, DO-27A, CB-197, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	PLASTIC, DO-27A, CB-197, 2 PIN
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum breakdown voltage	56.1 V
Minimum breakdown voltage	45.9 V
Breakdown voltage nominal value	11 V
Shell connection	ISOLATED
Maximum clamping voltage	16.2 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-27
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Maximum repetitive peak reverse voltage	41.3 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
