MC14025BCL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC14025BCL

MC14025BCL: DescriptionNOR Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size328KB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

MC14025BCL Overview

NOR Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, CDIP14, CERAMIC, DIP-14

MC14025BCL Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	CERAMIC, DIP-14
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-GDIP-T14
length	19.495 mm
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	300 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

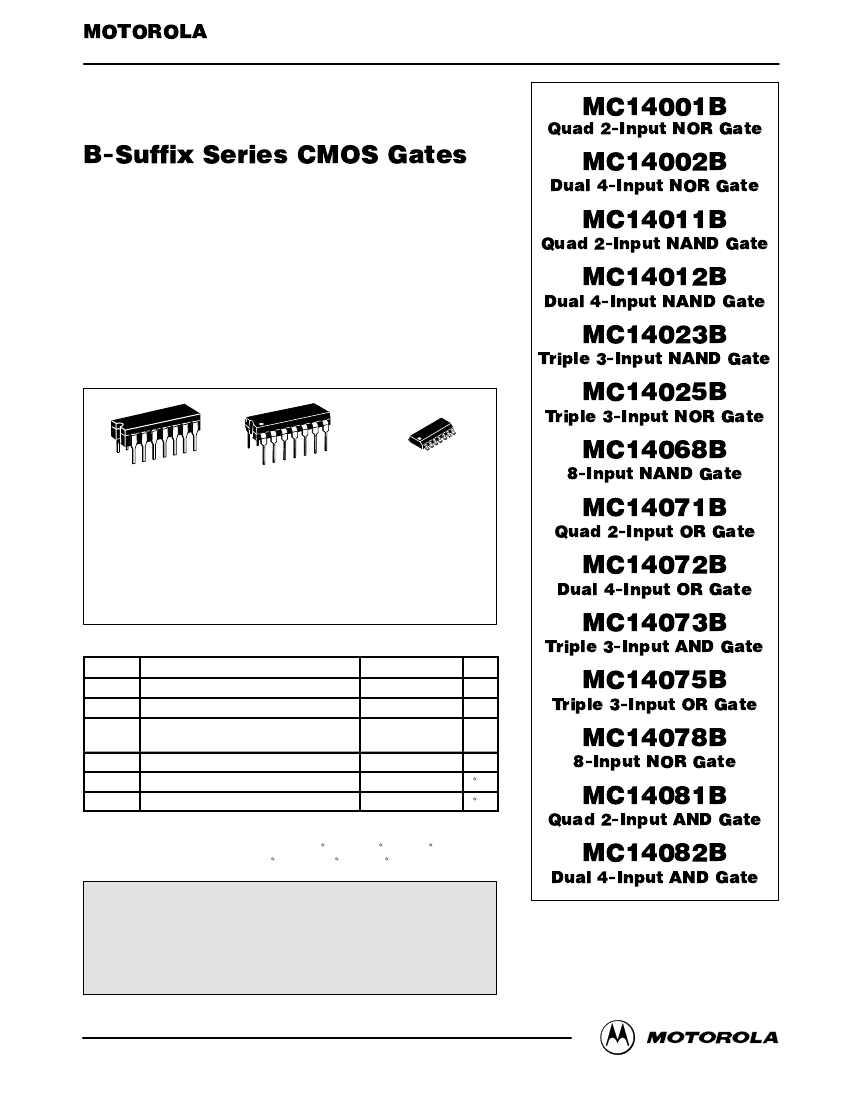

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

B-Suffix Series CMOS Gates

The B Series logic gates are constructed with P and N channel

enhancement mode devices in a single monolithic structure (Complemen-

tary MOS). Their primary use is where low power dissipation and/or high

noise immunity is desired.

•

Supply Voltage Range = 3.0 Vdc to 18 Vdc

•

All Outputs Buffered

•

Capable of Driving Two Low–power TTL Loads or One Low–power

Schottky TTL Load Over the Rated Temperature Range.

•

Double Diode Protection on All Inputs Except: Triple Diode Protection

on MC14011B and MC14081B

•

Pin–for–Pin Replacements for Corresponding CD4000 Series B Suffix

Devices (Exceptions: MC14068B and MC14078B)

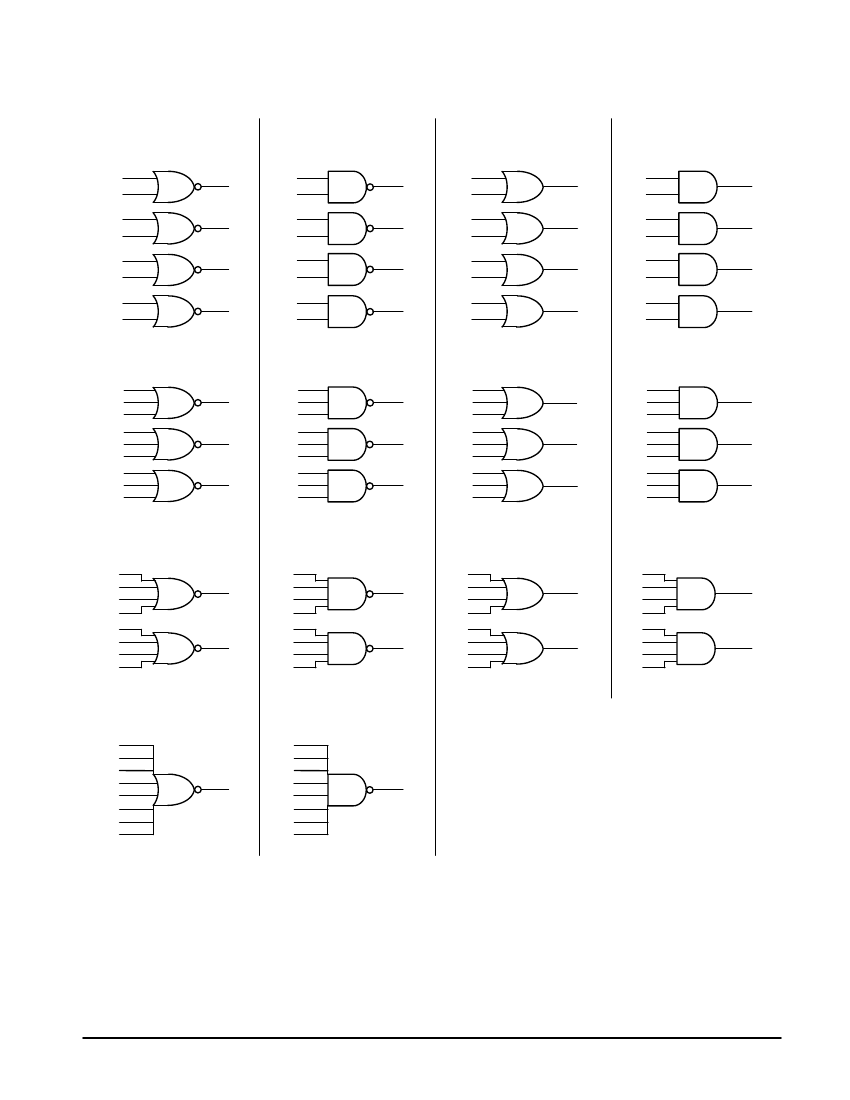

Quad 2-Input NOR Gate

Dual 4-Input NOR Gate

Quad 2-Input NAND Gate

Dual 4-Input NAND Gate

Triple 3-Input NAND Gate

Triple 3-Input NOR Gate

8-Input NAND Gate

Quad 2-Input OR Gate

Dual 4-Input OR Gate

Triple 3-Input AND Gate

Triple 3-Input OR Gate

8-Input NOR Gate

Quad 2-Input AND Gate

Dual 4-Input AND Gate

MC14001B

MC14002B

MC14011B

MC14012B

MC14023B

MC14025B

MC14068B

MC14071B

MC14072B

MC14073B

MC14075B

MC14078B

MC14081B

MC14082B

L SUFFIX

CERAMIC

CASE 632

P SUFFIX

PLASTIC

CASE 646

D SUFFIX

SOIC

CASE 751A

ORDERING INFORMATION

MC14XXXBCP

MC14XXXBCL

MC14XXXBD

Plastic

Ceramic

SOIC

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

TA = – 55° to 125°C for all packages.

MAXIMUM RATINGS*

(Voltages Referenced to VSS)

Symbol

VDD

Parameter

DC Supply Voltage

Value

Unit

– 0.5 to + 18.0

500

Vin, Vout

lin, lout

Input or Output Voltage (DC or Transient)

– 0.5 to VDD + 0.5

Input or Output Current (DC or Transient),

per Pin

Power Dissipation, per Package†

Storage Temperature

Tstg

– 65 to + 150

Lead Temperature (8–Second Soldering)

260

* Maximum Ratings are those values beyond which damage to the device may occur.

†Temperature Derating:

Plastic “P and D/DW” Packages: – 7.0 mW/

C From 65

C To 125

Ceramic “L” Packages: – 12 mW/

C From 100

C To 125

This device contains protection circuitry to guard against damage

due to high static voltages or electric fields. However, precautions must

be taken to avoid applications of any voltage higher than maximum rated

voltages to this high-impedance circuit. For proper operation, Vin and

Vout should be constrained to the range VSS

≤

(Vin or Vout)

≤

VDD.

Unused inputs must always be tied to an appropriate logic voltage

level (e.g., either VSS or VDD). Unused outputs must be left open.

REV 3

1/94

MOTOROLA CMOS LOGIC DATA

Motorola, Inc. 1995
