8506 A

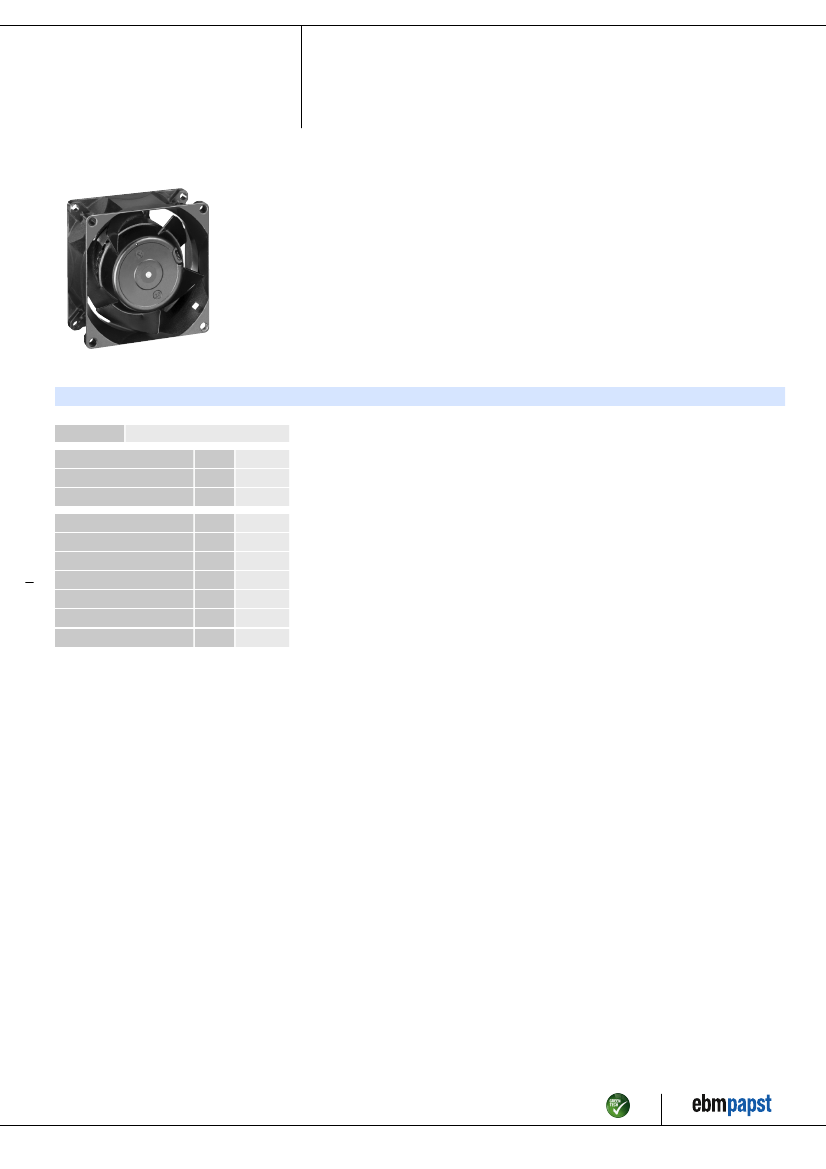

AC axial compact fan
ebm-papst St. Georgen GmbH & Co. KG
Hermann-Papst-Straße 1
D-78112 St. Georgen
Phone +49 7724 81-0
Fax +49 7724 81-1309
info2@de.ebmpapst.com
www.ebmpapst.com
Nominal data
Type
Phase
Nominal voltage
Frequency
Speed
Power input
Min. ambient temperature
Max. ambient temperature
Air flow
Sound power level
Sound pressure level
VAC
Hz
min
-1
W
°C
°C
m
3
/h
B
dB(A)
8506 A
1~
115
60
3300
11.0
-40
95
57
5.7
42
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations
Web data sheet XI · Page 1 of 4
ebm-papst St. Georgen GmbH & Co. KG · Hermann-Papst-Straße 1 · D-78112 St. Georgen · Phone +49 7724 81-0 · Fax +49 7724 81-1309 · info2@de.ebmpapst.com · www.ebmpapst.com
8506 A
AC axial compact fan
Technical features
General description
AC voltage fan with external rotor motor shaded-pole motor. Protected from overload by
impedance protection.
Fan housing and fan impeller made of metal.
Inlet over bars. Rotational direction clockwise looking at rotor.
Electrical connection to 2 flat plugs 2.8 x 0.5 mm.
Fan housing with grounding lug and tapping screw M4 x 8 (TORX).
Dimensions 490 g.
Optionally available with electrical connection to single strands.
Optionally available with air exhaust over bars, deliverable with clockwise direction of rotation.
Please note our new ACmaxx series. With identical fastening dimensions
and voltages, this series achieves higher energy efficiency.
0.490 kg
80 x 80 x 38 mm
Metal
Metal
Inlet over bars
Right, looking at rotor
Ball bearings
55000 h
15000 h
2 flat plugs 2.8 x 0.5 mm
Protected from overload using impedance protection
VDE, CSA, UL, CE
Mass
Dimensions
Material of impeller
Housing material
Direction of air flow
Direction of rotation
Bearing
Lifetime L10 at 40 °C
Lifetime L10 at maximum
temperature
Connection line
Motor protection
Approval
Web data sheet XI · Page 2 of 4
ebm-papst St. Georgen GmbH & Co. KG · Hermann-Papst-Straße 1 · D-78112 St. Georgen · Phone +49 7724 81-0 · Fax +49 7724 81-1309 · info2@de.ebmpapst.com · www.ebmpapst.com
8506 A
AC axial compact fan

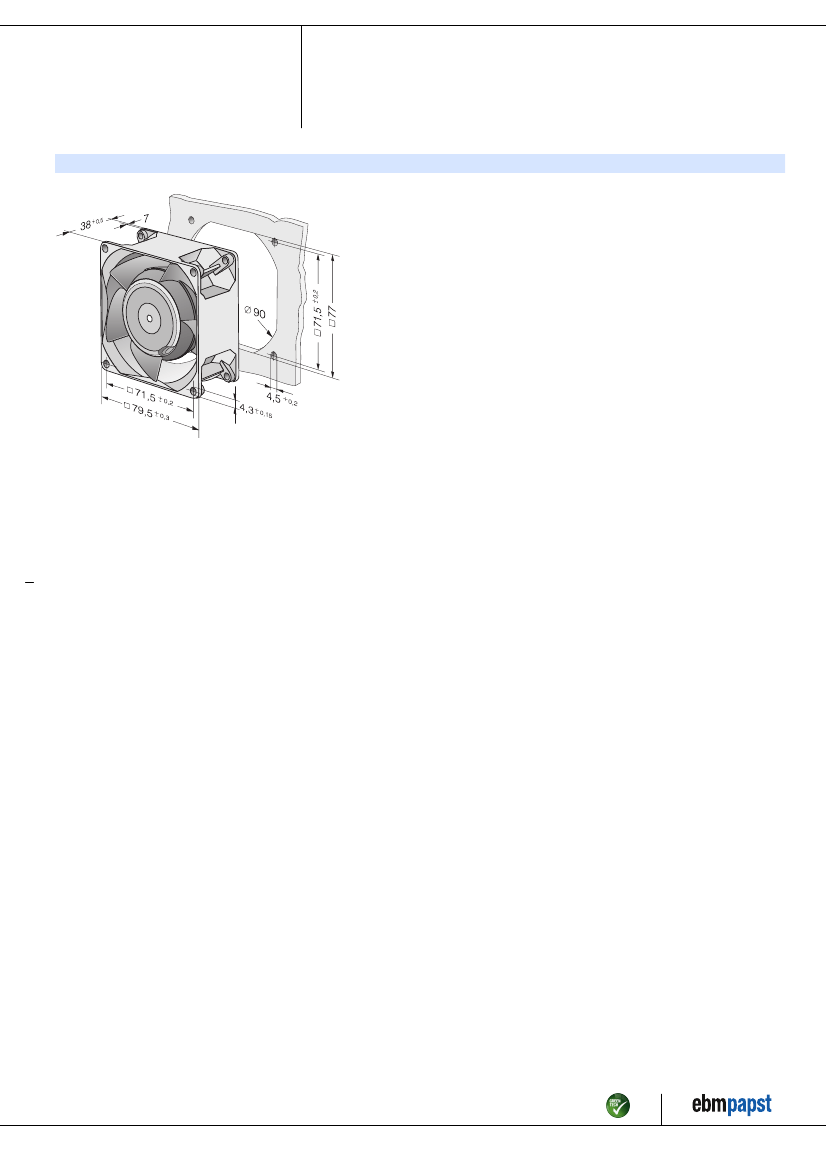

Product drawing
