2.92mm Male to 2.4mm Male Precision Cable
36 Inch Length Using 095 Series Coax, RoHS
TECHNICAL DATA SHEET
PE35606-36
2.92mm Male to 2.4mm Male Precision Cable 36 Inch Length Using 095 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
2.92mm Male
2.4mm Male
095 Series
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Electrical Specification Notes:
DC to 40
50
1.4:1
69.5
90
1,200
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
.
095 Series
-48 to +204
36 [914.4]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
2
PTFE
FEP
0.095 [2.41]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
2.92mm Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.92mm Male to 2.4mm Male Precision Cable 36 Inch Length Using 095 Series Coax, RoHS
PE35606-36
PE35606-36 REV
1
2.92mm Male to 2.4mm Male Precision Cable
36 Inch Length Using 095 Series Coax, RoHS
TECHNICAL DATA SHEET
Body Material and Plating
Dielectric Type
Passivated Stainless Steel
Noryl
PE35606-36
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
2.4mm Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
Noryl
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
2.92mm Male to 2.4mm Male Precision Cable 36 Inch Length Using 095 Series Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
2.92mm Male to 2.4mm Male Precision Cable 36 Inch Length Using 095 Series Coax, RoHS
PE35606-36
URL:
http://www.pasternack.com/2.92mm-male-2.4mm-male-095-series-cable-assembly-pe35606-36-p.aspx
PE35606-36 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
PE-LL095P
PE35606-36

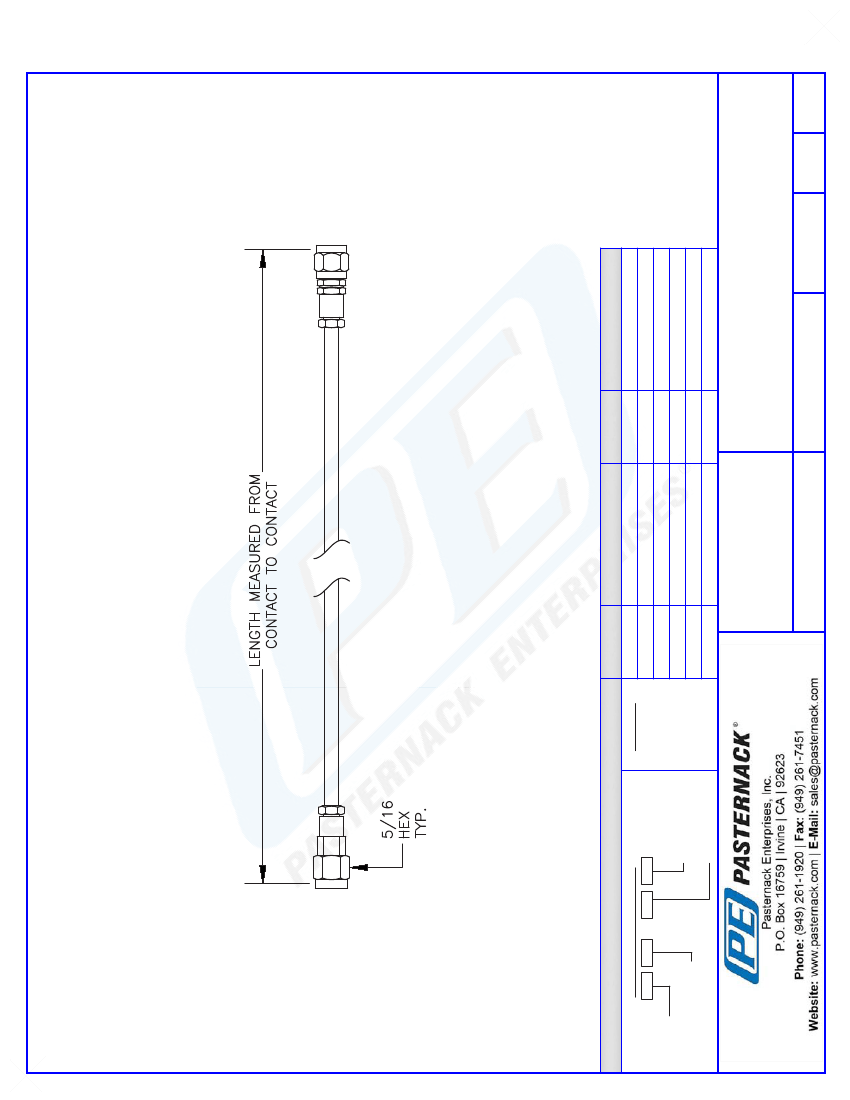

CAD Drawing
2.92mm Male to 2.4mm Male Precision Cable 36 Inch
Length Using 095 Series Coax, RoHS
PE35606-36 REV
2.92mm
MALE
2.4mm
MALE
Part # Ext.
Part Number Configuration
Examples
-12
yy
-
xx
uu
-24
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE35606
FSCM NO. 53919
CAD FILE
120611
SCALE N/A
SIZE A
2233
3
