GVXO-753DVCFREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-753DVCFREQ

GVXO-753DVCFREQ: DescriptionVCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size61KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GVXO-753DVCFREQ Overview

VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT

GVXO-753DVCFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TRISTATE ENABLE/DISABLE FUNCTION
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	120 ppm
frequency stability	25%
JESD-609 code	e4
linearity	10%
Manufacturer's serial number	GVXO-753
Installation features	SURFACE MOUNT
Maximum operating frequency	47 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.8mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	GOLD

Preview

Download Datasheet

View All

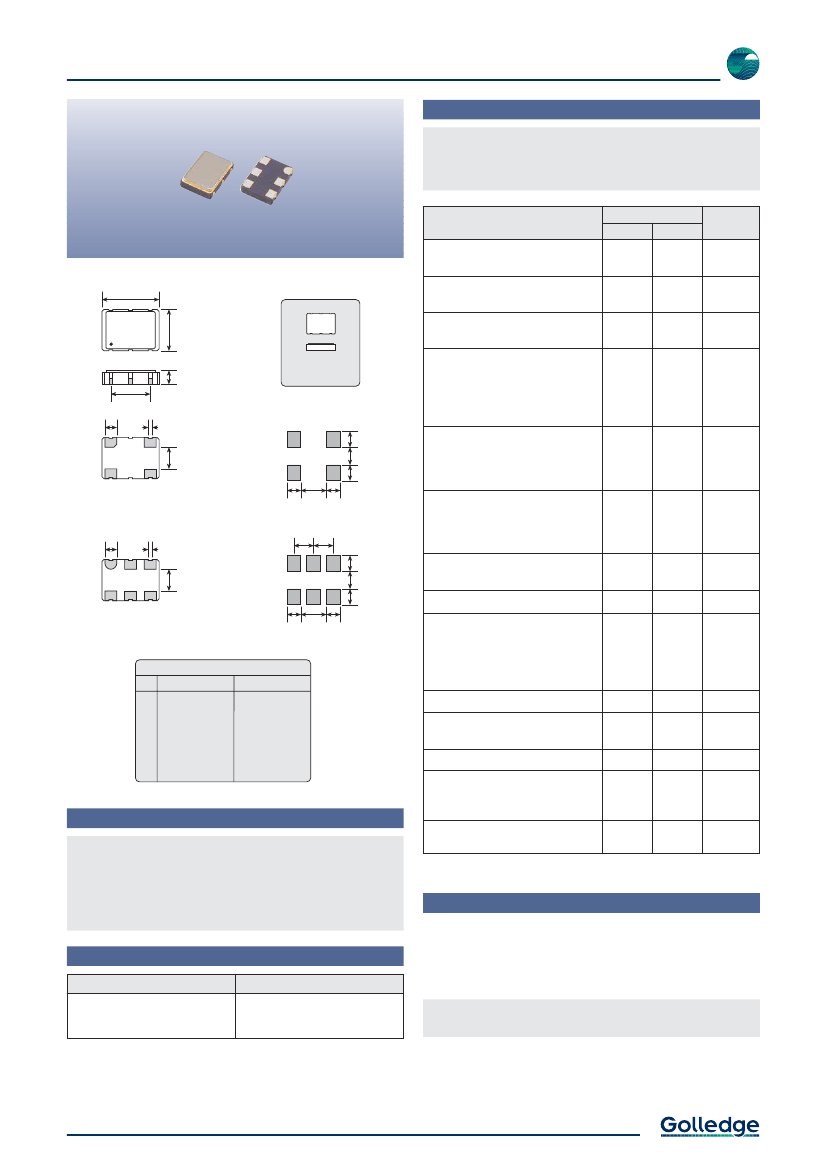

3.3V VCXO

Specifications

GVXO-753

GVXO-753D: 4 pads, No Enable / Disable

GVXO-753F: 6 pads, Enable / Disable function

Parameters

Package:

7.20

(max)

Variant

Option

Codes

4 pads, 5.08mm pitch

6 pads, 2.54mm pitch

Frequency range:

1.5440 ~ 47.0MHz

5.20

(max)

Voltage control:

+1.65V ±1.50V, 10% linearity

Frequency pullability (min):

±50ppm

±100ppm

±120ppm

Other

Frequency stability (max):

±50ppm

±25ppm

Other

Operating temperature range:

-10 to +70°C

-40 to +85°C

Other

2.00

2.20

2.00

1.80 3.28 1.80

TOP VIEW

CONNECTION

1.80

(max)

5.08

1.40

0.60

2.60

ACTUAL SIZE

SOLDER PAD LAYOUTS

2.00

2.20

2.00

specify

GVXO-753D

1.80 3.28 1.80

TOP VIEW

1.40

0.60

2.60

2.54 2.54

specify

GVXO-753F

Storage temperature range:

-40 to +85°C

Supply voltage (V

+3.3V (±5%)

Supply current:

10mA max (1.0 ~ 20.0MHz)

15mA max (>20.0 ~ 30.0MHz)

20mA max (>30.0 ~ 40.0MHz)

25mA max (>40.0MHz)

Driving ability:

15pF CMOS

PAD

Variant D

Control voltage

Ground

Output

Supply

Variant F

Control voltage

Enable/Disable

Ground

Output

Not connected

Supply

Logic levels:‘0’

level = 10%V

max

‘1’ level = 90%V

min

Waveform symmetry:

Scale 2:1

45:55 max

Features

Rise / fall time (10%~90%V

10ns max (2.0 ~ 10.0MHz)

6ns max (>10.0MHz)

Enable / disable function:

Tristate (control via pad 2)

Standard.

Optional - Please specify required code(s) when ordering

3.3V supply

Low cost for volume applications

Enable / disable tristate function (6-pad)

Ordering Information

Product + option codes + frequency

eg:

GVXO-753D/SC 16.384MHz

±100ppm pullability, ±25ppm stability

GVXO-753F/VB 35.3280MHz

±120ppm pullability, ±50ppm stability

Option codes must be included to fully specify a model.

Option code X (eg GVXO-753F/X) denotes a custom spec.

Available on T&R - 1k pcs per reel.

Refer to our website for T&R and soldering details.

Enable / Disable Function

Input (pad 2)

Open

‘1’ level

‘0’ level

Output (pad 4)

Enabled

High Impedance

Tel:

+44 1460 256 100

05 Jul 2004

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com

GVXO-753DVCFREQ Related Products

	GVXO-753DVCFREQ	GVXO-753FVCIFREQ	GVXO-753FVCFREQ	GVXO-753DVCIFREQ	GVXO-753FVBFREQ	GVXO-753DVBFREQ	GVXO-753FVBIFREQ	GVXO-753DVBIFREQ
Description	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT	VCXO, CLOCK, 1.544 MHz - 47 MHz, CMOS OUTPUT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics	Golledge Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION	TRISTATE ENABLE/DISABLE FUNCTION
Maximum control voltage	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V
Minimum control voltage	0.15 V	0.15 V	0.15 V	0.15 V	0.15 V	0.15 V	0.15 V	0.15 V
maximum descent time	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm	120 ppm
frequency stability	25%	25%	25%	25%	50%	50%	50%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
linearity	10%	10%	10%	10%	10%	10%	10%	10%
Manufacturer's serial number	GVXO-753	GVXO-753	GVXO-753	GVXO-753	GVXO-753	GVXO-753	GVXO-753	GVXO-753
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	47 MHz	47 MHz	47 MHz	47 MHz	47 MHz	47 MHz	47 MHz	47 MHz
Minimum operating frequency	1.544 MHz	1.544 MHz	1.544 MHz	1.544 MHz	1.544 MHz	1.544 MHz	1.544 MHz	1.544 MHz
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-10 °C	-40 °C	-10 °C	-40 °C	-10 °C	-10 °C	-40 °C	-40 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm	7.2mm x 5.2mm x 1.8mm
longest rise time	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns	10 ns
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
