WR-42 to 2.92mm Female Waveguide to
Coax Adapter 18 GHz to 26.5 GHz
TECHNICAL DATA SHEET
WR-42 to 2.92mm Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz
Configuration
Waveguide Interface
RF Connector
RF Connector Impedance
WR-42
2.92mm Female
50 Ohms
PE9812
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
18 to 26.5
1.4:1

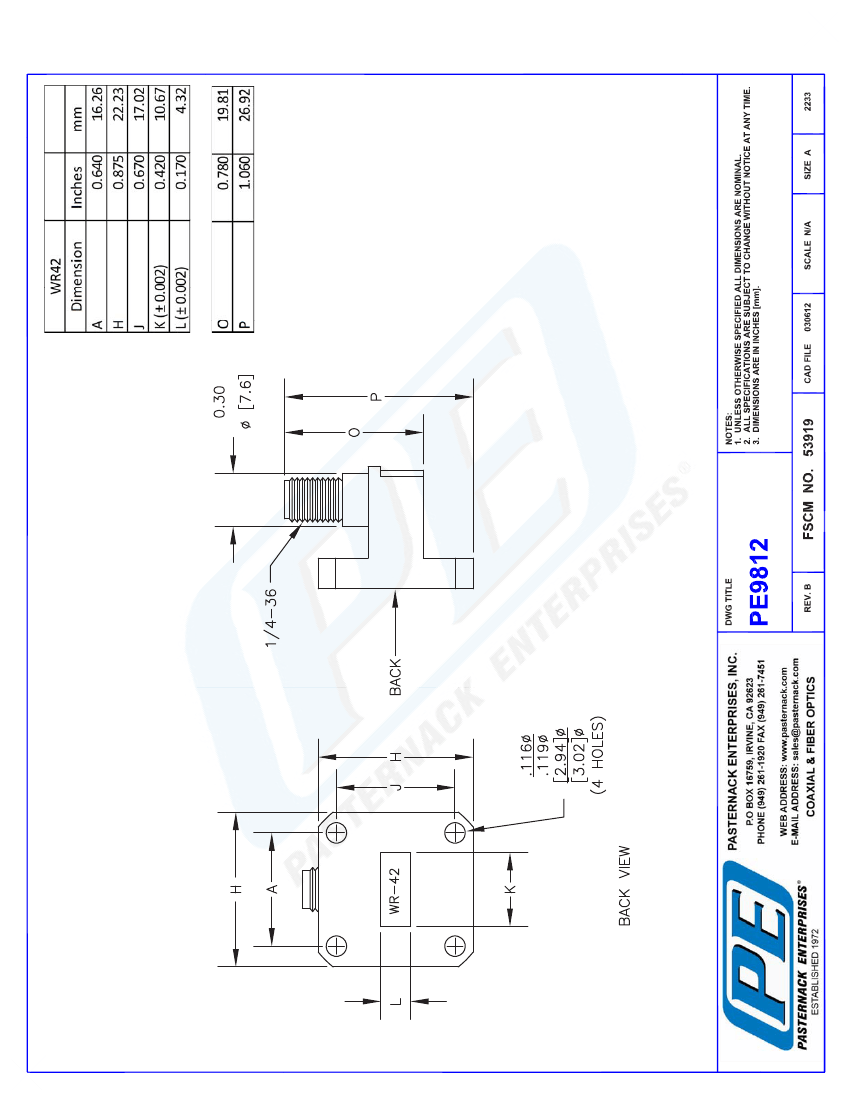

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.88 [22.35]
0.88 [22.35]
1.06 [26.92]
Waveguide Interface
Type
Body Material and Plating
RF Connector
Type
Body Material and Plating
WR-42
Aluminum
2.92mm Female
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
WR-42 to 2.92mm Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-42 to 2.92mm Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz PE9812
URL:
http://www.pasternack.com/wr-42-sma-female-waveguide-coax-adapter-18-ghz-26.5-ghz-pe9812-p.aspx
PE9812 REV
1
