WR-51 to SMA Female Waveguide to Coax
Adapter 15 GHz to 22 GHz
TECHNICAL DATA SHEET
WR-51 to SMA Female Waveguide to Coax Adapter 15 GHz to 22 GHz
Configuration
Waveguide Interface
Flange Design
RF Connector
WR-51
WR
SMA Female
PE9828
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
15 to 22
1.3:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.32 [33.53]
1.32 [33.53]
0.75 [19.05]
Waveguide Interface
Type
Body Material and Plating
RF Connector
Type
WR-51
Aluminum
SMA Female
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
WR-51 to SMA Female Waveguide to Coax Adapter 15 GHz to 22 GHz from Pasternack Enterprises has same day ship-
ment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are
part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-51 to SMA Female Waveguide to Coax Adapter 15 GHz to 22 GHz PE9828
URL:
http://www.pasternack.com/wr-51-sma-female-waveguide-coax-adapter-15-ghz-22-ghz-pe9828-p.aspx
PE9828 REV
1
PE9828

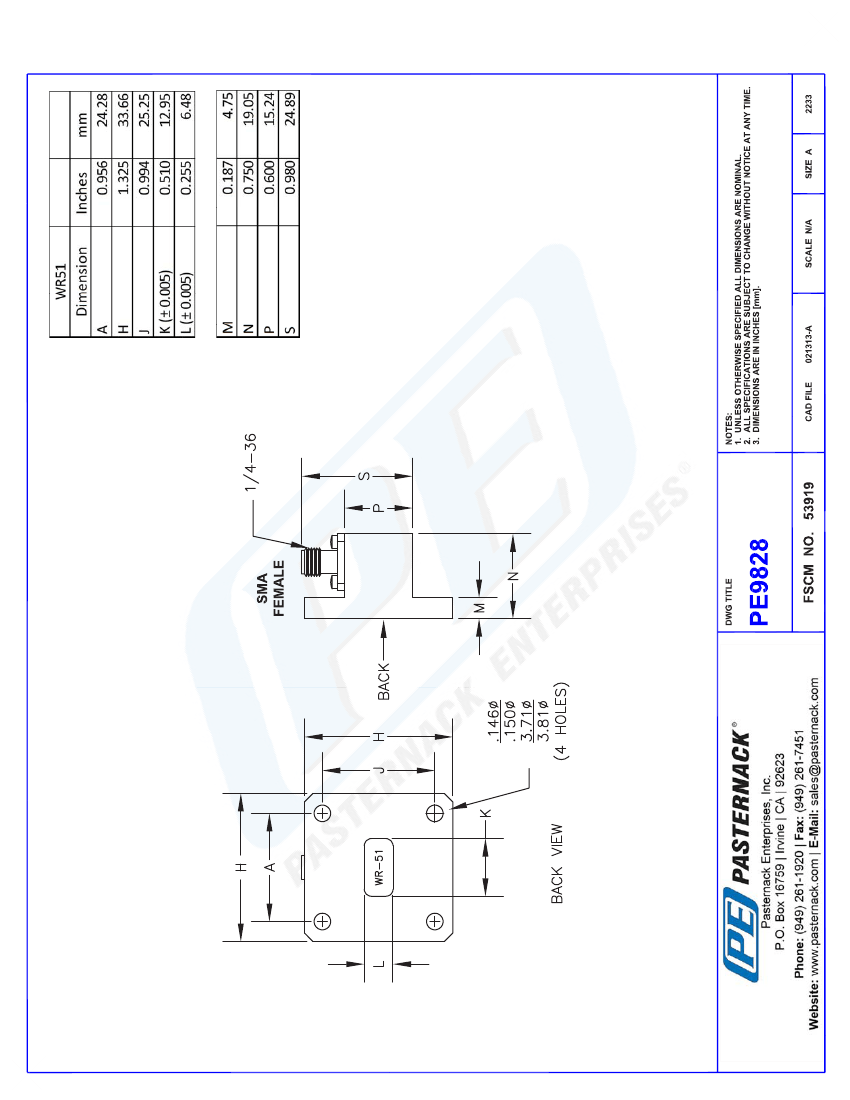

CAD Drawing
WR-51 to SMA Female Waveguide to Coax Adapter 15 GHz to 22 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE9828 REV
2
