WR-42 to SMA Female Waveguide to Coax
Adapter 18 GHz to 26.5 GHz
TECHNICAL DATA SHEET
WR-42 to SMA Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz
Configuration
Waveguide Interface
Flange Design
RF Connector
Body Style
WR-42
WR
SMA Female
End Launch
PE9844
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
18 to 26.5
1.3:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.875 [22.23]
0.875 [22.23]
0.937 [23.8]
Waveguide Interface
Type
Body Material and Plating
RF Connector
Type
WR-42
Aluminum
SMA Female
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
WR-42 to SMA Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz from Pasternack Enterprises has same day ship-
ment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are
part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
WR-42 to SMA Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz PE9844
URL:
http://www.pasternack.com/wr-42-sma-female-end-launch-waveguide-coax-adapter-18-ghz-26.5-ghz-pe9844-p.aspx
PE9844 REV
1
PE9844

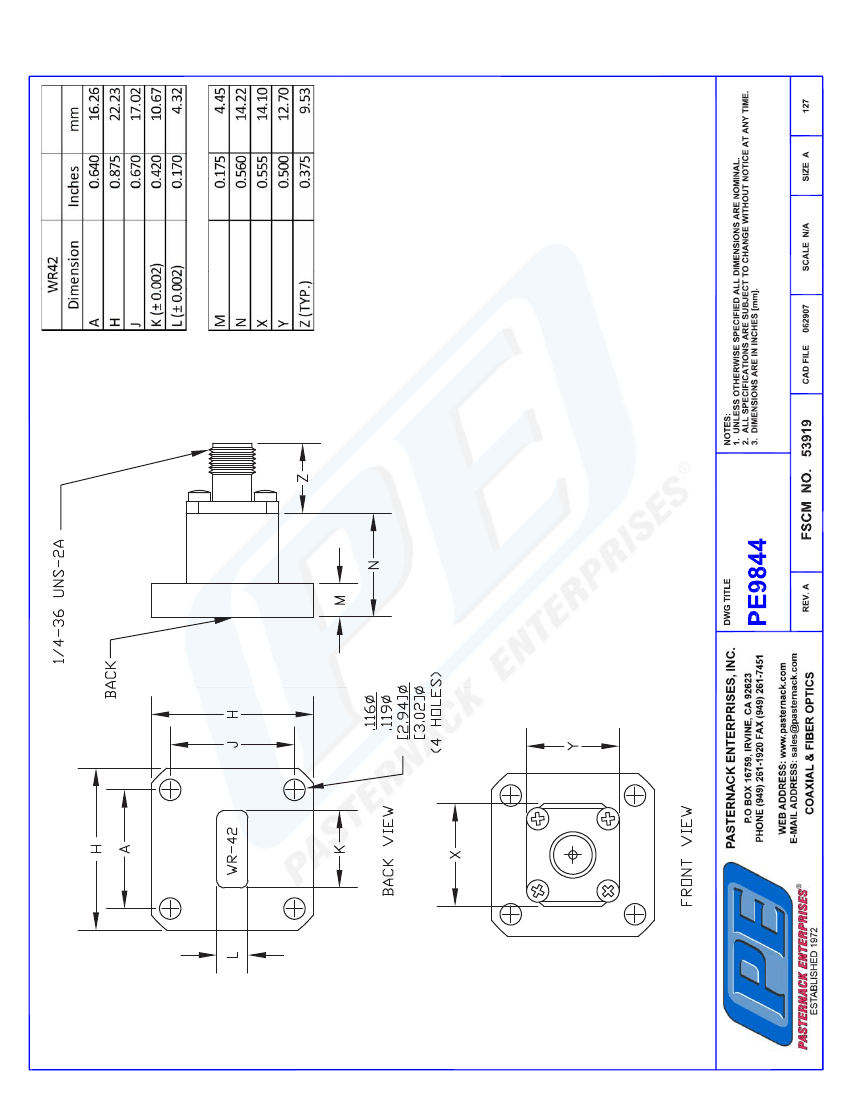

CAD Drawing
WR-42 to SMA Female Waveguide to Coax Adapter 18 GHz to 26.5 GHz
