BB02-AK142-K03-000000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB02-AK142-K03-000000

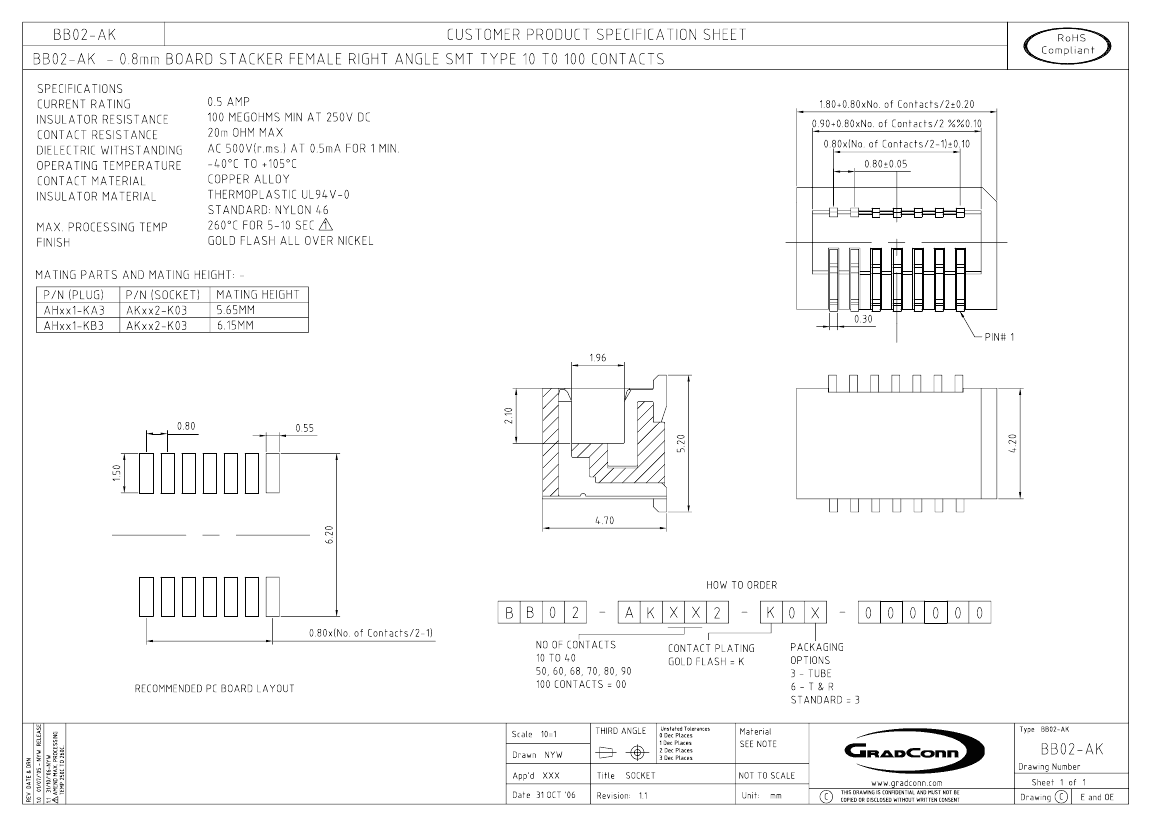

BB02-AK142-K03-000000: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-AK142-K03-000000 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug

BB02-AK142-K03-000000 Parametric

Parameter Name	Attribute value
Maker	GradConn Ltd
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, TUBE PACKAGING
body width	0.185 inch
subject depth	0.165 inch
body length	0.291 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	750VAC V
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-AK
Plug contact pitch	0.031 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

Preview

Download Datasheet

View All

BB02-AK142-K03-000000 Related Products

	BB02-AK142-K03-000000	BB02-AK162-K03-000000	BB02-AK182-K03-000000	BB02-AK242-K03-000000
Description	Board Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 18 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug	Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Plug
Maker	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT, TUBE PACKAGING	ROHS COMPLIANT, TUBE PACKAGING	ROHS COMPLIANT, TUBE PACKAGING	ROHS COMPLIANT, TUBE PACKAGING
body width	0.185 inch	0.185 inch	0.185 inch	0.185 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	0.291 inch	0.323 inch	0.354 inch	0.449 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BB02-AK	BB02-AK	BB02-AK	BB02-AK
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	16	18	24
