SMA Female to TNC Female Adapter
TECHNICAL DATA SHEET
SMA Female to TNC Female Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
SMA Female
MIL-STD-348
TNC Female
MIL-STD-348
Standard
Straight
PE9079
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 11
50
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C

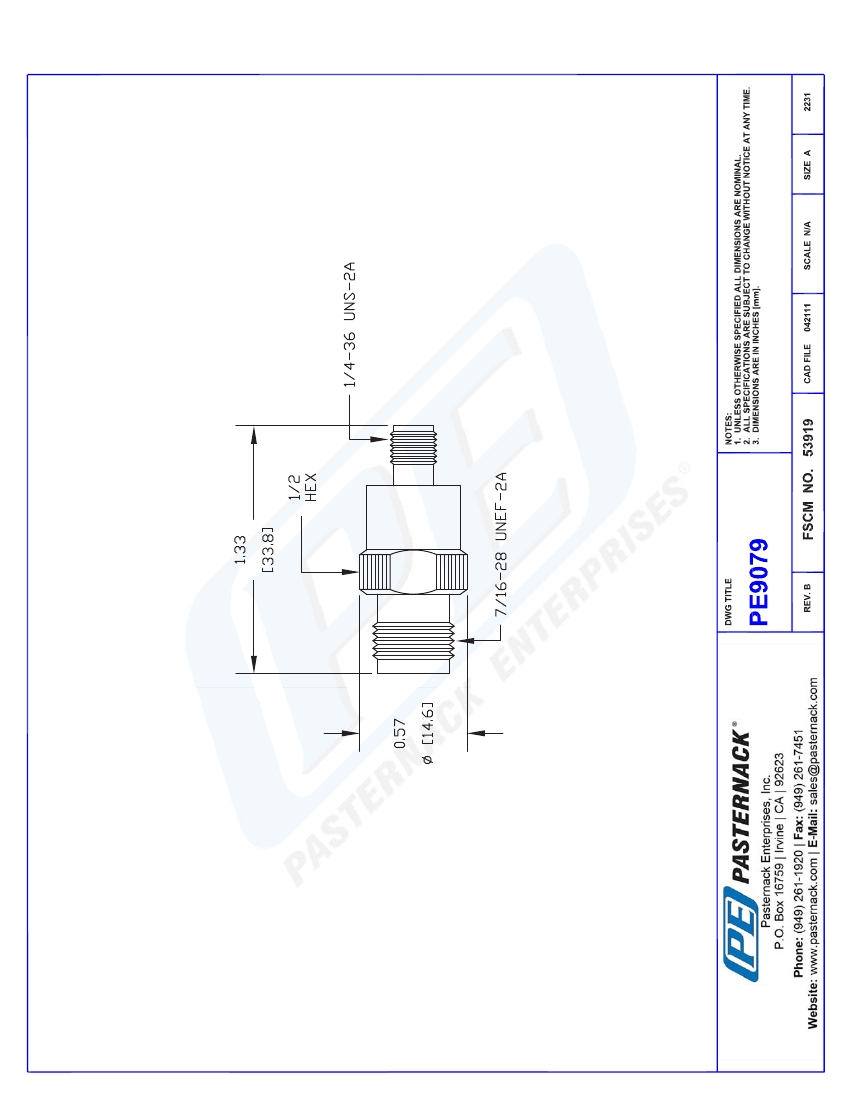

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.32 [33.53]
0.57 [14.48]
Teflon
SMA Female
Beryllium Copper, Gold
Brass, Nickel
TNC Female
Beryllium Copper, Gold
Brass, Nickel
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-tnc-female-straight-adapter-pe9079-p.aspx
SMA Female to TNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9079 REV
1
