Hermetically Sealed BNC Female to BNC
Female Bulkhead Adapter
TECHNICAL DATA SHEET
Hermetically Sealed BNC Female to BNC Female Bulkhead Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
Mount Method
Isolated Ground / Hermetic
BNC Female
MIL-STD-348A
BNC Female
MIL-STD-348A
Standard
Straight
Bulkhead
Hermetically Sealed
PE9093
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.555 [39.5]
0.689 [17.5]
Teflon
BNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
BNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Hermetically Sealed BNC Female to BNC Female Bulkhead Adapter PE9093
PE9093 REV
1
Hermetically Sealed BNC Female to BNC
Female Bulkhead Adapter
TECHNICAL DATA SHEET

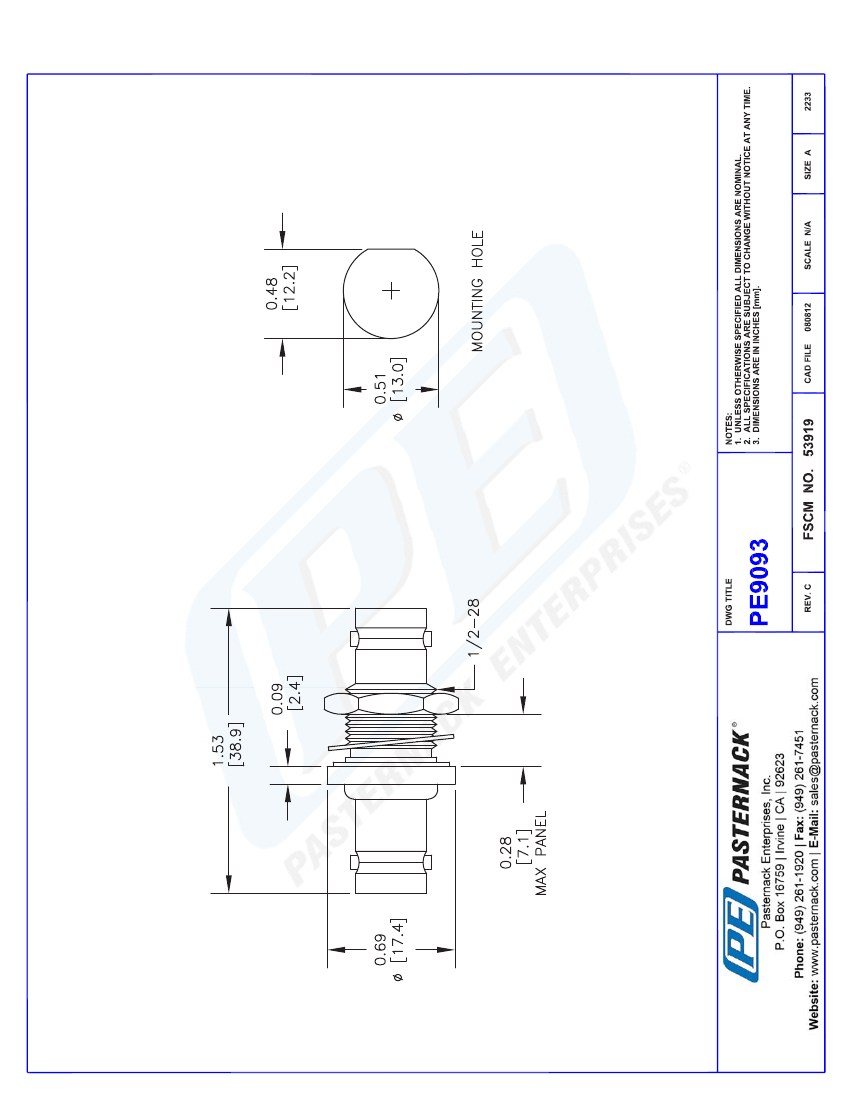

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9093
URL:
http://www.pasternack.com/bnc-female-bnc-female-straight-adapter-pe9093-p.aspx
Hermetically Sealed BNC Female to BNC Female Bulkhead Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
PE9093 REV
2
